Greenlee GATOR LS60L Operation Manual page 10

Setup and Operation (cont'd)

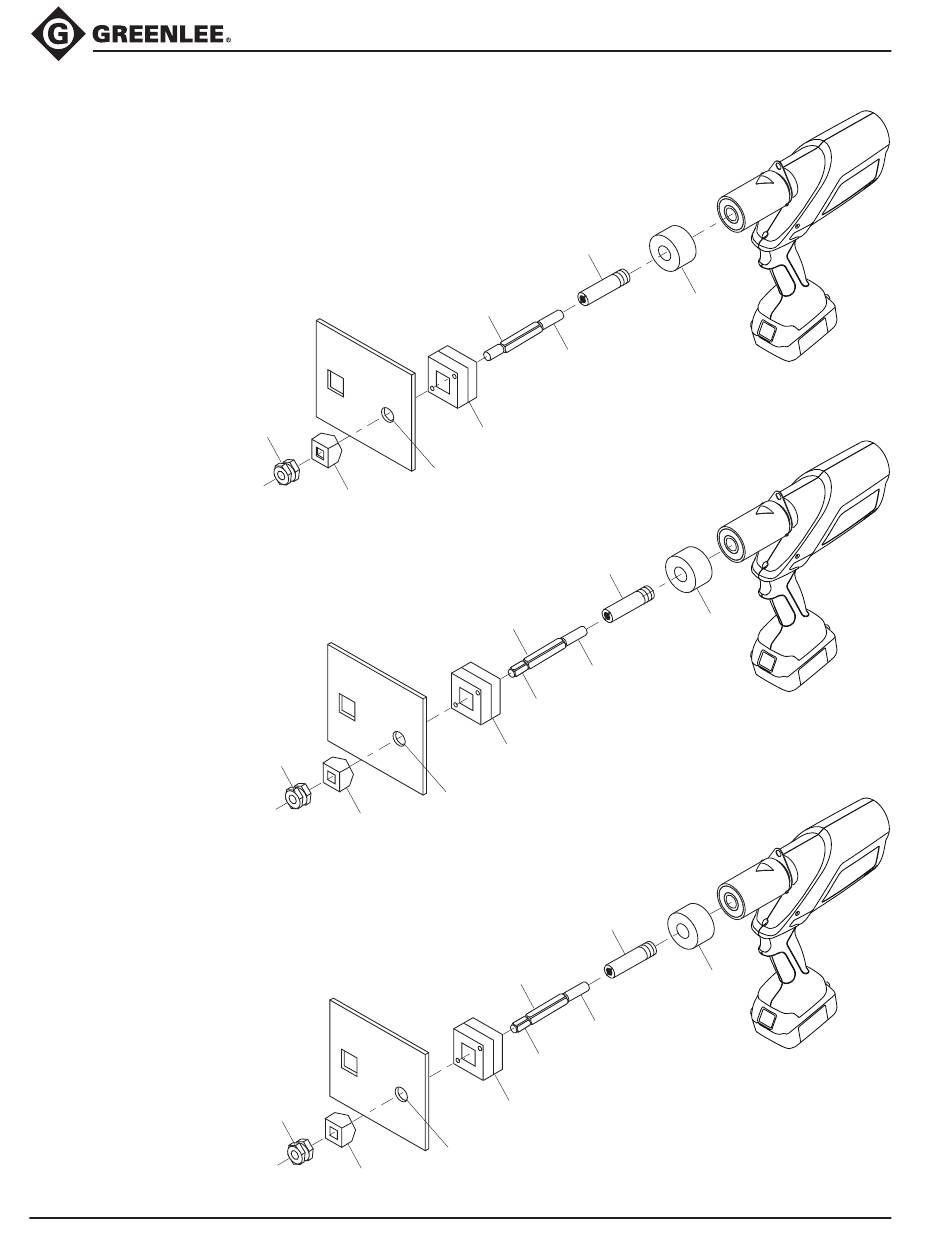

Punching with
1/2" (0.500" [12.7 mm]) square
7/16" x 7/8" (0.437" x 0.875" [11.1 mm x 22.2 mm]) rectangular
1/4" Counter Nut
Punching with
5/8" (0.625" [15.9 mm]) through 0.945" [24.0 mm] square
0.670" x 0.749" [17.0 mm x 19.0 mm]) rectangular
Punching with
1" [25.4 mm] square
0.750" x 1.140" [19.1 mm x 29.0 mm] through
1.250" x 1.380" [31.8 mm x 35.1 mm] rectangular
Greenlee / A Textron Company
05244
Punch
04638
3/8" Counter Nut
Punch
60258
1/2" Counter Nut
Punch
LS60L Battery-powered Punch Driver
60114
1/4" Adapter
60115
1/4" Draw Stud
End with
Long Threads
Die
Pilot Hole
33967
3/8" Adapter
60116
3/8" Draw Stud
End with Long Threads
Threads with Flats
Die
Pilot Hole
60167
1/2" Adapter
60117
3/8" Draw Stud
End with Long Threads
Threads with Flats
Die
Pilot Hole
