Greenlee GATOR LS60L Operation Manual page 11

Setup and Operation (cont'd)

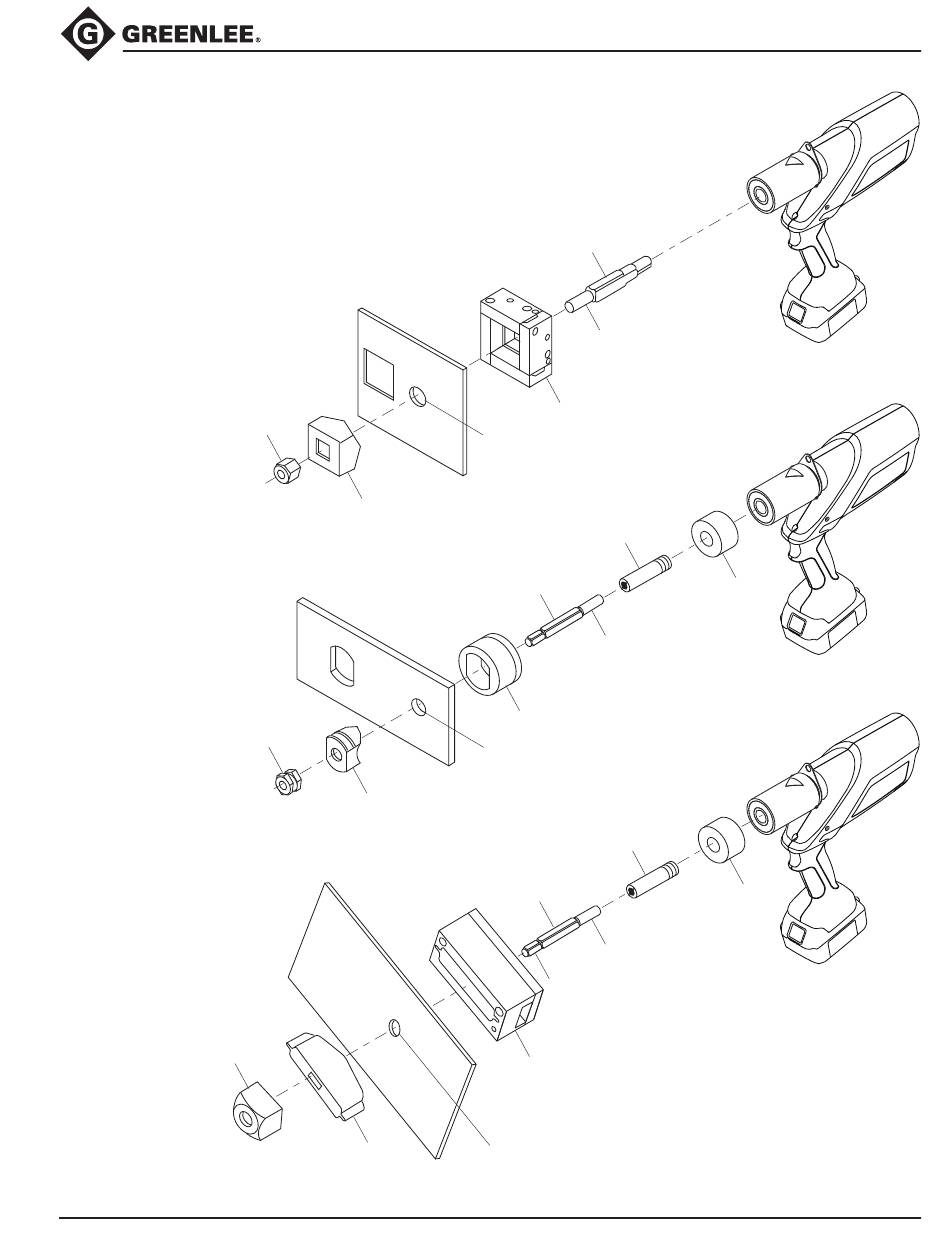

Punching with
1.811" [46.0 mm] through 2.677" [68.0 mm] square
1.312" x 2.625" [33.3 mm x 66.7 mm] rectangular
through 1.378" x 2.559" [35.0 mm x 65.0 mm] rectangular
60235
3/4" Counter Nut
Punching with
"D", Double "D",
and Key sizes
Counter Nut
Punching with
Electronic Connector
Panel Punches
04638
3/8" Counter Nut
Greenlee / A Textron Company
LS60L Battery-powered Punch Driver
Pilot Hole
Punch
Draw Stud
Die
Pilot Hole
Punch
34421
3/8" Draw Stud
Die
Punch
7/16" (11.1mm)
Pilot Hole
11
60118
3/4" Draw Stud
End with Long Threads
Die
Adapter
End with Long Threads
33967
3/8" Adapter
End with Long Threads
Threads with Flats
