Wyrestorm EXP-SP-0102-4K Quick Start Manual

Quickstart Guide

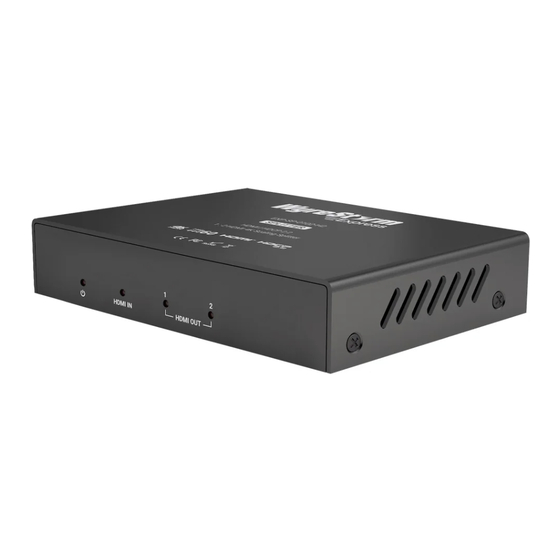

WyreStorm Express™ 1 x 2 HDMI Splitter
EXP-SP-0102-4K

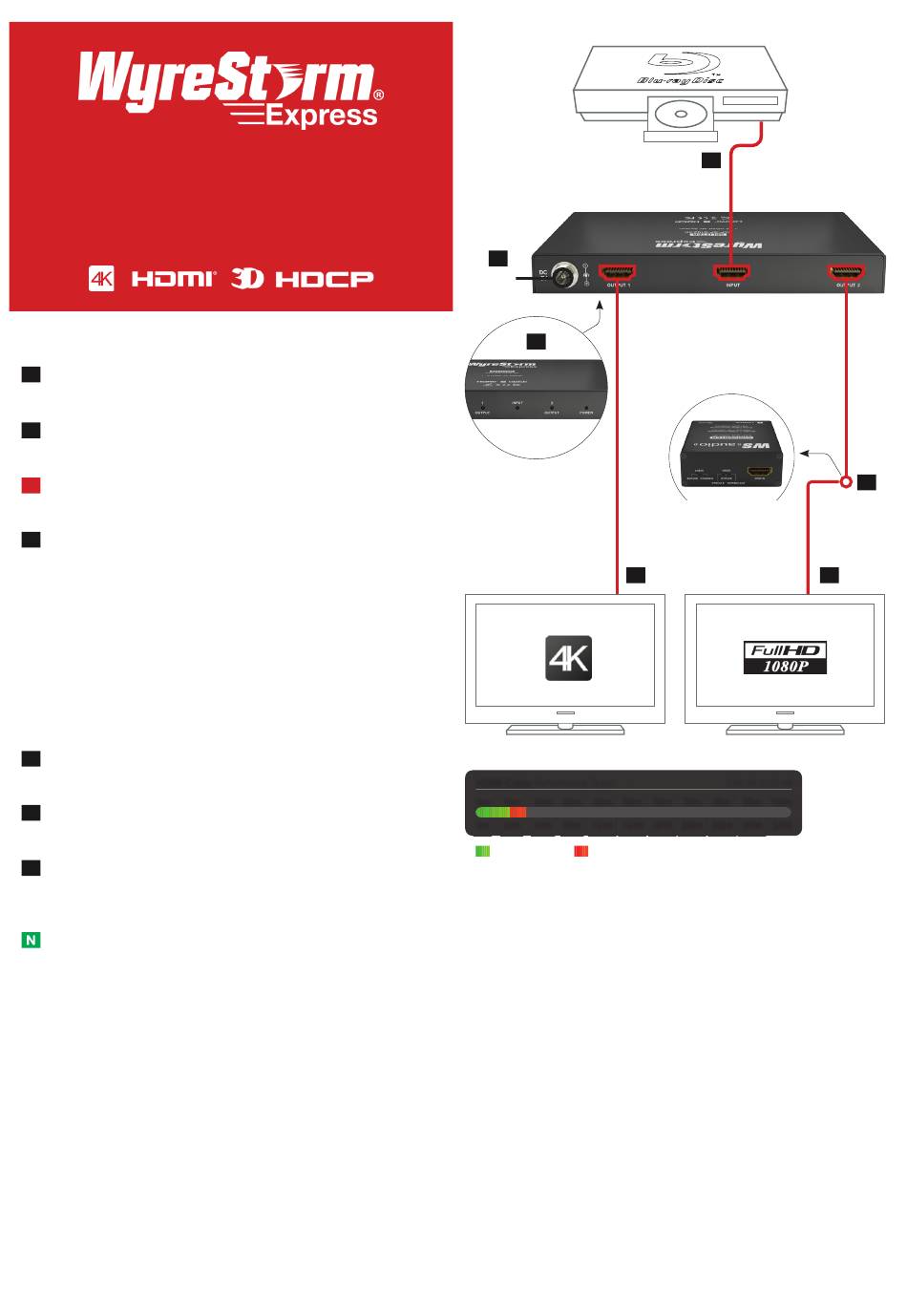

Setup and Operation
1
Connect an HDMI 4K or HD source to the input port of the EXP-
SP-0102-4K
2
Connect HDMI 4K or HD display device (LED/LCD screen,
projector) to output ports.
!
Care should always be taken when inserting/extracting HDMI
cables – do not force connections should resistance be felt.
3
Both 4K and 1080p HD sources and displays can be connected
within the same distribution without causing resolution conflict
by using the WyreStorm EXP-SCL-DAC-4K scaler with Dolby
downmixer between the EXP-SP-0102-4K splitter and connected
displays.
Transmission from a 4K source is scaled down to 1080p HD 24fps,
while a 1080p source signal is upscaled to 4K at 30Hz.
Visit wyrestorm.com for more information on 4K/HD scaling and
Dolby downmixing.
4
Insert the 5V power adaptor into EXP-SP-0102-4K Power port and
connect to wall outlet mains supply.
5
After ensuring all sources and displays are properly connected, turn
on mains power supply.
6
Check Power and HDMI Input/Output LED indicators on the
front panel are fully lit for correct connection. If not, check cable
connections or follow the troubleshooting overleaf.
Multiple splitters can be cascaded to expand distribution - see full
manual for details
SOURCE DEVICE
4
Mains
Power
6
2
DISPLAY OUTPUT
HDMI Cable Performance Guide
0m 10m 20m 30m 40m 50m
0ft 32ft 65ft 98ft 131ft 164ft
4K Transmission HD Transmission
NOTE: Maximum HDMI transmission distance
Input - 10m/33ft (4K & 1080p)
Output - 10m/33ft (4K), 15m/49ft (1080p)
1
EXP-SCL-DAC-4K
4K/HD scaler
DISPLAY OUTPUT
EXP-SP-0102-4K
60m 70m 80m 90m 100m
197ft 230ft 262ft 295ft 328ft
3
2
