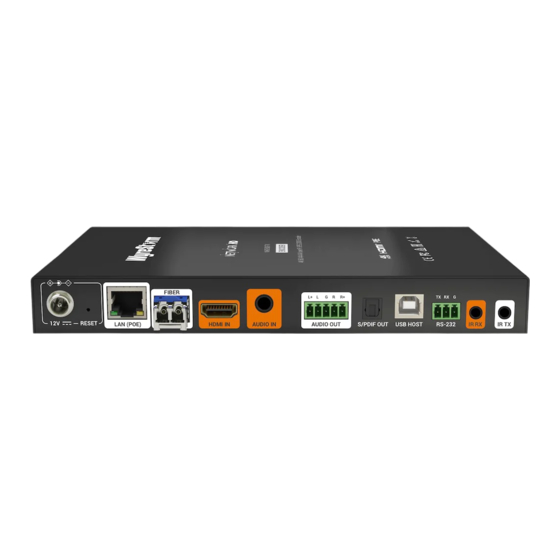

Wyrestorm NetworkHD NHD-500-TX Quick Start Manual

NetworkHD Full Product Range
WyreStorm recommends reading through this document in its entirety to become familiar with the product's
features prior to starting the installation process.
IMPORTANT! Installation Requirements
WyreStorm Documentation and Firmware
Download the following items from the product page on wyrestorm.com.
They are essential for accurate configuration and use of the NetworkHD
system.
• Latest NetworkHD Firmware
• Management Suite v2.3 or Higher
Network Switch Requirements
• WyreStorm highly recommends the use of switches listed in the NetworkHD Certified Switches. These switches have been verified by WyreStorm to meet the
requirements of a NetworkHD system.
• NetworkHD requires a Layer 2+ / Layer 3 managed switch network with support for Multicast & IGMP Snooping. Ensure that the switch being used supports
these features and that they are configured prior to connecting the NetworkHD system.
• Configure all network switches to the exact specifications contained in the WyreStorm Switch Configurations Guides prior to connecting the NetworkHD
system. This will ensure proper operation from startup.
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Installation Requirements
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for
best results.
RS-232 Wiring
The NetworkHD devices use a 3-pin or a 4-pin phoenix with no hardware flow control. Most control systems and computers are DTE where pin 2 is RX, this can
vary from device to device. Refer to the documentation for the connected device for pin functionally to ensure that the correct connections can be made.
WyreStorm Connector
Pin 1 TX (Transmit) ---> To ---> RX (Receive)
Pin 2 RX (Receive) ---> To ---> TX (Transmit)
Pin 3 G (Ground) ---> To ---> G (Ground)
Devices that use a 3-pin connection include:
NHD-110-TX NHD-500-RX
NHD-110-RX NHD-600-TRX
NHD-250-RX NHD-600-TRXF
NHD-400-DNT-TX NHD-610-TX
NHD-500-TX NHD-610-RX
Copyright © 2021 WyreStorm Technologies |
NetworkHD Quickstart Guide | 220121
3rd Party Device
wyrestorm.com
• NetworkHD Installation Guide
• NetworkHD Technical Reference Guide
• NetworkHD Certified Switches
• NetworkHD Switch Configuration Guides
• NetworkHD Switch Mapping Worksheet
• 3rd Party Control System Drivers
LAN Port Wiring
The NetworkHD 100, 200, 400 & 500 Series network port is a 1GbE link for
connection to a 1000BASE-T Ethernet switch. Refer to IEEE 802.3ab for
official guidance. Cables must be tested to 100MHz across the entire link.
1000BASE-T uses the IEC 60603-7 8P8C connector.
The NetworkHD 600 Series network port is a 10GbE link for connection to a
10GBASE-T Ethernet switch. Refer to IEEE 802.3an for official guidance.
Cables must be tested to 500MHz across the entire link. 10GBASE-T uses
the IEC 60603-7 8P8C connector.
WyreStorm Connector
Pin 1 12V DC Out
Pin 2 TX (Transmit)
Pin 3 RX (Receive)
Pin 4 G (Ground)
Devices that use a 4-pin connection include:
NHD-400-E-RX
NHD-400-RX
INT: +44 (0) 1793 230 343 | US: 844.280.WYRE (9973)
1 of 2
Quickstart Guide
3rd Party Device
No Connection Reserved
---> To ---> RX (Receive)
---> To ---> TX (Transmit)
---> To ---> G (Ground)
NHD-600-TX
NHD-600-RX
