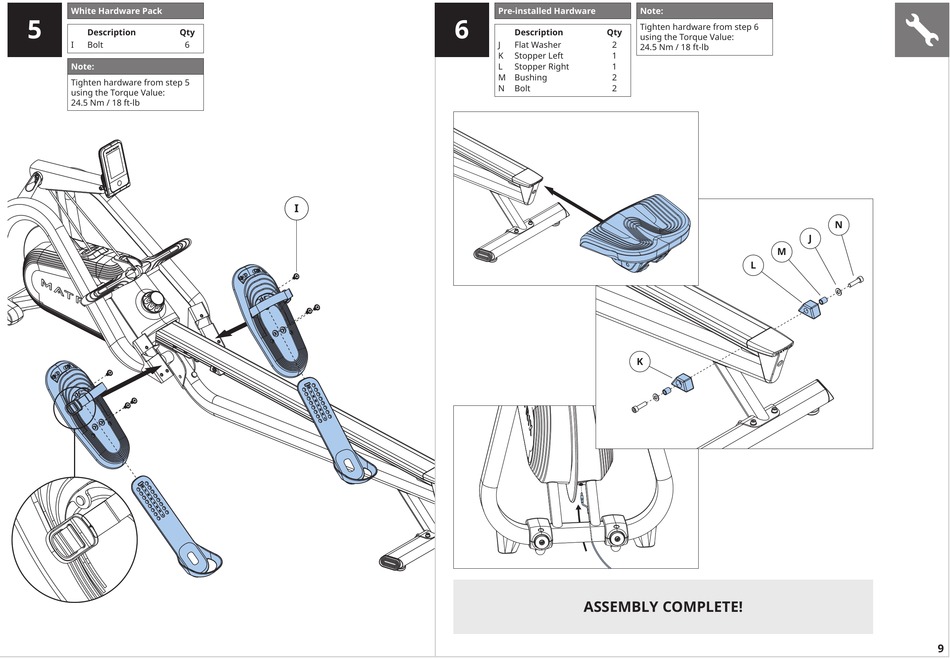

Matrix RXP Manual page 9

White Hardware Pack
5
Description Qty
I Bolt 6
Note:
Tighten hardware from step 5
using the Torque Value:
24.5 Nm / 18 ft-lb
6
I
Pre-installed Hardware Note:
Tighten hardware from step 6
Description Qty
using the Torque Value:
J Flat Washer 2
24.5 Nm / 18 ft-lb
K Stopper Left 1
L Stopper Right 1
M Bushing 2
N Bolt 2
K
ASSEMBLY COMPLETE!
N
J
M
L
9
