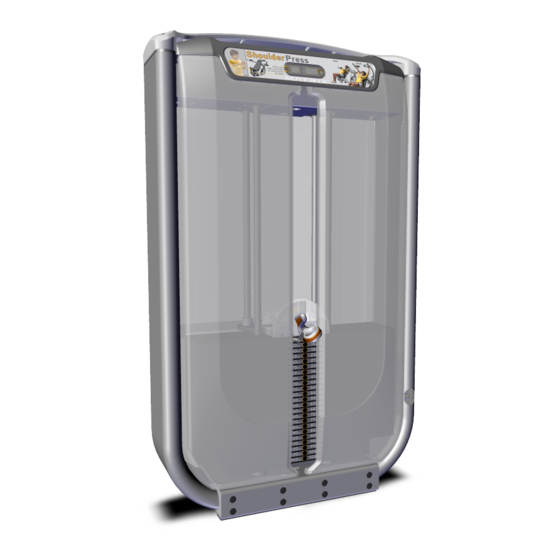

- Page 1 OWNERS MANUAL ULTRA Weight Stack...
-
Page 2: Table Of Contents
Table Of Contents Safety, General Care & Maintenence ........................3 Getting Started (Product Specifications) ......................5 Assembly Information .............................6 Markings ..................................7 Parts List ...................................8 Installation & Assembly Part 1 Weight Stack Assembly ........................9 Part 2 Add-A-Weight Adjustment ......................10 Part 3 Stop Collar Assembly ........................14 Part 4 Rep Counter Limit Switch Locations .................. -
Page 3: Safety, General Care & Maintenence
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use. - Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.
-
Page 5: Getting Started (Product Specifications)
GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST PRODUCT SPECIFICATIONS WARRANTY (Valid in USA only) Frame (not coatings) 10 years Weight stacks 5 years Pulleys 5 years Pivot bearings 5 years Any items not specified 3 years Labor (excluding upholstery/cables/grips) 3 years Upholstery/cables/grips/springs 1 year... -
Page 6: Assembly Information
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Matrix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. -
Page 7: Markings
MARKINGS WARNING LABEL LOCATIONS Rep Counter 400mm Warning Label The warning label is to be affixed in this location and on the upright that is opposite of the output pulley. -
Page 8: Parts List
Parts List DESCRIPTION M8 X 25L Socket Head Cap Screw Top Cap Left Front Shroud Right Front Shroud Rear Shroud... -
Page 9: Part 1 Weight Stack Assembly
ASSEMBLY PART 1: WEIGHT STACK DISASSEMBLY STEP 1 | WEIGHT STACK INSTRUCTIONS & NOTES DESCRIPTION QUANITY M8 X 50L SHC Top Cap Left Front Shroud Right Front Shroud Rear Shroud Machine must be assembled on a flat and level floor. View A View B •... -
Page 10: Part 2 Add-A-Weight Adjustment
ASSEMBLY PART 2: ADD-A-WEIGHT ADJUSTMENT STEP 1 | ADD-A-WEIGHT INSTRUCTIONS & NOTES Add-a-weights aren’t picked up when selected To adjust: 1. Remove add-a-weight cover by removing the four screws shown in the top view. 2. With add-a-weight cover off, loosen (2) screws on ratchet slide, position ratchet slide left or right to seat the threaded pin into the proper “valley “... - Page 11 ASSEMBLY PART 2: ADD-A-WEIGHT ADJUSTMENT STEP 2 | ADD-A-WEIGHT INSTRUCTIONS & NOTES Add-a-weights aren’t picked up when selected To ensure that the add- a-weight selector picks up all add-a-weights properly, the threaded adjustment bolt may need to be raised or lowered.
- Page 12 ASSEMBLY PART 2: ADD-A-WEIGHT ADJUSTMENT STEP 3 | ADD-A-WEIGHT INSTRUCTIONS & NOTES Indicator is misaligned...
- Page 13 ASSEMBLY PART 2: ADD-A-WEIGHT ADJUSTMENT STEP 3 | ADD-A-WEIGHT INSTRUCTIONS & NOTES Indicator is misaligned 5. With add-a-weight cover off, loosen (2) screws on slide & position left or right to align numbers on the selector to the cover window. 6.
-
Page 14: Part 3 Stop Collar Assembly
ASSEMBLY PART 3: STOP COLLAR ASSEMBLY STEP 1 | STOP COLLARS INSTRUCTIONS & NOTES "X" Machine Stop Collar Depth (“X”) Chest Press 115 mm (4.5”) Shoulder Press No Collars Leg Extension 113 mm (4.4”) Seated Leg Curl 103 mm (4.1”) Leg Press 80 mm (3.1”) Lat Pulldown... -
Page 15: Part 4 Rep Counter Limit Switch Locations
ASSEMBLY PART 4: LIMIT SWITCH ASSEMBLY STEP 1 | REP COUNTER LIMIT SWITCH INSTRUCTIONS & NOTES Assemble (3) sensors located per machine chart shown below. Thread zip ties through holes to secure cables Route wires in groove If necessary, adjust the proximity of the magnet by sliding magnet holder closer to sensors. Sensor Locations (Sensor Machine “A”... - Page 16 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 ULTRA Weight Stack Owners Guide rev.1.2 Copyright© 2014 Matrix Fitness...
