Summary of Contents for Matrix planet fitness ASCENT

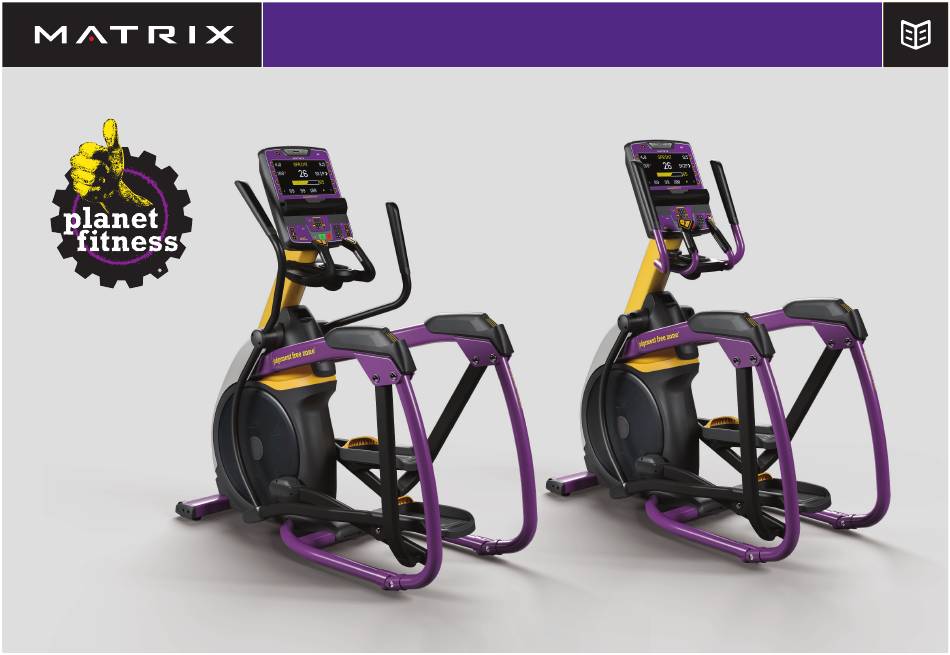

- Page 1 PERFORMANCE ASCENT TRAINER...
-
Page 2: Important Precautions
IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using Matrix exercise equipment, basic precautions should always be followed, including the following: Read all instructions before using this equipment. It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of all warnings and precautions. -
Page 3: Power Requirements
If the user does not follow these grounding instructions, comply may void the warranty. the user could void the Matrix limited warranty. 2. It is essential that this equipment is used only indoors in a climate controlled room. If... -
Page 4: Important Notes
ENGLISH ASSEMBLY UNPACKING TOOLS REQUIRED: Unpack the equipment where you will be using it. Place the carton F Torque Wrench on a level flat surface. It is recommended that you place a protective F 17mm Wrench covering on your floor. Never open box when it is on its side. F 6mm T-Wrench F 8mm Allen Wrench IMPORTANT NOTES... - Page 5 ENGLISH ASSEMBLY Hardware Screw (16mm) Hardware Hardware Socket Head Bolt Socket Head Bolt Flat Washer Flat Washer Hex Nut Screw Torque Value 70-90 Nm / 52-66 ft-lb...
- Page 6 ENGLISH ASSEMBLY Hardware Screw (M5-16mm) Hardware Spring Washer Socket Head Bolt (20mm) Socket Head Bolt Screw (M5-12mm) Flat Washer Socket Head Bolt (45mm) Hardware Socket Head Bolt Spring Washer LOWER BODY ASCENT Screw (ALB only) ASCENT TRAINER...
- Page 7 ENGLISH ASSEMBLY Hardware Note: Screw (12 mm) Be careful not to pinch any wires while Hardware tightening screw. Screw (16mm) Hardware Hardware Screw (16mm) Bolt (20mm) Bolt (12mm) LCB Communication Extension Power Wire TV Power Console Connect Wires Ethernet Coax Ground Wire ASSEMBLY COMPLETE...
-
Page 8: Before You Begin
ENGLISH BEFORE YOU BEGIN POWER If the equipment is powered by a power supply, the power must be plugged into the power jack, which is located in the front of the equipment near the stabilizer tube. Unplug cord when not in use. TRAINING AREA MOUNTING/DISMOUNTING THE EQUIPMENT Stand behind the equipment. -
Page 9: Workout Options
ENGLISH BEFORE YOU BEGIN WORKOUT OPTIONS Lower Body Ascent Shown Ascent Trainer Shown PROPER USAGE This equipment offers a variety of foot positions. Moving your foot LOWER BODY WORKOUT FULL BODY WORKOUT to the forward most position of the foot pad increases your step To focus on a lower body workout, hold For a full body workout, push height, which will create a feel similar to a step machine. -
Page 10: Maintenance Schedule
70.1” x 29.1” x 71.3” 70.1” x 29.1” x 71.3” * Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs. - Page 11 PREMIUM LED CONSOLE DESCRIPTION The Matrix machine is inspected before it is packaged. Carefully unpack the unit and dispose of the box material. Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
-
Page 12: Frame Serial Number
ENGLISH SERIAL NUMBERS Before proceeding, find the serial numbers located on barcode stickers and enter them in the spaces provided below. Use the information below when calling for service. CONSOLE SERIAL NUMBER FRAME SERIAL NUMBER (Located on back of the console) (Located on front lower frame) ADDITIONAL NOTES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. - Page 13 © 2021 Johnson Health Tech PERFORMANCE ASCENT TRAINER Rev 1.2 PF...
