3.4 Power supply
The IXrouter3 must be powered by an IEC/UL/EN/60950-1 certified Limited Power Supply (LPS)
or, for the United States, a Class 2 power supply. The LPS power supply is not included in the
package of the IXrouter
Power supply
Internal voltage protection
Input protection
Isolation
3.5 Wiring
Proper grounding and wiring of all electrical equipment are important to help ensure the optimum
operation of the IXrouter3 and to provide additional electrical noise protection for your
application.
The IXrouter3 comes with a female 4-pin plug-in connector with screw connection (type:
Weidmuller BL 5.08/04/180 SN BK BX). The optimal wire diameter is 1.5mm² (16AWG - 12AWG).
Connect the Shield pin of the IXrouter with the protective earth conductor (PE), min. core
diameter Cu 1.5 mm².
Wire size range
Wire strip length
Terminal screw torque
Max wire length
Min ground conductor
By default, the Digital Input is not configured and doesn't need to be wired. The digital input

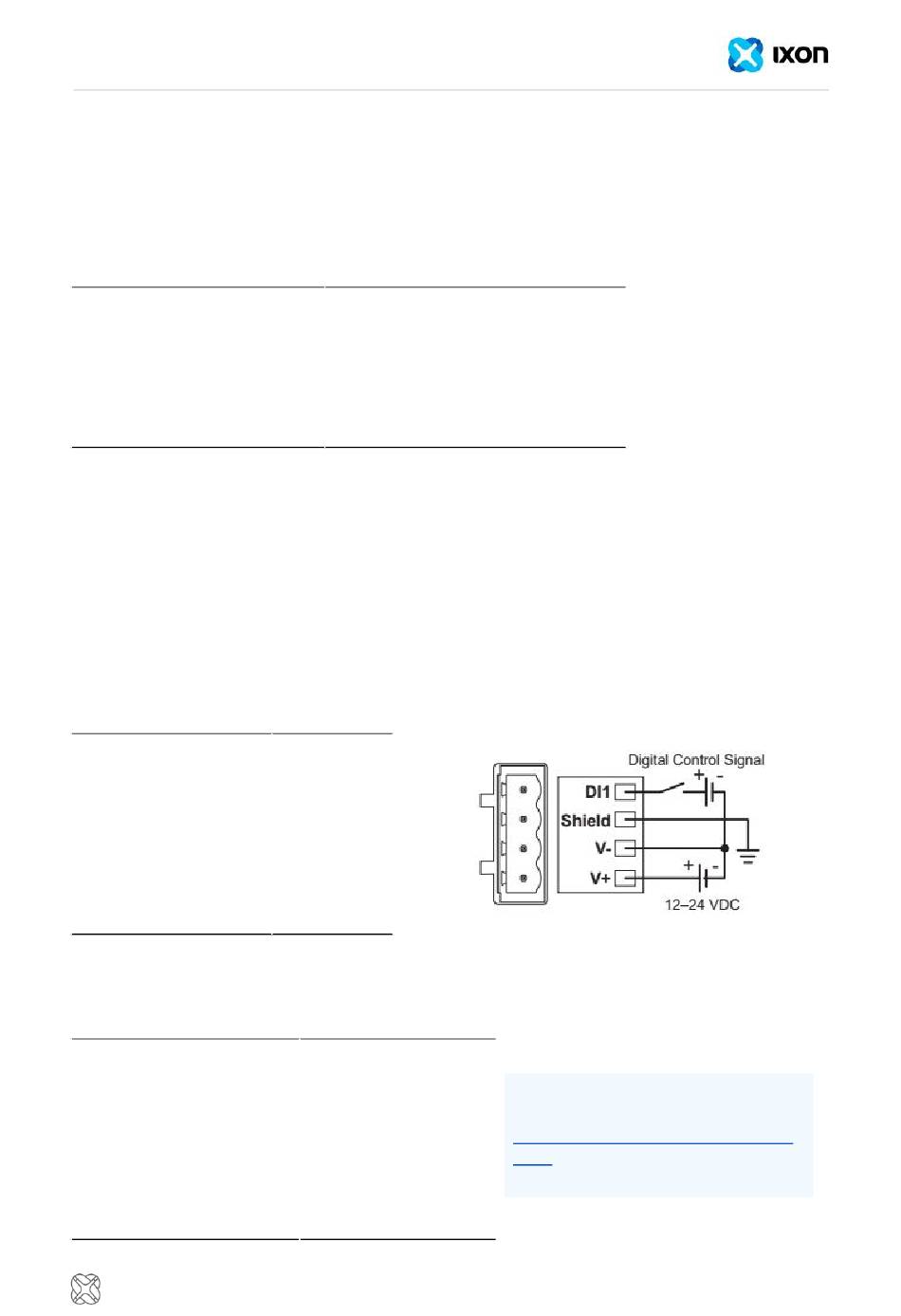

provides a way to locally manage IXrouter3's VPN connection (ON/OFF). The wiring is depicted in
the image above.
Type
Voltage range
Voltage range (OFF state)
Voltage range (ON state)
Current voltage (On state) 2-5 mA
www.ixon.cloud
3.
12-24 VDC +/- 20% LPS
29V max
Protected against polarity
1.5 kV
18 - 12 AWG
7 mm
0.4 Nm
3m
16 AWG
optocoupler
0-29 VDC
0-3 VDC
7-29 VDC
2A
inversion
More info
Take a look at our online article for
more detailed information on digital
input​ .
