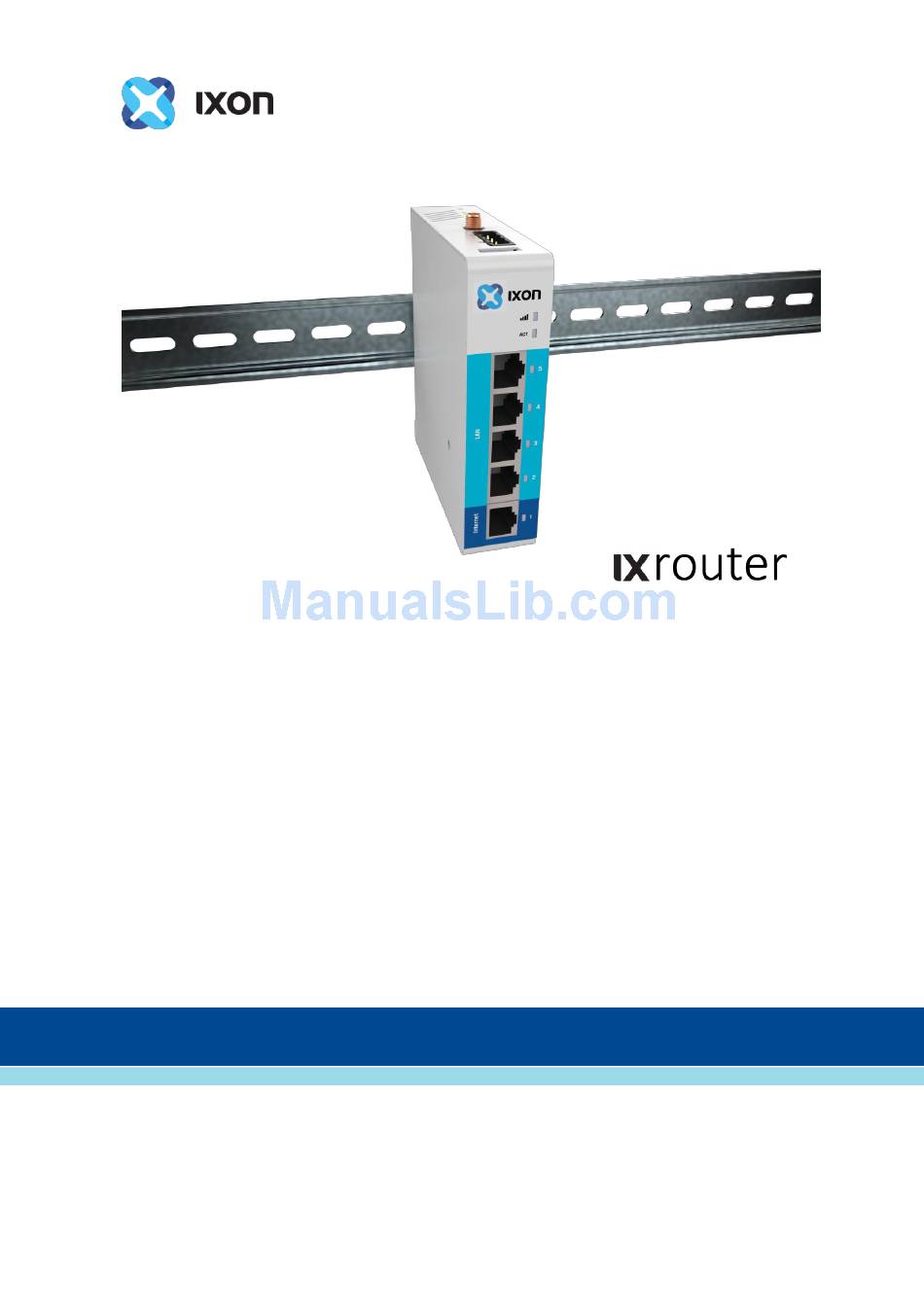

Page 1: Installation Guide
Installation Guide Cloud enable your machines... -
Page 2: Table Of Contents
Compatible accessories ........................5 Installation & Safety Information ......................6 Installation Recommendations ......................6 Power supply ............................7 Operation ..............................9 Configuring the IXrouter3 ........................9 LED Status Indicators ......................... 9 Resetting the IXrouter3 ........................10 Compliance ............................11 Certifications ............................. 11 FCC compliance.......................... -
Page 3: Product Summary
Product Summary Thank you for purchasing the IXrouter3. The IXrouter is the standard and most supported hardware for the IXON IXplatform. The IXrouter makes it convenient to remotely connect to your equipment, while the built-in firewall keeps your equipment safe from outside threats. -
Page 4: Hardware Information
Hardware Information The IXrouter3 is created with performance and a multitude of hardware capabilities in mind. Product Dimensions The IXrouter is designed to be easy to install on a standard DIN rail. The small size of the IXrouter allows you to make efficient use of space. -
Page 5: Label
Label The label can be found on the bottom right corner on the left side of the IXrouter. IXrouter3 label example Where: Product Code and Common Name Serial Number Media Access Control (MAC) Address International Mobile Equipment Identity (IMEI) number. Only available for variants containing a 3G or 4G module. -
Page 6: Installation & Safety Information
Installation & Safety Information Installing the IXrouter must be done by a professional Because IXON’s IXrouter is essentially a small computer, the IXrouter can be used for many different purposes. You can, for example, access, program and control industrial machines around the globe. -
Page 7: Power Supply
Installing a SIM card * * Only for variants with a 3G or 4G module The SIM card slot suits a standard SIM card size (2FF). Remove power The SIM card may only be removed or inserted when the IXrouter is powered down. To insert, push the SIM card into the slot until you feel a click, this is approximately 1mm inside the device. - Page 8 IXrouter and to provide additional electrical noise protection for your application. Digital input The function of the digital input is configurable via the IXplatform. Instructions can be found on support.ixon.co/docs/digital-input. The V- from the power supply is used as common ground. Type Optocoupler...
-
Page 9: Operation
USB memory stick. After supplying power to the IXrouter, insert this USB in the USB port. The IXrouter will register itself to the IXON IXplatform and set up a secure VPN connection. -
Page 10: Resetting The Ixrouter3
You have to delete the device via the IXplatform before you can register it again. Resetting the IXrouter3 The IXrouter can be reset to the factory default settings by pressing and holding the reset button on top for 10 seconds. -
Page 11: Compliance
Compliance Certifications The IXrouter3 has been extensively tested and has been certified for • CE certification For more information, see our Declaration of Conformance, REACH and RoHS declarations. • FCC verification • cULus listing (ID #E492721) For USA and Canada, see our Declaration of Conformance. - Page 12 Depending on the variant, the IXrouter3 contains FCC certified modules with the following IDs: Product Code Enclosed module FCC ID(s) IX2400 IX2401 XMR201510UC20 4G (Europe) IX2402 4G (America) IX2403 XMR201605EC25A 4G (China) IX2404 WiFi IX2410 QOQWF111 3G and WiFi IX2411 XMR201510UC20 &...
-
Page 13: Support
We are happy to help with any issues that may occur and make your experience as pleasant as possible. Please contact us by filling in the form or start a live chat at www.ixon.co/support. You can also send an e-mail directly at support@ixon.co. We will process your request as soon as possible. -
Page 14: Appendix A: Technical Specifications
Appendix A: Technical Specifications General Specifications Power supply voltage 12-24 VDC +/- 20% LPS Max input power 10W max Operating temperature -20°C to +65°C Relative humidity 10 to 95% non-condensing Operating altitude Up to maximum 2000m Storage temperature -20°C to +65°C Storage humidity 10 to 95% non-condensing Storage altitude... - Page 15 LTE additional specifications 4G-E protocols and frequencies FDD-LTE - B1, B3, B5, B7, B8, B20 (EMEA, Korea, Thailand, India) WCDMA - B1, B5, B8 GSM/GPRS/EDGE - 850, 900, 1800, 1900 MHz 4G-A protocols and frequencies FDD-LTE - B2, B4, B5, B12, B17 (USA, Canada) WCDMA - B2, B4, B5 GSM/GPRS/EDGE - 850, 1900 MHz...
