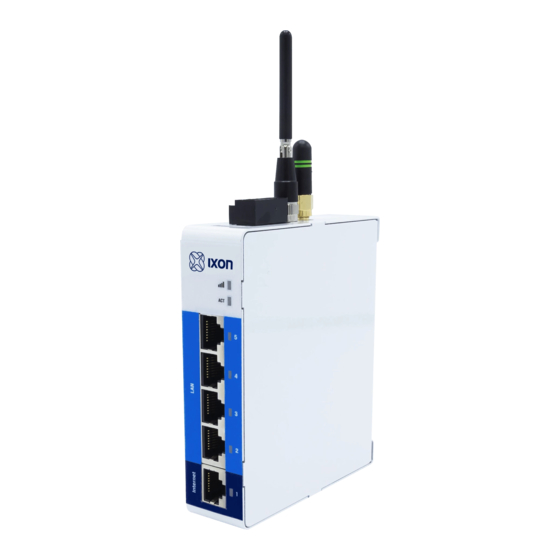

Ixon IXrouter3 Installation Manual
  1. Manuals
  2. Brands
  3. Ixon Manuals
  4. Network Router
  5. IXrouter3 IX2400
  6. Installation manual

Ixon IXrouter3 Installation Manual

Hide thumbs Also See for IXrouter3:
Table of Contents

Advertisement

Quick Links

IXrouter3
Installation Manual
Version 4.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IXrouter3 and is the answer not in the manual?

Questions and answers

Related Manuals for Ixon IXrouter3

Summary of Contents for Ixon IXrouter3

  • Page 1 IXrouter3 Installation Manual Version 4.7...

  • Page 2: Table Of Contents

    3.3 Installing a SIM card 3.4 Power supply 3.5 Wiring 4. Operation 4.1 Configure the IXrouter3 4.2 The IXrouter3 local web interface 4.3 LED status indicators 4.4 Reset to factory default 5. Connectivity requirements (for local IT) 5.1 Overview 5.2 Servers and DNS requests 5.3 MAC or IP address filter...

  • Page 3: Introduction

    firewall keeps your equipment safe from outside threats. Configuration is as easy as inserting a USB flash drive, which contains your configuration file, into the IXrouter's USB port. The configuration file can be generated from the [Tools] page in the IXON Cloud Fleet Manager app.

  • Page 4: Product Overview

    2 Product overview Seamlessly integrated with the IXON Cloud, the IXrouter is the fastest and safest way to connect your machine to the cloud. 2.1 Product family The IXrouter3 is available in several variations. No matter your situation, you can always connect your machine to the cloud.

  • Page 5: Hardware Overview

    2.3 Hardware overview The IXrouter3 is created with performance and a multitude of hardware capabilities in mind. Figure one, depicted below gives an overview of the hardware functionalities of the IXrouter3.
  • Page 6 Figure 2: IXrouter3 label (can be found on the left side of the router) The label depicted in figure 2 shows some very important information on your specific IXrouter3. On the right side of the label you can find information on certifications, the model and the serial number (s/n).

  • Page 7: Specifications

    2.4 Specifications The specifications below are applicable for all IXrouter3 models. The 4G/LTE and Wi-Fi models each have additional specifications, listed separately. General specifications Description Power supply (recommended) 12-24 VDC +/- 20% LPS 2A Power consumption IX2400: 2.5W idle, 10W max...
  • Page 8 Speed LTE-FDD - Max 150Mbps (DL)/Max 50Mbps (UL) (Max. download/upload) LTE-TDD - Max 130Mbps (DL)/Max 30Mbps (UL) DC-HSDPA - Max 42Mbps (DL) HSUPA - Max 5.76Mbps (UL) WCDMA - Max 384Kbps (DL)/Max 384Kbps (UL) EDGE - Max 296Kbps (DL)/Max 236.8Kbps (UL) GPRS - Max 107Kbps (DL)/Max 85.6Kbps (UL) SIM size 2FF (Standard SIM Card)

  • Page 9: Dimensions

    2.5 Dimensions The IXrouter3 is designed to be easily installed on a standard DIN rail. The small size of the IXrouter3 allows you to make efficient use of space. (Unit of measurement: millimeter.) Figure 3: IXrouter3 dimensions...

  • Page 10: Installation

    You can, for example, access, program and control industrial machines around the globe. Do not use the IXrouter3 unless you’ve received proper training or have proper knowledge about the IXrouter3 and its capabilities. It is expected that the user is knowledgeable about networking settings and is aware of the potential consequences for your application.

  • Page 11: Installing And Removing From Din Rail

    3.2 Installing and removing from DIN rail The IXrouter3 can be easily installed on a standard DIN rail. (1) Hang the device on the rail and (2) push the unit down until you feel a click. To remove the unit, (A) pull/rotate the device up and (B) lift off the rail.

  • Page 12: Power Supply

    You have to use the 4-pin plug-in connector included in the IXrouter3 packaging when wiring the IXrouter3. Failing to do so is considered "improper use", meaning that any damages as a direct result of this are not covered by warranty.
  • Page 13 By default, the Digital Input is not configured and doesn't need to be wired. The digital input provides a way to locally manage IXrouter3's VPN connection (ON/OFF). The wiring is depicted in the image above. Type optocoupler Voltage range 0-29 VDC...

  • Page 14: Operation

    4.2 The IXrouter3 local web interface You can use the IXrouter3’s local web interface to register the router if it’s not registered in the IXON Cloud, change the WAN, LAN and Firewall configurations locally or use the status overview as a more advanced alternative to the LED statuses.

  • Page 15: Led Status Indicators

    …. …. …. …. …. (re-insert USB flash drive to register pulses again) Previously registered to the IXON Cloud Blinking red 5 …. …. …. …. …. …. …. …. …. …. (remove from the IXON Cloud and pulses register again) Blinking blue 1 ….

  • Page 16: Reset To Factory Default

    5 seconds. The ACT LED will start blinking shortly after the reset button is pressed. Keep holding the button until the LEDs stop flashing and then let go. Wait for the IXrouter3 to restart, this can take up to 2 minutes. You can now reconfigure the IXrouter3 if desired.

  • Page 17: Connectivity Requirements (For Local It)

    5. Connectivity requirements (for local IT) The IXrouter uses outgoing ports to establish a secure connection to our IXON Cloud. This means there is no need to open any incoming ports in your firewall. 5.1 Overview Below is an overview of the outgoing ports and protocols that the IXrouter utilizes.

  • Page 18: Mac Or Ip Address Filter

    5.3 MAC or IP address filter Internet access may be granted to specific devices, based on their MAC or IP addresses. The IXrouter's MAC address can be obtained from the label on the side of the IXrouter. The IP address can be set to a static IP address. However, by default the IP address is set to be assigned dynamically via DHCP.

  • Page 19: Compliance

    ANATEL (models IX2400 and IX2410) NBTC ● ● Verizon (4G/LTE Global only) 6.2 Applicable European directives The IXrouter3 is in conformity with the provisions of the following European Directives.  Directive Description EMC Directive 2014/30/EU Product safety Radio Equipment Directive Use of the radio spectrum...
  • Page 20 EN 301 489-3 V1.4.1 EMC Standard for Radio Equipment and Services, Part 3: (2002-08) Specific conditions for Short-Range devices. EN 61000-6-1:2007 Electromagnetic compatibility (EMC) - Part 6-1: Generic standards - Immunity for residential, commercial and light-industrial environments EN 61000-6- Electromagnetic compatibility (EMC) - Part 6-3: Generic 3:2007/A1:2011/AC:2012 standards - Emission standard for residential, commercial and light-industrial...

  • Page 21: Fcc Compliance

    Notice Changes or modifications of this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The IXrouter3 contains different FCC certified modules, depending on the model. Article no. Enclosed module...

  • Page 22: Anatel

    The antenna(s) used with this transmitter must be installed with a separation distance of at least 20cm from all persons and must not be co-located or operated in conjunction with any other antennas or transmitters. Only those antenna(s) tested with the wireless transmitters or similar antenna(s) with equal or lesser gain may be used.
