- Page 1 IXrouter3 Installation manual...
-
Page 2: Table Of Contents
2.5 Dimensions Installation 3.1 Considerations 3.2 Installing and removing from DIN rail 3.3 Installing a SIM card 3.4 Power supply 3.5 Wiring 3.6 Digital input 3.7 Shield Operation 4.1 Configure the IXrouter3 4.2 LED status indicators 4.3 Reset to factory default... - Page 3 Connectivity requirements (for local IT) 5.1 Overview 5.2 Servers and DNS requests 5.3 MAC or IP address filter Compliance 6.1 Certifications 6.2 Applicable European directives 6.3 Applicable safety standards 6.4 FCC compliance 6.5 ANATEL 6.6 NBTC...
-
Page 4: Introduction

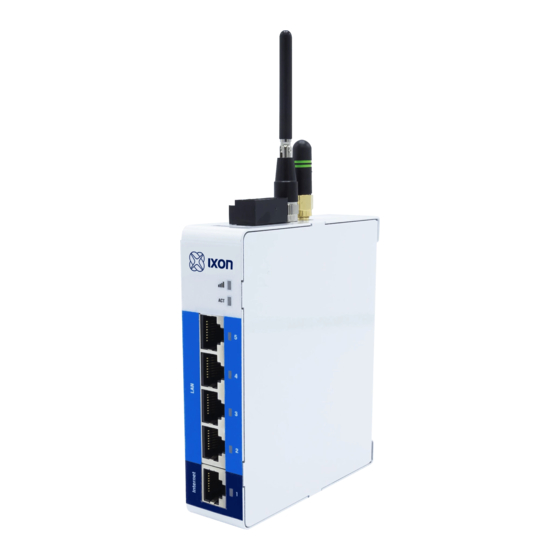

1. Introduction Thank you for purchasing the IXrouter3. The IXrouter is the standard and most supported hardware for IXON’s IXON Cloud. The IXrouter makes it convenient to remotely connect to your equipment, while the built-in firewall keeps your equipment safe from outside threats. -
Page 5: Product Overview
2. Product overview Seamlessly integrated with the IXON Cloud, the IXrouter is the fastest and safest way to connect your machine to the cloud. 2.1 Product family The IXrouter3 is available in several variations. No matter your situation, you can always connect your machine to the cloud. -
Page 6: Hardware Overview
2.3 Hardware overview The IXrouter3 is created with performance and a multitude of hardware capabilities in mind. Figure 1: Hardware overview SMA Connectors IXrouter 3 4G and 4G & Wi-Fi variants have two SMA antenna connectors. They are structured according to the following order: •... - Page 7 Figure 2: IXrouter 3 Label (can be found on the left side of the router)
-
Page 8: Specifications
2.4 Specifications The specifications below are applicable for all IXrouter3 variants. The 3G, 4G, and Wi-Fi variants each have additional specifications, listed separately. Power supply (recommended) 12-24 VDC +/- 20% LPS 2A Power consumption 10W max, about 2.5-5W* idle Operating temperature -20°C to +65°C... - Page 9 LTE additional specifications: 4G-G protocols and frequencies FDD-LTE - B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, (Global) B20, B25, B26, B28 TDD-LTE - B38, B39, B40, B41WCDMA - B1, B2, B4, B5, B6, B8, B19 GSM/GPRS/EDGE - 850, 900, 1800, 1900 MHz 4G-A** protocols and frequencies FDD-LTE - B2, B4, B12 (America)
-
Page 10: Dimensions
2.5 Dimensions The IXrouter3 is designed to be easily installed on a standard DIN rail. The small size of the IXrouter3 allows you to make efficient use of space. (Unit of measurement: millimeter.) Figure 3: IXrouter 3 dimensions... -
Page 11: Installation
AC power wiring and high-energy, rapidly-switched DC wiring. The IXrouter3 is designed to be cooled using natural convection. For proper cooling, you must provide a clearance of at least 25 mm above and below the device. Also, allow at least 25 mm of depth between the front of the device and the inside of the enclosure. -
Page 12: Installing And Removing From Din Rail
3.2 Installing and removing from DIN rail The IXrouter3 can be easily installed on a standard DIN rail. (1) Hang the device on the rail and (2) push the unit down until you feel a click. To remove the unit, (A) pull the device up and (B) lift off the rail. -
Page 13: Power Supply
3.4 Power supply The IXrouter3 must be powered by an IEC/UL/EN/60950-1 certified Limited Power Supply (LPS) or for the United States a Class 2 power supply. The LPS power supply is not included in the package of the IXrouter 3. -
Page 14: Operation
USB flash drive. After supplying power to the IXrouter, insert this USB flash drive in the USB port. The IXrouter3 will register itself to IXON’s IXON Cloud and set up a secure VPN connection. You can further configure the IXrouter via the IXON Cloud (https://connect.ixon.cloud/). -
Page 15: Led Status Indicators
4 pulses Removed from the platform (re-insert USB flash drive to register again) Blinking 5 pulses Previously registered to the IXON Cloud (remove from the IXON Cloud and register again) Blinking blue 1 pulse Connecting to the IXON Cloud Blinking... -
Page 16: Reset To Factory Default
When you want to reset the IXrouter3 to factory default, you first need to remove the device from your company in the fleet manager app of the IXON Cloud. The IXrouter3 itself can be reset to the factory default settings by pressing and holding the reset button on top for 5 seconds. -
Page 17: Connectivity Requirements (For Local It)
5. Connectivity requirements (for local IT) The IXrouter uses an outgoing port to establish a secure connection to our IXON Cloud. This means there is no need to open any incoming ports in your firewall. 5.1 Overview Below is an overview of the outgoing ports and protocols that the IXrouter utilizes. -
Page 18: Compliance
(ID #E492721) ● ANATEL (models IX2400 and IX2410) ● NBTC 6.2 Applicable European directives The IXrouter3 is in conformity with the provisions of the following European Directives. Directive Description EMC Directive 2014/30/EU Product safety Radio Equipment Directive 2014/53/EU... -
Page 19: Fcc Compliance
Notice Changes or modifications of this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The IXrouter3 contains different FCC certified modules, depending on the variant. Article no. Enclosed module... -
Page 20: Anatel
IX2404* 4G (China) IX2410 Wi-Fi XPYLILYW1 IX2415 4G (Global) & Wi-Fi XPYLILYW1, XMR201903EG25G *Model is discontinued Additional information for variants with wireless capabilities This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: ●... - Page 21 All supporting documents can be found on our support website: https://support.ixon.cloud/hc/articles/360002350232...
