Ixon IX2400 Installation Manual
Hide thumbs
Also See for IX2400:
- Quick start manual (2 pages) ,
- Installation manual (21 pages) ,
- Installation manual (15 pages)
Subscribe to Our Youtube Channel
Related Manuals for Ixon IX2400
Summary of Contents for Ixon IX2400
- Page 1 IXrouter3 Installation Manual IX2400 - IXrouter3 Ethernet IX2405 - IXrouter3 4G/LTE IX2410 - IXrouter3 Wi-Fi IX2415 - IXrouter3 4G/LTE & Wi-Fi Version 5.1 January 2024...
-
Page 2: Table Of Contents
1. Contents 1. Contents..........................1 2. Introduction...........................2 2.1. Help and support........................2 3. Safety instructions........................ 3 3.1. Personnel..........................3 3.2. Device............................3 3.3. Application..........................3 3.4. Handling............................3 4. Hardware features......................... 4 4.1. Technical data.......................... 5 4.1.1. General specifications....................5 4.1.2. Wi-Fi specifications......................6 4.1.3. -
Page 3: Introduction

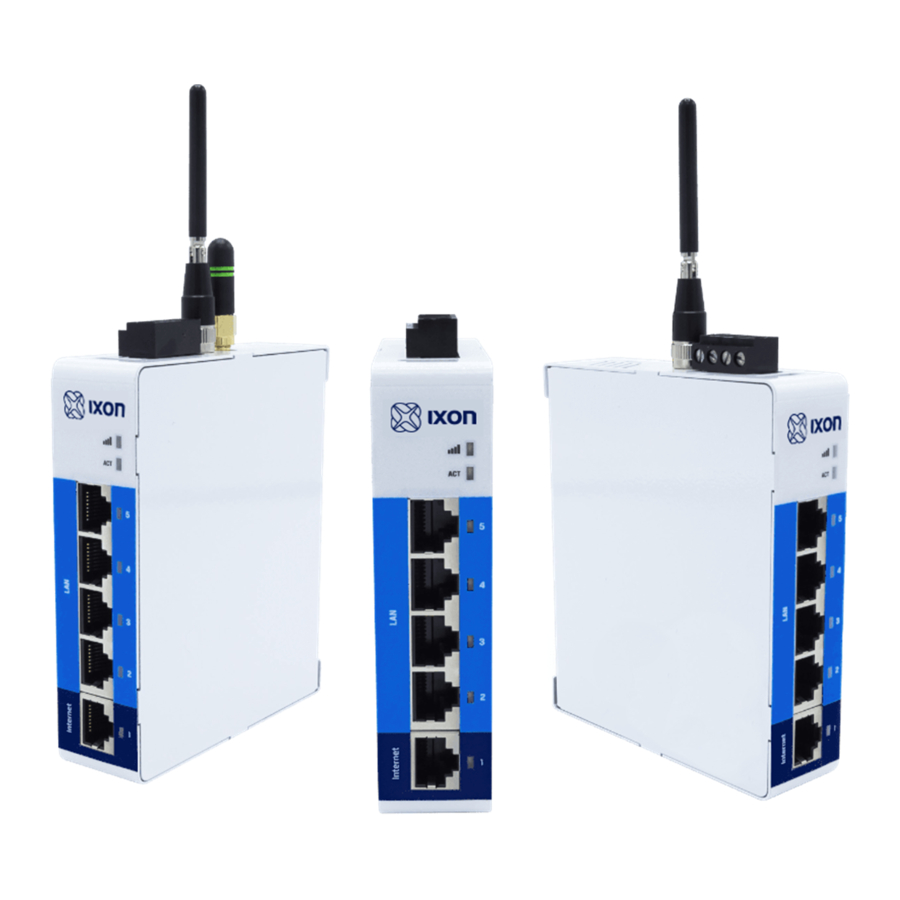

2. Introduction This installation manual is for the IXrouter3 family of products. Model Description Ethernet 4G/LTE Wi-Fi IX2400 IXrouter3 Ethernet ✔ IX2405 IXrouter3 4G/LTE ✔ ✔ IX2410 IXrouter3 Wi-Fi ✔ ✔ IX2415 IXrouter3 4G/LTE & Wi-Fi ✔ ✔ ✔ The IXrouter3 is delivered with the following accessories: •... -
Page 4: Safety Instructions
If you carry out any modifications that are not permitted, all your warranty claims will become null and void. This will result in exclusion of liability on the part of IXON. 3.3. Application The IXrouter3 is an electrical communication device. It is only suitable for installation in control cabinets or other similar closed operating environments. -
Page 5: Hardware Features
4. Hardware features Notice The availability of SMA antenna connectors and a SIM card slot are dependent on the model. -
Page 6: Technical Data
4.1. Technical data 4.1.1. General specifications IX2400 IX2410 IX2405 IX2415 Power supply 12-24 VDC +/- 20% ES1, PS2 Rated current Rated power 2.5 W Max. power 10 W 10 W 10 W 10 W Operating temperature -20℃ to 55℃ Operating humidity... -
Page 7: Wi-Fi Specifications
4.1.2. Wi-Fi specifications IX2400 IX2410 IX2405 IX2415 Wi-Fi version IEEE 802.11 IEEE 802.11 version b/g/n version b/g/n Wi-Fi modes Station (Client) Station (Client) Mode and Mode and Access Point Access Point Frequency 2.4 GHz 2.4 GHz Speed 72 Mbps 72 Mbps... -
Page 8: Mechanical Installation
5. Mechanical installation 5.1. Dimensions The IXrouter3 is designed to be cooled using natural convection. For proper cooling, you must provide a clearance of at least 25 mm above and below the device. Also, allow at least 25 mm of depth between the front of the device and the inside of the control cabinet. -
Page 9: Mounting And Dismounting
5.2 Mounting and dismounting The IXrouter3 is mounted on a standard DIN rail. (1) Hang the device on the rail and (2) push the unit down until you feel a click. To remove the unit, (A) pull/rotate the device up and (B) lift off the rail. -
Page 10: Electrical Installation
By default, the Digital Input is not configured and does not need to be wired. It provides a way to locally control the IXrouter3's VPN connection (ON/OFF). The Digital Input can also be logged in IXON Cloud or trigger an alarm in IXON Cloud. The wiring is depicted in the image above. -
Page 11: Antennas
Connecting an antenna to the DIV connector is optional. IX2410 WI-FI: connector for RP-SMA Wi-Fi antenna. IX2415 4G: connector for cellular SMA antenna. WI-FI: connector for RP-SMA W-Fi antenna. Notice Antennas are not included with the IXrouter3 and can be purchased from IXON separately. -
Page 12: Sim Card
7. SIM card This information is only applicable for models IX2405 and IX2415. Notice Only insert or remove the SIM card when the IXrouter3 is powered off. The SIM card is not included with the IXrouter3 and can be purchased separately from a telecom provider in your region. -
Page 13: Commissioning
Ensure that the mechanical and electrical installation have been completed and that the IXrouter3 is supplied with voltage before commissioning. Step 1: Create account Create an account on the IXON Cloud and configure your own IIoT user and company account at portal.ixon.cloud. Step 2: Create config file a. -
Page 14: Local Web Interface
The IXrouter3’s local web interface can be used to register the router (if it’s not already registered in the IXON Cloud), change the WAN, LAN, and Firewall configurations locally or to use the status overview as a more advanced alternative to the LED statuses. -
Page 15: Reset To Factory Default
After doing a factory reset, the IXrouter3 needs to be re-registered to the IXON Cloud. If the router is still listed in the IXON Cloud and you want to re-use those settings, make sure to turn on Recovery mode before registering again. -
Page 16: Connectivity Requirements For Local It
11. Connectivity requirements for local IT The IXrouter3 uses outgoing ports to establish a secure connection to the IXON Cloud. This means there is no need to open any incoming ports in your firewall. 11.1. Overview Below is an overview of the outgoing ports and protocols that the IXrouter3 utilizes. -
Page 17: Diagnostics And Troubleshooting
(re-insert USB flash drive to register again) Previously registered to the IXON Cloud …. …. …. …. …. …. …. …. …. …. 5 pulses (remove from the IXON Cloud and register again) … …. …. …. …. …. …. -
Page 18: Compliance
13. Compliance 13.1. European Union Hereby, IXON B.V. declares that the radio equipment type IXrouter3 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.ixon.cloud/ce-declaration-of-conformity. 13.2. UL This device is UL listed for USA and Canada under file number E492721. -
Page 19: Nbtc
13.6. NBTC เครื องโทรคมนาคมและอุ ป กรณ์ น ี ้ มี ค วามสอดคล ้องตามมาตรฐานหรื อ ข ้อก าหนดทางเทคนิ ค ของ กสทช. เครื องวิ ท ยุ ค มนาคมนี ้ ม ี ร ะดั บ การแผ่ ค ลื นแม่ เ หล็ ก ไฟฟ้ า สอดคล ้องตามมาตรฐาน ความปลอดภั ย ต่ อ สุ ข ภาพ ของมนุ... - Page 20 Thanks for choosing us! We're dedicated to providing you with a reliable solution for seamless machine connectivity. If you have any questions or concerns, please don't hesitate to reach out to us. IXON B.V. Zuster Bloemstraat 20 5835 DW Beugen The Netherlands...
