i3 International Di721 Series Quick Start Manual

QUICK START GUIDE
Di721-series Indoor Vandal Camera
SAFETY
1. This quick start guide is designed for users who have an adequate
knowledge of CCTV cameras.
2. For maximum optical clarity, the camera or lens must remain clean.
Use a soft, dry cloth to remove finger prints and dust from the
dome cover
3. Ensure the supplied voltage meets the power consumption
requirements of this camera before powering the camera on.
4. To avoid electrical shock and to preserve the product warranty,
DO NOT disassembles the camera. Refer servicing to qualified
personnel only.
5. For more details on installation and operation, please refer to the
CD provided.
PACKAGE CONTENTS
Flat Head Screw (Tapping Type) x4
•
Plastic Anchor x4
•
Flat Head Screw (Machine Type 26L) x3
•
Security Tort wrench x1
•
2nd video monitor output cable x1
•
Guide Pattern sticker x1
•
Flush Mount template (the box lining) x1
•
Fully Assembled Camera x1
•
INSTALLATION
The dome camera is a fully integrated enclosure with camera and lens.
1. Conduit holes used for surface run
power/video connector
a. Side conduit hole (1/2").
b. Top conduit hole (3/4") (can also
be used for pendant mount).
2. Bottom case
3. Camera Base
4. Dome cover
5. Focus lever
6. Zoom lever
7. Video output connector
8. 24 VAC / 12 VDC power input connector
(red +, black -)
a
b
i3-TRNG-CAMS-Di721-series-QuickGuide.indd
MOUNTING THE CAMERA (SURFACE MOUNT)
1. Attach the Guide Pattern Sticker to the wall or ceiling.
2. Drill two holes on the mounting surface and insert the plastic anchors (#1) into the
3. Secure the bottom case to the wall or ceiling with the Flat Head Screws (tapping
Note: Depending on the material of your mounting surface, you may require different
screws and anchors than those supplied.

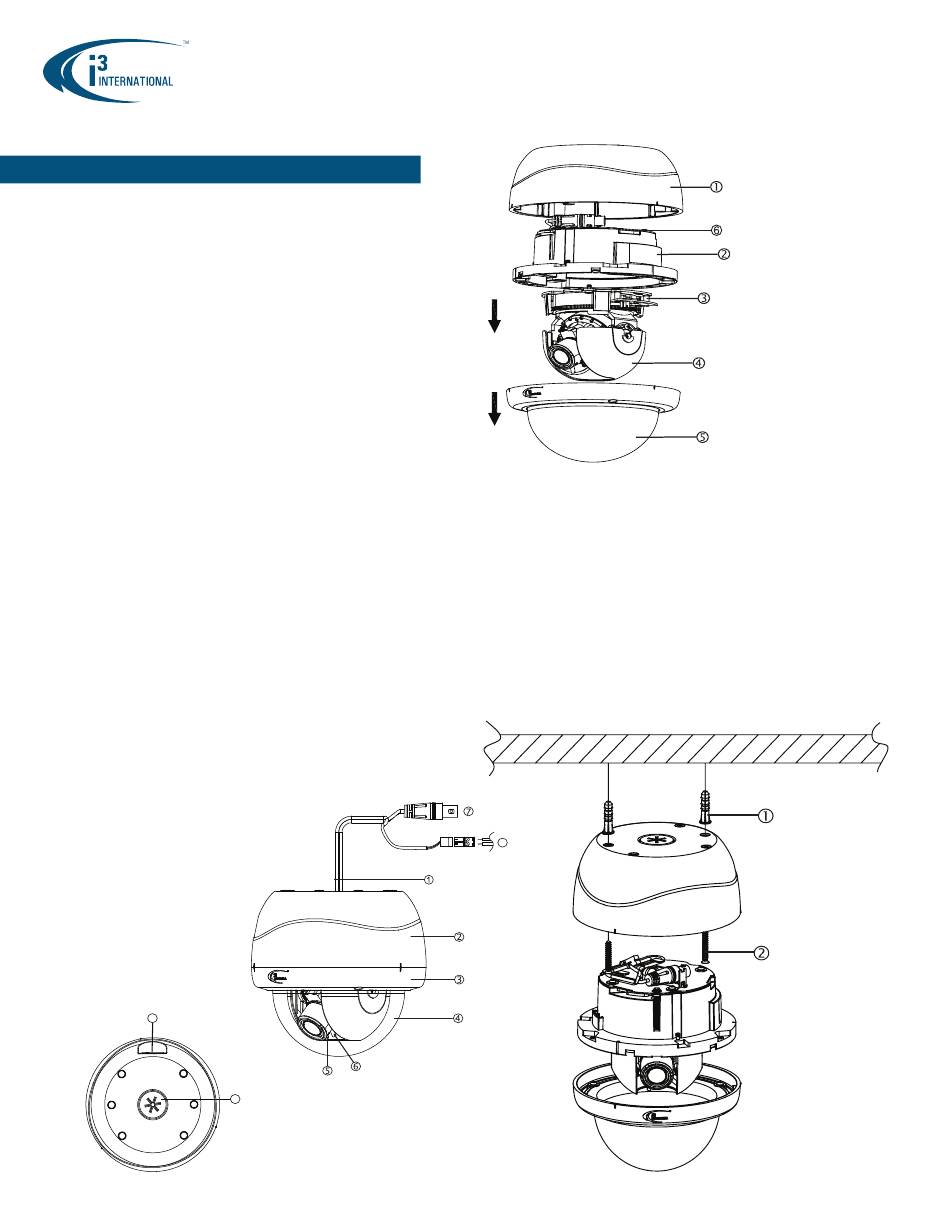

Figure 1. Camera Parts
Applicable to the following models: Di721, Di721B,
Di721R, Di721RB, Di721P, Di721RP, Di721BP, Di721RBP
Figure 2. Disassembling the camera
holes.
type) (#2).
For your convenience, the holes on the outdoor housing are started but not drilled
all the way through for moisture control.
Figure 3. Camera Surface Mounting
8
1. Bottom case
2. Camera base
3. Tilt adjustment
bracket
4. Inner liner
(Not present on
Di721R model
series)
5. Dome cover
6. Anti drop hook
1. Plastic Anchors
2. Flat Hand Screws
(Tapping Type)
Rev. 130130
