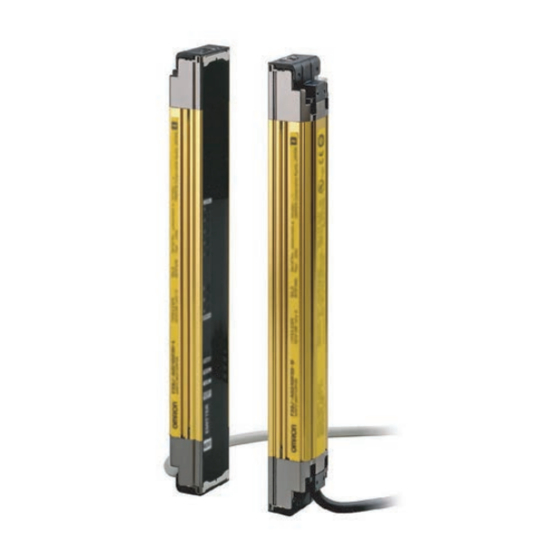

  • Page 1 Safety Light Curtain □□□□ □□ F3SJ-A -TS Series Quick Installation Manual Relevant manual Cat. No. Safty Light Curtain F3SJ-A-TS Series SCHG-720 User's Manual © OMRON Corporation 2017-2020 All Rights Reserved. 3126235-0B Original instructions...
  • Page 2: Table Of Contents

    Thank you for purchasing the F3SJ-AP-TS Series Safety Light Curtain (hereinafter referred to as the "F3SJ-A-TS"). This document is a brief description from wiring to pre-operation checklists / maintenance checklists of F3SJ-A-TS. For details, download and read F3SJ-A-TS user's manual from Omron's website. https://industrial.omron.us/en/home Table of Contents 1.
  • Page 3: System Components

    2. System Components Emitter Receiver Beam center-line mark LEVEL LEVEL LEVEL-5 (Green) LEVEL-5 (Green) LEVEL-4 (Green) LEVEL-4 (Green) 1. Incident light 1. Incident light level LEVEL-3 (Orange) LEVEL-3 (Orange) level indicator indicator LEVEL-2 (Orange) LEVEL-2 (Orange) LEVEL-1 (Orange) LEVEL-1 (Orange) ERROR- C (Red) ERROR-C (Red) Beam...
  • Page 4: Function Selection Flow Chart

    Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists 4. Function Selection Flow Chart Required system configuration depends on functions to be used. Use the following flow chart to determine the system. Using Muting Function Basic System Muting System *1 *1 Muting Key Cap (F39-CN6) is necessary.
  • Page 5: Mounting And Beam Alignment

    Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists 5. Mounting and Beam Alignment For brackets other than those included in the product (F39-LJ1/F39-LJ3) as well as external dimensions and mounting, refer to F3SJ-A-TS series user's manual. 5-1. Mutual Interference Prevention ■...
  • Page 6: External Dimensions To Attach The Brackets Included In The Product (F39-Lj1/F39-Lj3)

    Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists 5-4. External dimensions to attach the brackets included in the product (F39-LJ1/F39-LJ3) ■ Dimensions (Check position) [Backside mounting] Step1 Check position 2-Top/bottom mounting brackets 2-Mounting holes 4-M5 Step2 Mount Step3 Align Intermediate mounting beams 2-M5...
  • Page 7 Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists ■ Dimensions (Check position) [Side mounting] Step1 2-Top/bottom Check mounting brackets position 2-Mounting holes Step2 Mount Step3 Align beams Beam dia. 6 4-Mounting holes dia. 6.5 2-Mounting holes dia. 9 M12 Waterproof connector [ Unit : mm ] Dimensions A to E C + 74...
  • Page 8: Mounting And Beam Alignment

    Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists 5-5. Mounting and Beam Alignment 1. Attach the top/bottom brackets. Step1 Check Fit in the slot of the convex block position Top/bottom mounting bracket (1) Mounting screw (M5x20) Step2 (Recommended tightening torque: 2.3N•m) Top/bottom Mount Tighten lightly...
  • Page 9 Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists 3. <On back end mounting> Attach the intermediate mounting brackets (1) and (4). Intermediate Step1 Intermediate mounting mounting Check Tighten lightly bracket (1) bracket (1) position Intermediate mounting Step2 bracket (4) Mount Mounting screw (M4x25)
  • Page 10 Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists 5. Fix the unit on the wall. Step1 Wall-mounting screw (M5) Wall-mounting screw (M5) Check position Backside mounting Side mounting Step2 Tighten securely Mount Step3 Align beams (Recommended tightening torque: 0.54N•m) Tightening with torque exceeding the recommended value too much may lead to a failure.
  • Page 11: Pre-Operation Checklists / Maintenance Checklists

    Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists 6. Pre-Operation Checklists / Maintenance Checklists After wiring, mounting and beam alignment are done, check the operation of the F3SJ-A-TS. Pre-Operation Checklists After installation, the highest level administrator must use the following checklist to verify the operation, plac- ing a check mark in each of the boxes.
  • Page 12 Pre-Operation Checklist / Function Selection Mounting/Beam Alignment Maintenance Checklists Depending on the unit's model and settings of floating blanking function, detection capability may vary. Use a test rod with an appropriate diameter for inspection. The model name of test rod is as follows. Model name Diameter F39-TRD14...
  • Page 13: Suitability For Use/Contact Information

    Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system, or other application or use.
  • Page 14 □□□□ □□ F3SJ-A © OMRON Corporation 2017-2020 All Rights Reserved. Original instructions...
  • Page 15: 同梱物のご確認

    す ) を お買い上げいただ き、 あ り が と う ご ざいます。 本書は F3SJ-A-TS の配線から動作チ ェ ッ ク ま での流れを示 し た簡易説明書です。 詳細については F3SJ-A-TS のユーザーズマニ ュ アルを当社ウ ェ ブサイ ト から ダウン ロー ド し 、 よ く お読み く だ さ い。 http://www.fa.omron.co.jp 目次 1. 同梱物のご確認....................................1 2. 各部の名称......................................2 3.
  • Page 16: 各部の名称

    2. 各部の名称 3. ラ イ ト カ ーテ ン セ ッ ト ア ッ プの流れ ..3 ページ ..4 ページ ..9 ページ F3SJ-A-TS ク イ ッ ク イ ンス ト ールマニ ュ アル...
  • Page 17: 機能選択フ ローチ ャ ー ト

    4. 機能選択フ ローチ ャ ー ト 使用する機能によ り 必要なシ ス テム構成が変わっ て き ます。 以下のフ ローチ ャ ー ト に従い、 どのシ ス テム が必要か決定 し て く だ さ い。 F3SJ-A-TSシ リ ーズユーザーズマニ ュ アル ミ ュ ーテ ィ ン グ機能を使用する場合の構成については を参照...
  • Page 18: 取 り 付け ・ 光軸調整

    5. 取 り 付け ・ 光軸調整 F3SJ-A-TSシ リ ーズユー 同梱 さ れている金具(形F39-LJ1、 形F39-LJ3)以外の金具、 外形寸法および取 り 付け方法については、 ザーズマニ ュ アル を参照 し て く だ さ い。 5-1. 同梱 さ れている金具 ( 形 F39-LJ1、 形 F39-LJ3) を取 り 付ける場合の外形寸法 ■外形寸法図 (取 り 付け位置確認) [ 背面取...
  • Page 19 ■外形寸法図 (取 り 付け位置確認) [ 側面取 り 付け時 ] [ 単位 : mm ] 寸法A~Eについて 寸法A C+74 寸法B C+46.5 寸法C 形式中の4桁の数字(検出幅) 寸法D C-20 寸法E 検出幅によ っ て変 り ます。 下表を確認 く だ さ い。 寸法Eについて 検出幅 中間取付金具の数 寸法E *1 0245~0596 0600~1130 1136~1658 1660~2180...
  • Page 20: 取 り 付け方法 と 光軸調整

    5-2. 取 り 付け方法 と 光軸調整 1. 上下取付金具を取 り 付けます。 推奨値を大き く 超え る ト ル ク で固定する と 故障の原因 と な り ます。 2. 中間取付金具 (2) と (3) を取 り 付けます。 中間取付金具(2)(3)の取 り 付け位置は本紙5-1項E寸法を ご確認 く だ さ い。 F3SJ-A-TS ク...
  • Page 21 3. <背面取 り 付け時>中間取付金具 (1) と (4) を取 り 付けます。 4. <側面取 り 付け時>中間取付金具 (1) と (4)、 側面取 り 付け用中間取付金具を取 り 付けます。 F3SJ-A-TS ク イ ッ ク イ ンス ト ールマニ ュ アル...
  • Page 22 5. 壁面へ固定 し ます。 推奨値を大き く 超え る ト ル ク で固定する と 故障の原因 と な り ます。 壁面 と の取 り 付けね じ は付属 し ていません。 6. 表示灯を参考に光軸を調整 し ます。 配線については付属の取扱説明書を参照 し て く だ さ い。 ■受光レ ベル表示灯の点灯パ タ ーン 受光レ...
  • Page 23: 動作チ ェ ッ ク

    オムロン 0120-919-066 携帯電話 ・ PHS ・ IP電話な ど ではご利用いただけませんので、 下記の電話番号へおかけ く だ さ い。 055-982-5015 電話  (通話料がかかり ます)  ■営業時間:8:00〜21:00   ■営業日:365日 ●FAXやWebページでもお問い合わせいただけます。 055-982-5051 www.fa.omron.co.jp  FAX        ●その他のお問い合わせ 納期・価格・サンプル・仕様書は貴社のお取引先、または貴社担当オムロン販売員にご相談ください。 オムロン制御機器販売店やオムロン販売拠点は、Webページでご案内しています。 F3SJ-A-TS ク イ ッ ク イ ンス ト ールマニ ュ アル...
