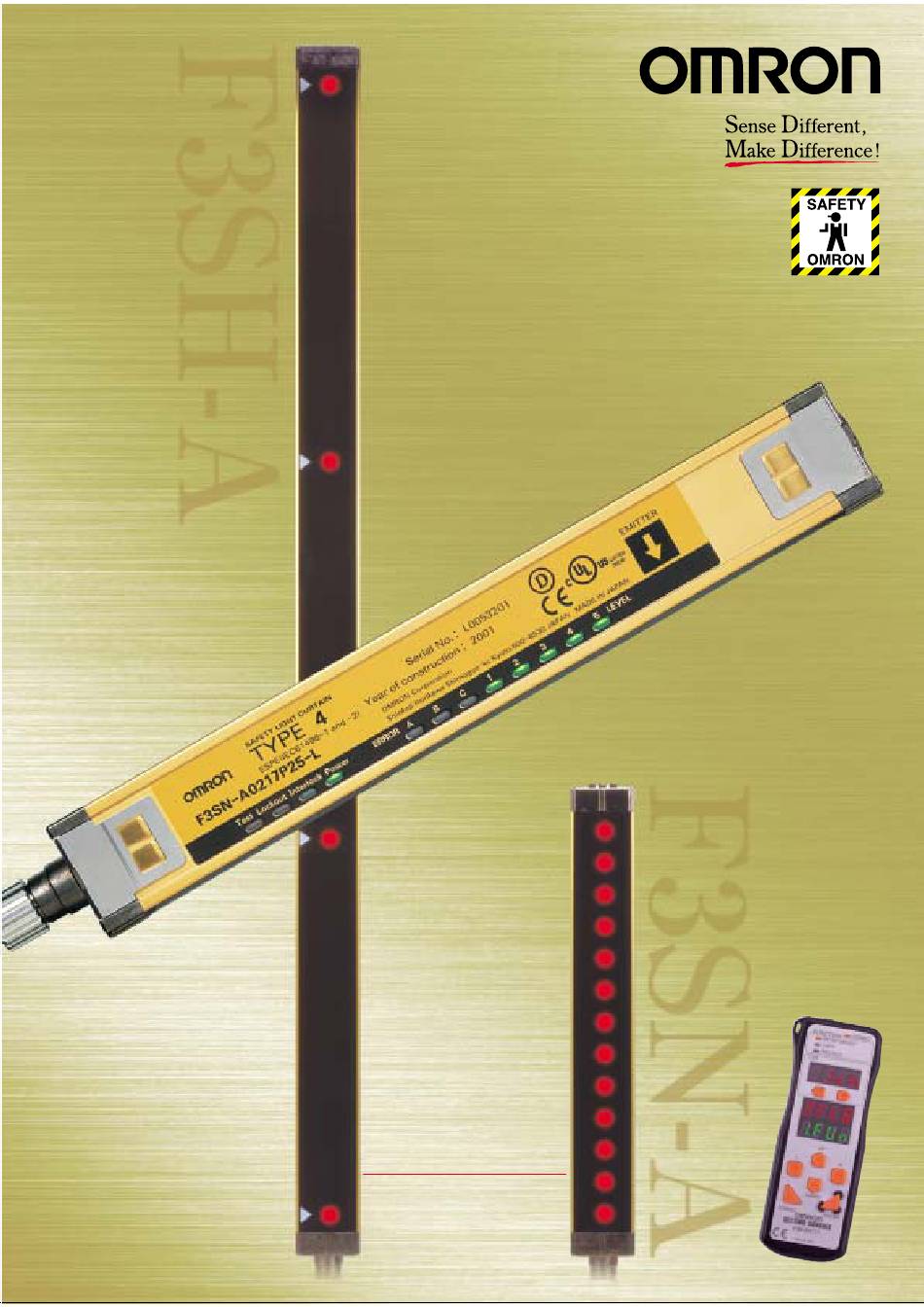

- Page 1 The gold color shows our confidence in the safety we provide. Safety Light Curtain F3SN-A Multi-beam Safety Sensor F3SH-A The red light beams are intended only to express the light source. The beams are not actually visible.
- Page 2 OMRON will manufacture two types of Sensors for detection applications based on horizontal position: Sensors with 40-mm diameter detection capability (beam gap: 30 mm) and Sensors with 70-mm diameter detection capability (beam gap: 60 mm). Consult your dealer or OMRON representative. Body Protection Multi-beam Safety Sensor F3SH-A09P03 ●...
- Page 3 FMEA Type 4 Level Sensor Specified by IEC and EN Standards We pursued the safety of F3SN-A/F3SH-A to the limit with Conforms to the now mandatory international standards for the mutual check of two CPUs, safe design by dual circuits safety sensors: IEC61496-1, IEC61496-2, and EN61496-1.
- Page 4 OMRON has successfully developed a compact Sensor Limits extra space to a minimum. surface area (30 30 mm) in a Type 4 Safety Light Curtain with built-in amp. The new F3SN-A/F3SH-A is 25% smaller than earlier OMRON models. Machine Machine...
- Page 5 Connect up to 3 sets in series. Prevents mutual interference. Up to 3 sets can be connected in series by using both the standard model and a series-connection model with a connector. You can create a 3-set system by just wiring one set –...
- Page 6 Setting Console All Functions Can be Set Easily and Safely Easy Function Settings, Monitoring, and Copying to Multiple Sensors In earlier Sensor models, function settings were made using an internal DIP switch, and switch operation used to be very difficult after Sensor was mounted. That's why we added a Setting Console.
- Page 7 Two Types of Blanking Functions Blanking functions change the Safety Light Curtain detection patterns. Basic Pattern 1: Floating Blanking Disables detection for 1, 2, or 3 non-specific beams. Blanking Output is turned OFF if more than the specified number of beams are obstructed. Ideal for applications where a robot arm for removing workpieces passes through the Safety Light Curtain detection zone at irregular intervals.
- Page 8 F 3SH - A Multi-beam Safety Sensor The F3SH-A enables human body detection using the 4-beam dimensions recommended by EN Standards. 300-mm gap using 4 beams. Detects whole-body intrusion. The EN999 Standard concerns machine safety, in particular the positioning of protective devices in relation to the approach speed of part of a human body.
- Page 9 Making Safety Easier to Work With The Sensor Unit also has a variety of safety functions. Suitable for all kinds of safety circuit systems. ● Interlock functions ● Auto reset / Manual reset selection ● EDM (External Device Monitoring) function Indicator bar included.
-
Page 10: Specification
*1 The oooo in the model numbers indicates the protective height (in mm). *2 F3SN-A oooo P14-01 is a customized model produced at the OMRON plant. Consult with your dealer or OMRON representative when ordering this model. ■ Multi-beam Safety Sensor... - Page 11 F3SN-A/F3SH-A F3SN-A/F3SH-A Single-ended Connector cable (Emitter and Receiver Set) Appearance Cable length Specification Model F39-JC3A F39-JC7A M12 connector (8 pins) F39-JC10A F39-JC15A Double-ended Connector cable (Emitter and Receiver Set) Model Appearance Cable length Specification Application 0.2m F39-JCR2B Series connection or...
- Page 12 Tel : (49)7032-811-0 / Fax : (49)7032-811-199 OMRON ELECTRONICS LLC 1 East Commerce Drive, Schaumburg, IL 60173 U.S.A. Tel : (1)847-843-7900 / Fax : (1)847-843-8568 OMRON ASIA PACIFIC PTE. LTD. 83 Clemenceau Avenue, #11-01, UE Square, 239920 Singapore Tel : (65)835-3011 / Fax : (65)835-2711 OMRON CHINA CO., LTD.
