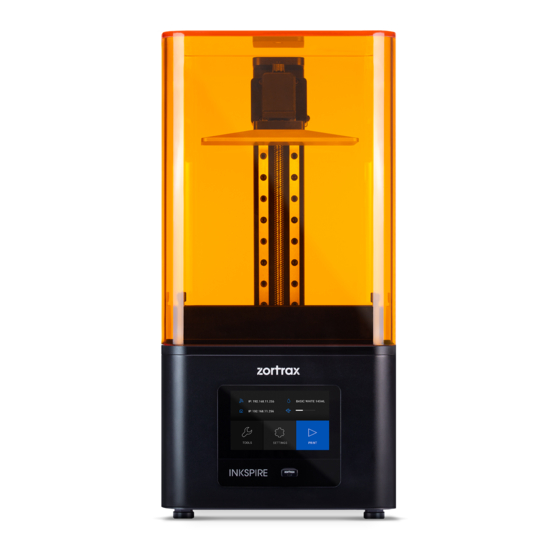

- Page 1 FEP Film Replacement SOURCE: https://support.zortrax.com/inkspire-fep-film-replacement/...
- Page 2 Unscrewing the FEP Film Rack FEP Film Removal FEP Film Rack Cleaning FEP Film Installation Securing the FEP Film Rack, part 1 FEP Film Rack Installation Securing the FEP Film Rack, part 2 Excess FEP Film Removal FEP Film Cleaning...
- Page 3 UV Cover Removal Remove the UV cover.
- Page 4 Lifting up the Platform From the menu, select “Tools,” “Platform” and “Move the platform.” Keep the UP arrow pressed to lift the platform.
- Page 5 Unplugging the Power Cable Turn off the printer and unplug the power cable.
- Page 6 Resin Tank Removal Loosen the two screws that secure the resin tank. Next, remove the tank.
- Page 7 FEP Film Rack Removal Unscrew the black screws that secure the FEP film rack to the resin tank. Next, separate the FEP film rack from the resin tank.
- Page 8 Unscrewing the FEP Film Rack Unscrew the silver screws that secure the two parts of the FEP film rack.
- Page 9 FEP Film Removal Separate both parts of the rack and remove the FEP film.
- Page 10 FEP Film Rack Cleaning Clean both parts of the FEP film rack with a paper towel soaked in isopropyl alcohol.
- Page 11 FEP Film Installation Place the new FEP film between the two parts of the FEP film rack. The new FEP film does not require unfolding after taking it out of the packaging.
- Page 12 Securing the FEP Film Rack, part 1 In order for the FEP film to be properly tight, you have to create a bulge while securing both parts of the FEP film rack. To do that, place the FEP replacement jig from the Starter Kit or an item that is 8 mm [0.3 in] thick underneath the film.
- Page 13 FEP Film Rack Installation Put the FEP film rack and the resin tank together.
- Page 14 Securing the FEP Film Rack, part 2 Secure the FEP film rack with the black screws in a diagonal order. Once you finish, fully tighten all screws.
- Page 15 Excess FEP Film Removal Cut and remove the excess FEP film from the rack.
- Page 16 FEP Film Cleaning Clean the outside of the FEP film and the LCD screen with a paper towel soaked in isopropyl alcohol before installing the resin tank in the printer.
- Page 17 Resin Tank Installation Install the resin tank in its place and tighten the two screws.
- Page 18 UV Cover Installation Install the UV cover on the printer.
