Kramer VS-622DT Quick Start Manual

VS-622DT Quick Start Guide
This guide helps you install and use your VS-622DT for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

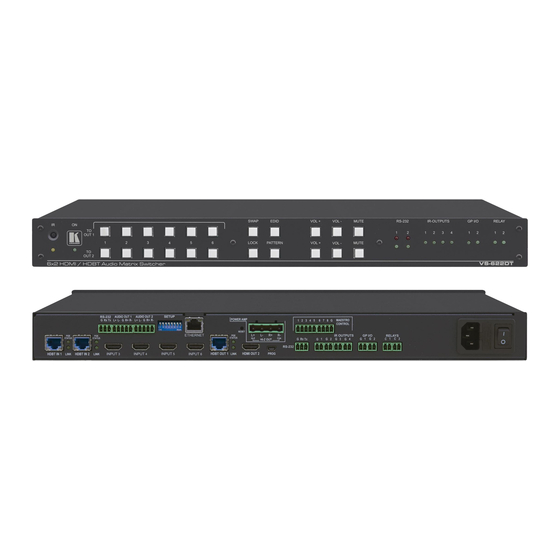

VS-622DT 6x2 HDMI / HDBT Audio Matrix Switcher
1 Power cord

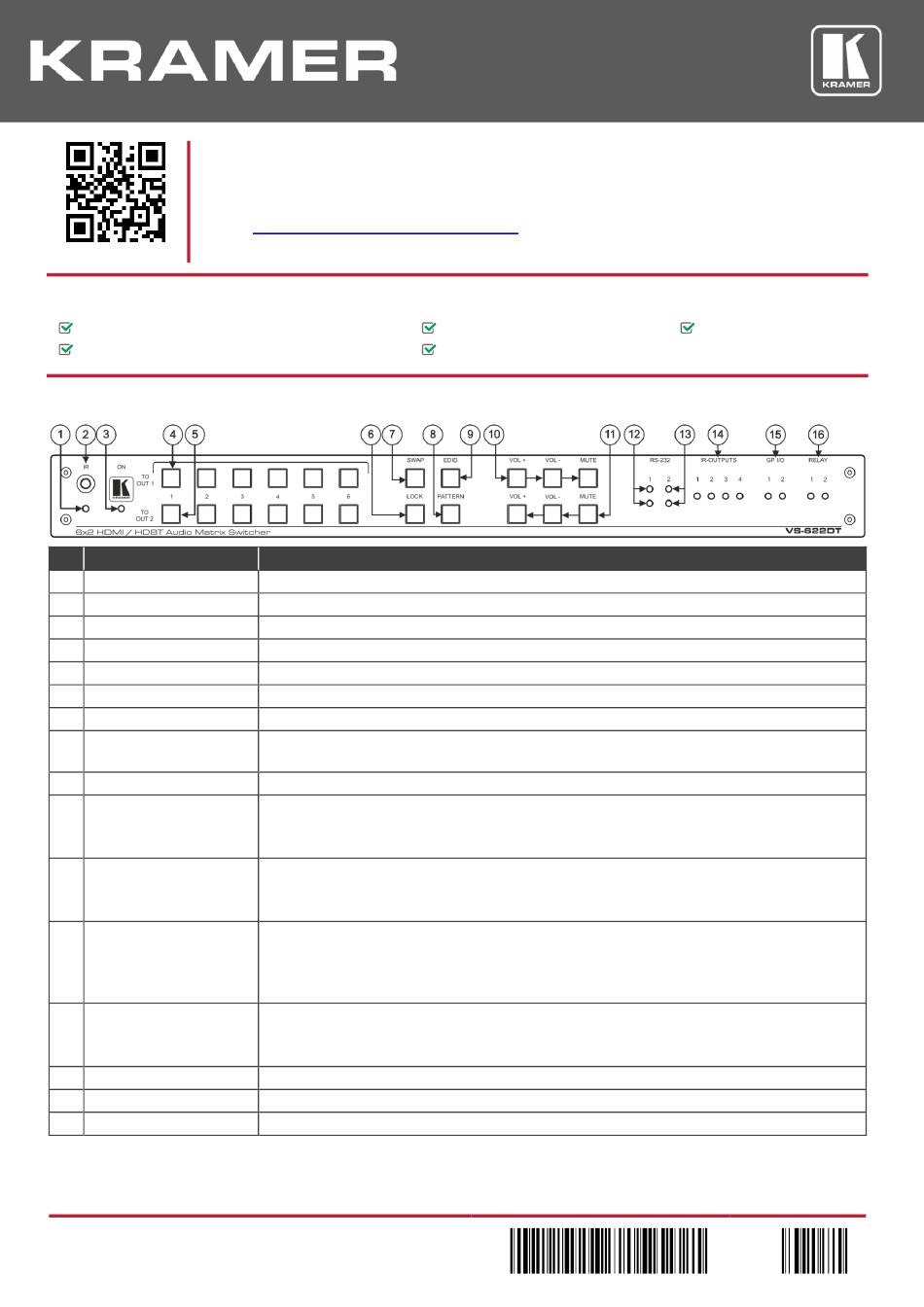

Step 2: Get to know your VS-622DT

# Feature
1 IR LED
2 IR Receiver
3 ON LED
4 TO OUT 1
5 TO OUT 2
6 LOCK Button
7 SWAP Button
8 PATTERN Button
9 EDID Button
10 Output 1 Audio Buttons
11 Output 2 Audio Buttons
12 HDBT RS-232 LEDs
13 EXTERNAL (Controller)
LEDs
14 IR OUTPUT LEDs (1 to 4) Lights green when the relevant IR port transmits data.
15 GPI/O LEDs (1 to 2)
16 RELAY LEDs (1 to 2)
VS-622DT Enhanced Quick Start (P/N: 2900-300856QS REV 2)
www.kramerav.com/downloads/VS-622DT
Function
Lights red when the unit accepts IR remote commands.
Receives signals from the remote control transmitter.
Lights when the unit is powered.
Press to select an input to switch to OUT 1 (from 1 to 6).
Press to select an input to switch to OUT 2 (from 1 to 6).
Press to lock the front panel buttons.
Press to swap between audio outputs.
Press to activate the test pattern generator. When the generator is active, press one of the input
buttons to select a test pattern.
Press to capture the EDID.
VOL +: Increase output 1 volume.
VOL -: Decrease output 1 volume.
MUTE: Mute output 1 audio signal.
VOL +: Increase output 2 volume.
VOL -: Decrease output 2 volume.
MUTE: Mute output 1 audio signal.
Indicates data transmission from a controller to a device connected to the transmitter via
HDBT OUT 1:
TX 1: Lights green when data is transmitted via HDBT OUT 1.
RX 1: Lights red when data is received on HDBT OUT 1.
Indicates data transmission via the RS-232 port (item 29) to the VS-622DT:
TX 2: Lights green when data is transmitted on the RS-232 port.
RX 2: Lights red when data is received on the RS-232 port.
Lights green when the port is triggered.
Lights green when the relay is closed.
to download the latest user manual and check if
1 Quick start guide
4 Rubber feet
P/N: 2900- 300856QS
1 Set of rack ears
Rev: 2
