Summary of Contents for Kramer VS-66HDMI
- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VS-66HDMI 6x6 HDMI Matrix Switcher...
-
Page 2: Table Of Contents
Figure 5: Internet Protocol (TCP/IP) Properties Window Tables Table 1: Terminology Used in this User Manual Table 2: VS-66HDMI 6x6 HDMI Matrix Switcher Front Panel Features Table 3: Technical Specifications of the VS-66HDMI Table 4: Protocol Definitions Table 5: Instruction Codes for Protocol 2000... -
Page 3: Introduction
2 Downloadable from our Web site at http://www.kramerelectronics.com 3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction , which are clearly defined... -
Page 4: Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview The VS-66HDMI is a high quality 6x6 matrix switcher for HDMI signals. In particular, the VS-66HDMI: Supports up to 1.65Gbps bandwidth per graphic channel Supports HDCP (High Definition Digital Content Protection) Includes an OFF button to disconnect an output... -
Page 6: Recommendations For Best Performance
(often associated with low quality cables) Avoid interference from neighboring electrical appliances and position your VS-66HDMI away from moisture, excessive sunlight and dust 1 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI... -
Page 7: Terminology Used In This User Manual
Protocol/Internet protocol in an intranet or an extranet. Protocol (TCP/IP) Your VS-66HDMI 6x6 HDMI Matrix Switcher Figure 1 and Table 2 define the front and rear panels of the VS-66HDMI. -

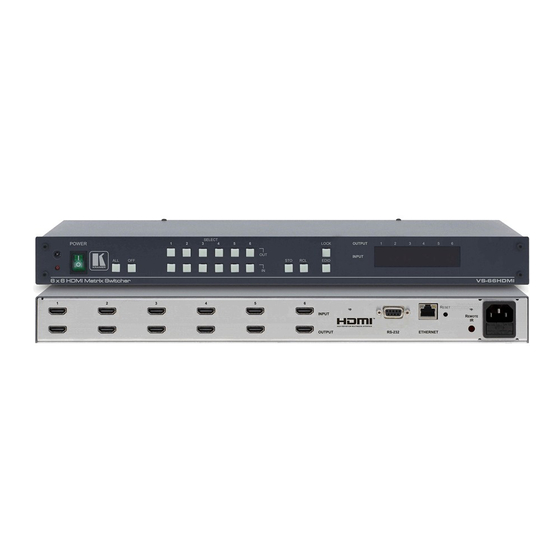

Page 8: Figure 1: Vs-66Hdmi 6X6 Hdmi Matrix Switcher
Your VS-66HDMI 6x6 HDMI Matrix Switcher Figure 1: VS-66HDMI 6x6 HDMI Matrix Switcher KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Table 2: Vs-66Hdmi 6X6 Hdmi Matrix Switcher Front Panel Features
2 Are also used for storing machine setups (see section 7.3) 3 Illuminates when configuring the EDID 4 First turn the VS-66HDMI OFF and then turn it ON again while pressing the RESET button. The unit will power up and load its memory with the factory default definitions 5 Covered by a cap. -
Page 10: Using The Ir Transmitter
This distance can be extended to up to 60 meters when used with three extension cables Before using the external IR receiver, be sure to arrange for your Kramer dealer to insert the internal IR connection cable that fits into the REMOTE IR opening on the rear panel. -
Page 11: Installing The Vs-66Hdmi On A Rack
Always mount the machine in the rack before you attach any cables or connect the machine to the power If you are using a Kramer rack adapter kit (for a machine that is not 19"), see the Rack Adapters user manual for... -
Page 12: Connecting A Vs-66Hdmi 6X6 Hdmi Matrix Switcher
Press the SELECT IN and OUT buttons to choose which HDMI input to route to a selected output. 1 Switch OFF the power on each device before connecting it to your VS-66HDMI. After connecting your VS-66HDMI, switch on its power and then switch on the power on each device... -
Page 13: Figure 2: Connecting A Vs-66Hdmi 6X6 Hdmi Matrix Switcher
Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher Figure 2: Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher... -
Page 14: Operating The Vs-66Hdmi 6X6 Hdmi Matrix Switcher
Operating the VS-66HDMI 6x6 HDMI Matrix Switcher Operating the VS-66HDMI 6x6 HDMI Matrix Switcher This section describes how to: Route an input to an output (see section 7.1) Acquire the EDID (see section 7.2) Store and recall a setting (see section 7.3) Control the machine via RS-232 (see section 7.4) -
Page 15: Acquire An Edid From Several Sets Of Inputs And Outputs
Operating the VS-66HDMI 6x6 HDMI Matrix Switcher 7.2.2 Acquire an EDID from Several Sets of Inputs and Outputs To acquire the EDID for more than one output (for example, OUT 1 to IN 1 and OUT 6 to IN 3), do the following: 1. -
Page 16: Acquire The Default Edid
Operating the VS-66HDMI 6x6 HDMI Matrix Switcher 4. Press the input button to which the EDID will be copied. The selected input number blinks on the display. 5. Press the OFF button until the numeric – (hyphen) appears on the display. -
Page 17: Controlling Via Rs-232 (For Example, Using A Pc)
7.5.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable) You can connect the Ethernet port of the VS-66HDMI to the Ethernet port on your PC, via a crossover cable with RJ-45 connectors. This type of connection is recommended for identification of the factory default... -
Page 18: Figure 4: Local Area Connection Properties Window
Operating the VS-66HDMI 6x6 HDMI Matrix Switcher 2. Select Properties. 3. Right-click Local Area Connection Properties. 4. Select Properties. The Local Area Connection Properties window appears. 5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see Figure 4). -
Page 19: Connecting The Ethernet Port Via A Network Hub (Straight-Through Cable)
OPTIONS: Kramer HDMI cables 1 Specifications are subject to change without notice 2 For best results, use Kramer cables such as the C-HDMI/HDMI series, the C-HDMI-DVI series and/or our HDMI over fiber optics C-FOHM/FOHM series Technical Specifications of the VS-66HDMI... -
Page 20: Kramer Protocol 2000
Kramer Protocol 2000 The VS-66HDMI is compatible with Kramer’s Protocol 2000 (below). This RS-232/RS-485 communication protocol uses four bytes of information as defined below. For RS-232, a null-modem connection between the machine and controller is used. The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit. -
Page 21: Table 5: Instruction Codes For Protocol 2000
OUTPUT is assigned the value of the requested parameter. The replies to instructions 10 and 11 are as per the definitions in instructions 7 and 8 respectively. For example, if the present status of machine number 5 is breakaway setting, then the reply to the HEX code Kramer Protocol 2000 DEFINITION FOR SPECIFIC INSTRUCTION INPUT... - Page 22 81 (i.e. 128dec+ 22dec for 2nd byte, and 128dec+ 16dec for 3rd byte). 81 (i.e. 128dec+ 3dec for 2nd byte, 128dec+ 5dec for 3rd byte). 81 (i.e. 128dec+ ASCII for “Y” ; 128dec+ ASCII for “C” ). 82 (ie. request the number of outputs) KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 23 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 24 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
