VS-62DT Quick Start Guide
This guide helps you install and use your VS-62DT for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
VS-62DT 6x2 UHD Matrix Switcher
1 Power supply (48V DC)

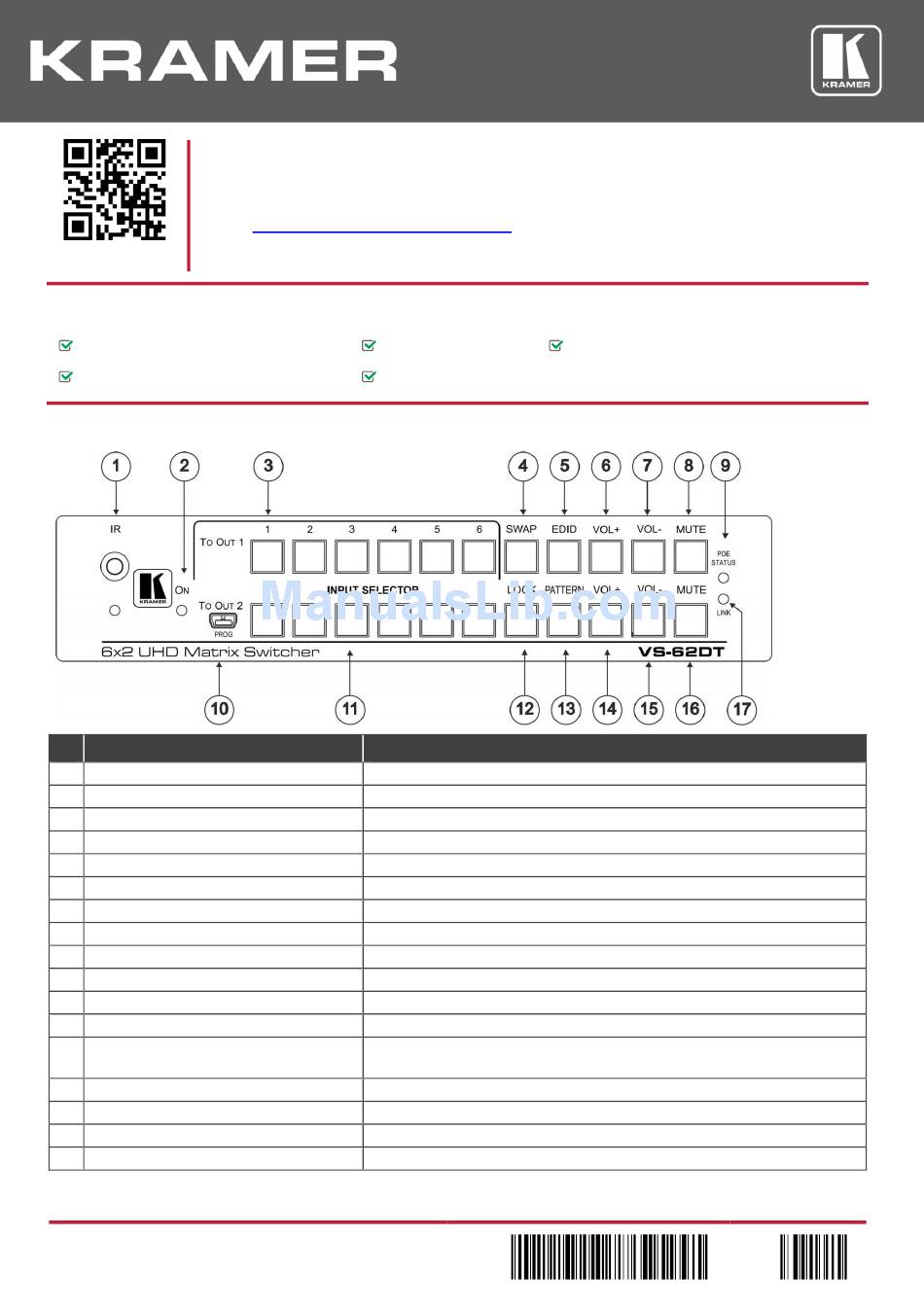

Step 2: Get to know your VS-62DT

# Feature
1 IR Sensor & LED
2 ON LED
3 INPUT SELECTOR TO OUT 1 (1 to 6)
4 SWAP Button
5 EDID Button
6 VOL+ Button
7 VOL- Button
8 MUTE Button
9 POE STATUS LED
10 PROG mini USB connector
11 INPUT SELECTOR TO OUT 2 (1 to 6)
12 LOCK Button
13 PATTERN Button
14 VOL+ Button
15 VOL- Button
16 MUTE Button
17 LINK LED
VS-62DT Quick Start (P/N: 2900-300665QS REV 1)
www.kramerav.com/downloads/VS-62DT
4 Rubber feet
1 Quick start guide
Function
Signal receiver for the infrared remote control transmitter. LED lights yellow
Lights when the unit is powered on
Press one of the six inputs to switch it to Output 1
Press to swap output 1 and output 2 (analog audio only)
Press to capture the EDID
Press to increase the analog audio volume on output 1
Press to decrease the analog audio volume on output 1
Press to toggle muting of output 1 analog audio
Lights when transmitting power over Ethernet to another device
Used for upgrading the firmware
Press one of the six inputs to switch it to Output 2
Press and hold to toggle locking and unlocking the front panel buttons
Press to activate the test pattern generator. When the generator is active, press
one of the input buttons to select a test pattern
Press to increase the analog audio volume on output 2
Press to decrease the analog audio volume on output 2
Press to toggle muting of output 2 analog audio
Lights when there is activity on the HDBaseT connection
to download the latest user manual and check if firmware
IR remote control transmitter with batteries
