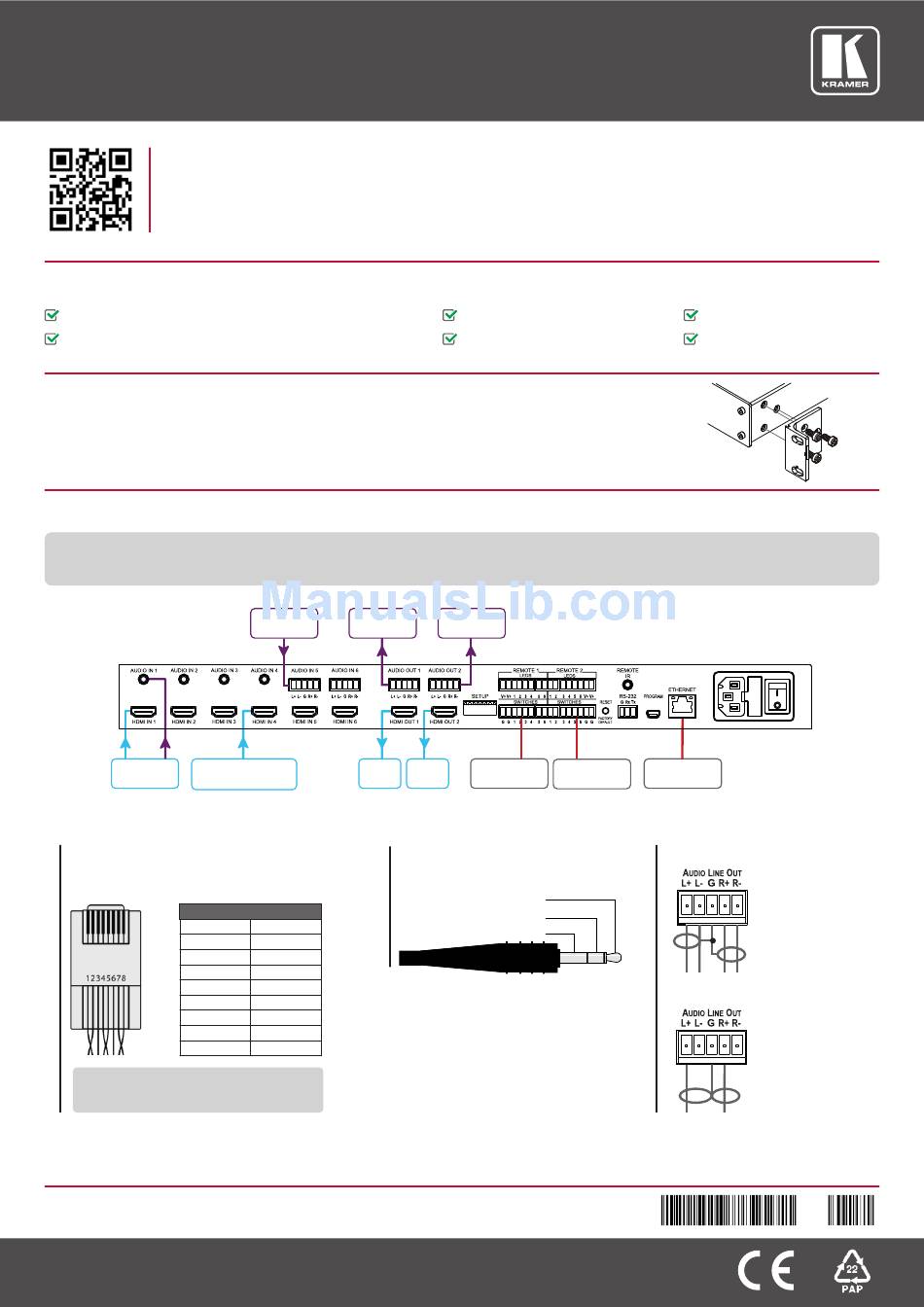

VS-62HA Quick Start Guide
This guide helps you install and use your VS-62HA for the first time. For more detailed information, g
http://www.kramerav.com/manual/VS-62HA to download the latest manual or scan the QR code on the left.
Step 1: Check what's in the box

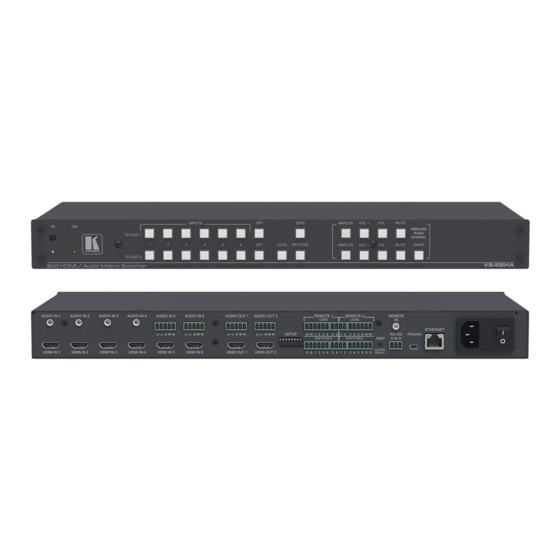

VS-62HA 6x2 HDMI/Audio Matrix Switcher
Ir Remote control transmitter with batteries

Step 2: Install the VS-62HA

To mount the VS-62HA in a rack, attach both "ear" brackets to the machine using the three screws on
each side of the machine. Alternatively, attach the rubber feet to the bottom of the machine and place
it on a table.

Step 3: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your
For best results, always use Kramer high-performance cables to connect your AV equipment to the
Laptop/
VIA Connect PRO
Desktop
RJ-45 Pinout
For the Ethernet and HDBaseT connectors,
see the proper wiring diagram below
EIA / TIA 568B
PIN
1
2
3
4
5
6
7
8
For optimum range and performance use Kramer's
BC-HDKat6a cable. This specially built cable significantly
outperform regular CAT 5/CAT 6 cables.
VS-62HA Quick Start (P/N: 2900-300469QS REV 2)
WWW.KRAMERAV.COM
Dante Audio Audio
Source Receiver
LCD LCD
TV TV
Audio Input
Pinout
Wire Color
Orange / White
Orange
Green / White
Blue
Blue / White
Green
Brown / White
Brown
1 Power cord
1 Quick Start Guide
VS-62HA .
Audio
Receiver
Remote Input
Remote Input
Select Switch
Select Switch
Left
Right
Ground
o to
1 Set of rack "ears"
4 Rubber feet
VS-62HA .
Controller
Line Output Pinout
Balanced
stereo audio output
Balanced
stereo audio output
to unbalanced
acceptor
P/N: Rev:
2 9 0 0 - 3 0 0 4 6 9 QS 2
