Kramer FC-18 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

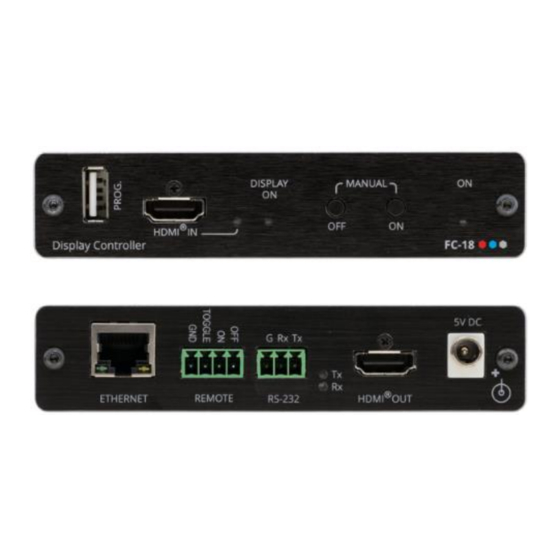

FC-18 Display Controller
1 Power adapter and cord

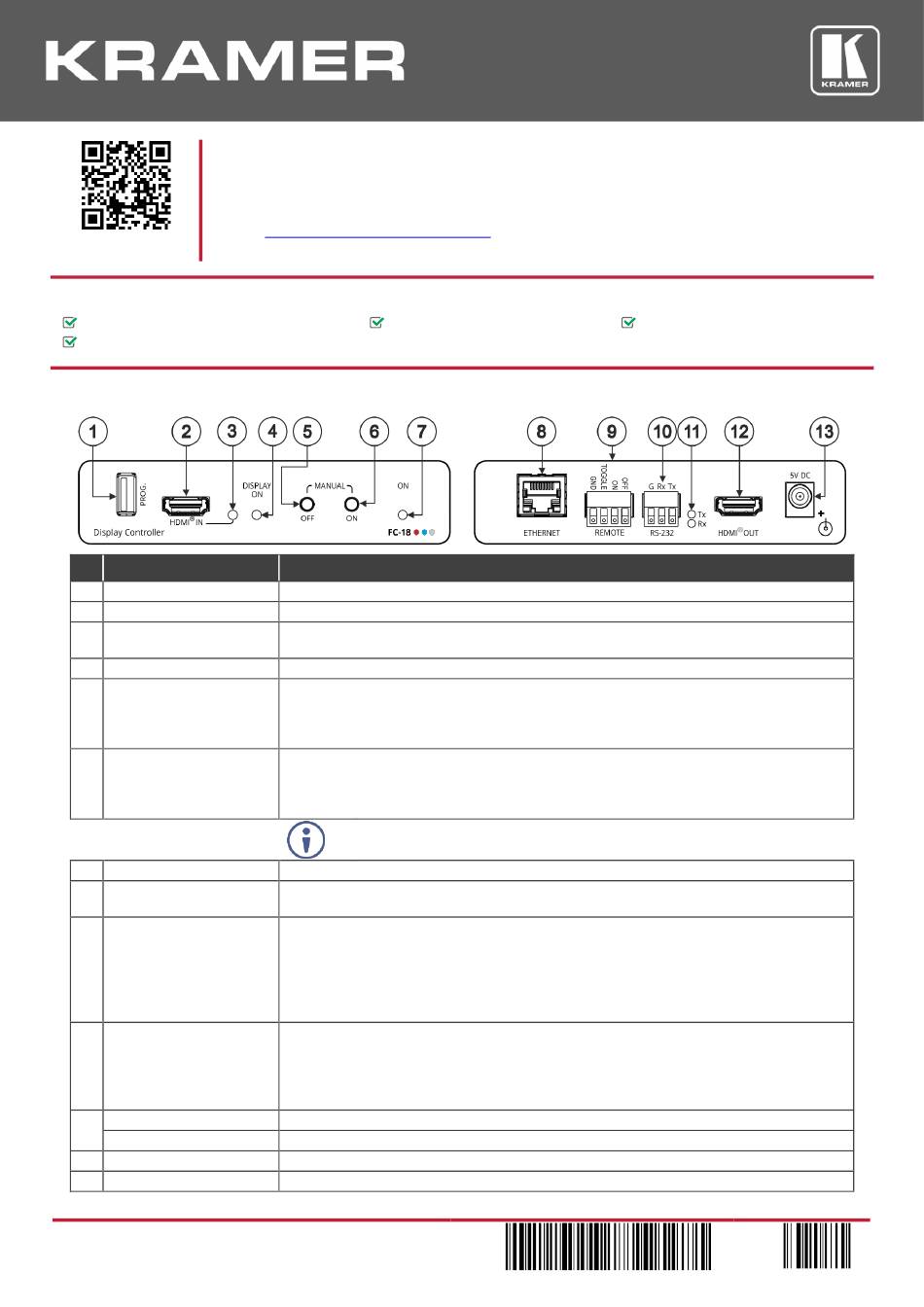

Step 2: Get to know your FC-18

# Feature
1 PROG USB Connector
®
2 HDMI IN Connector
®
3 HDMI IN LED
4 DISPLAY ON LED
5 MANUAL OFF Button
6 MANUAL ON Button
7 ON LED
8 Ethernet RJ-45 Port
9 REMOTE 4-pin Terminal
Block Connector
10 RS-232 3-pin Terminal
Block Connectors
(G, Rx, Tx)
11 Tx LED
Rx LED
®
12 HDMI OUT Connector
13 5V DC Power Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
FC-18 Quick Start (P/N: 2900-301044QS REV 2)
FC-18 Quick Start Guide
This guide helps you install and use your FC-18 for the first time.
Go to www.kramerav.com/downloads/FC-18
upgrades are available.
1 Bracket set
Function
Connect to update the firmware.
Connect to an HDMI source.
Lights green when a valid HDMI signal is detected. The detection is based on the
presence of 5V and a clock signal on the HDMI input.
Lights green when the HDMI acceptor on the output is on.
Press to instruct FC-18 to send a CEC or RS-232 OFF command to the display.
The display remains off (and the DISPLAY ON LED is off) even if the input conditions
dictate to turn the display on. Only after detecting no input signal for a period of over 5
minutes will the trigger-defined input conditions be able to turn the display on once again.
Press to instruct FC-18 to send a CEC or RS-232 ON command to the display.
The display remains on (and the DISPLAY ON LED is on) for an interval of a minimum of
5 minutes. After that time-period, the trigger-defined input conditions will dictate to shut
the display down.
On / off behavior remains the same whether the display is set to ON/OFF
manually or via serial communications.
Lights green when power is connected.
Connect to a PC via a LAN to control the device or to tunnel RS-232 data to the display.
Also use for firmware upgrade.
Connect to contact closure switches (by momentary contact between the desired pin and
GND pin).
TOGGLE – one button toggles between display ON and display OFF (instead of using two
separate buttons for ON and OFF).
ON – turns the display on.
OFF – turns the display off.
Set the function of the RS-232 port via the web pages:
Connect to the display to send RS-232 commands to the display (default) via web pages,
for example. OR,
Connect to the PC or the remote controller to control FC-18 (for example, instructing it to
send a CEC command to send turn the display on or off).
Lights red when RS-232 port transmits data.
Lights green when RS-232 Port receives data.
Connect to an CEC enabled HDMI acceptor.
Connect to the supplied power adapter.
to download the latest user manual and check if firmware
P/N: 2 9 0 0 - 3 0 1 0 4 4 QS
1 Quick start guide
Rev: 2
