Kramer FC-26 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

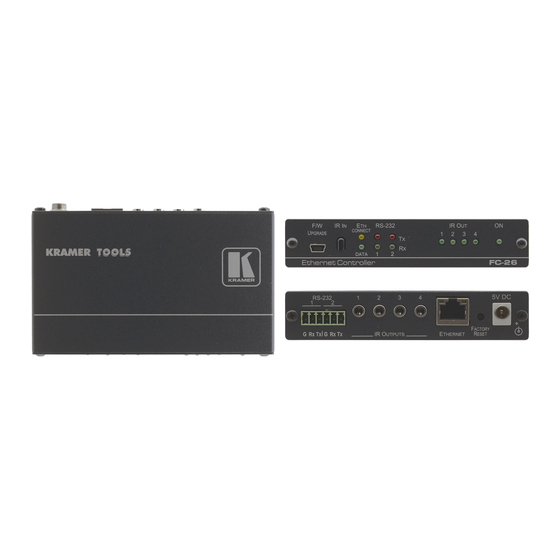

FC-26 Ethernet Controller
1 Power adapter (5V DC)
Step 2: Get to know your FC-26
Front Panel
# Feature
1 F/W UPGRADE Mini USB Connector Connect to a PC to perform a firmware upgrade
2 IR IN Sensor
3 ETH LEDs CONNECT
DATA
4 RS-232 LEDs TX 1
RX 1
5 TX 2
RX 2
6 IR OUT 1 ~ 4 LEDs
7 ON LED
Rear Panel
# Feature
1 RS-232 6-pin Terminal Block
2 IR OUTPUTS 1 ~ 4 3.5mm Mini Jacks
3 ETHERNET RJ-45 Connector
4 FACTORY RESET Button
5 5V DC Connector
FC-26 Quick Start
FC-26 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/FC-26
upgrades are available.
Function
Sensor for IR learning
Lights orange when the Ethernet port is connected
Flashes green when data is transferred over the Ethernet link
Lights green when data Is transmitted on serial port 1
Lights red when data is received on serial port 1
Lights green when data Is transmitted on serial port 2
Lights red when data is received on serial port 2
The associated LED lights green when the relevant IR port transmits data.
When IR learning is in progress, the four IR Out LEDs light and the
unavailable for normal operation
Lights green when the unit is on
Function
1 Connect to the first RS-232 controlled device
2 Connect to the second RS-232 controlled device
Connect to IR blasters/emitters using cables up to 80 m (260ft) long
Connect to a PC or other controller directly or via a LAN
Press and hold while power-cycling the device to reset to factory default
parameters
Connect to the 5V DC power supply, center pin positive. Not needed when the
device is supplied power by a PoE provider
FC-26 for the first time.
to download the latest user manual and check if firmware
1 IR Cable (C-A35M/IRE-10)
4 Rubber feet
P/N: 2 9 0 0 - 3 0 1 2 8 0 QS
1 Quick start guide
FC-26 is
Rev: 3
