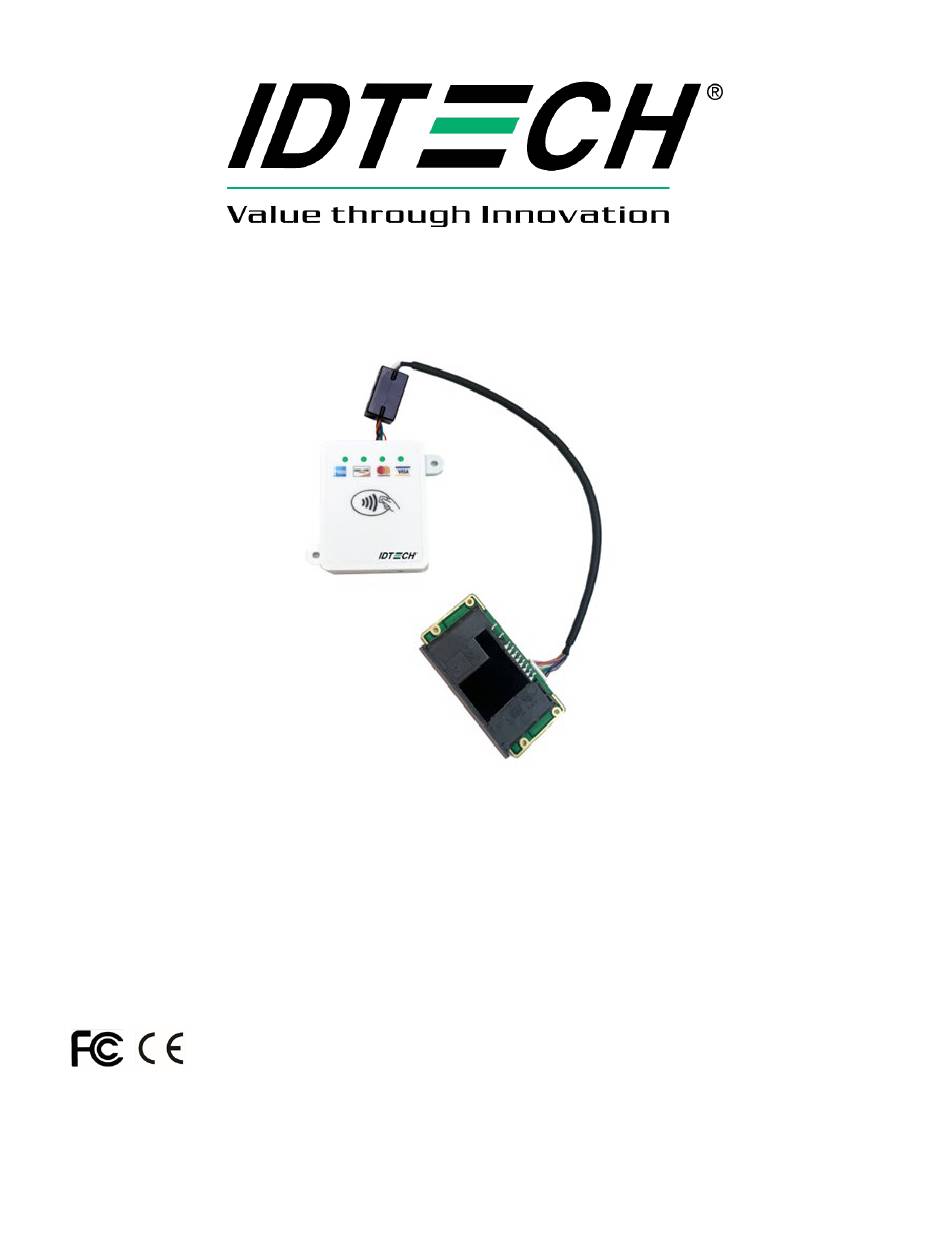

- Page 1 VP3300 OEM EXT User Manual 80149521-001 Rev. B 29 February 2024 ID TECH 10721 Walker Street, Cypress, CA 90630-4720 Tel: (714) 761-6368 Fax (714) 761-8880 www.idtechproducts.com...
- Page 2 ID TECH VP3300 OEM EXT Integration Manual Copyright © 2024 ID TECH. All rights reserved. ID TECH 10721 Walker Street Cypress, CA 90630 USA This document, as well as the hardware and software it describes, is furnished under license and may only be used in accordance with the terms of such license.
- Page 3 ID TECH VP3300 OEM EXT Integration Manual Consult the dealer or an experienced radio/TV technician for help. • This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The NFC antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter and must be installed to provide a separation distance of at least 20cm from all persons.
- Page 4 ID TECH VP3300 OEM EXT Integration Manual Revision History Date Changes 11/22/2023 Initial Release 02/29/2024 Updated mounting diagrams. Page | 4...
-
Page 5: Table Of Contents
5.1. Universal SDK Demo App ..............................11 5.2. Updating Firmware via the USDK Demo App ......................11 6. TROUBLESHOOTING ..................................14 7. VP3300 OEM EXT MOUNTING GUIDELINES AND EMV CONTACTLESS LOGO REQUIREMENTS ......15 7.1. VP3300 OEM EXT Mounting Requirements....................... 15 7.2. Mounting Diagrams ................................16 7.3. -
Page 6: Overview
IP65-rated sealed connector to evolve into the next- generation product. VP3300 OEM EXT is an OEM module that includes a Contact EMV and Contactless NFC reader. The OEM module provides the ultimate flexibility by allowing the ICC connection to be installed remotely from the main contactless module. -
Page 7: Icc Contact Card Features
ID TECH VP3300 OEM EXT Integration Manual 1.4. ICC Contact Card Features EMVCo Contact Level 1 & 2 Compliant • 1.5. Contactless (NFC) Features Poll on Demand Mode: • o EMV CTLS L1 o Visa o Mastercard o AMEX o Discover... -
Page 8: Product Specifications
ID TECH VP3300 OEM EXT Integration Manual 2. Product Specifications Physical Dimensions 64mm x 64mm x 12mm (L x W x H) *Antenna Enclosure (ICC module size is not included) Structure Material Plastic, PC UL 94V-0 Texture MT11010 Weight 66g (Including Cable) Interface USB 2.0, RS232, USB-KB... -
Page 9: Led And Audio State Indicators
ID TECH VP3300 OEM EXT Integration Manual 3. LED and Audio State Indicators Device State LED1 LED2 LED3 LED4 Sound ● ○ ○ ○ Run Mode None blink ● ○ ○ ○ Transaction Started None ● ● ● ● Contactless... -
Page 10: Idtech Universal Sdk: Software Development Support
VP3300 OEM EXT comparatively easy while greatly facilitating debugging. Normally, development of applications that take advantage of VP3300 OEM EXT capabilities can be done in a high-level language like Java or C# (using convenience objects and data structures), obviating the need to send hex-code commands directly via USB-HID. -
Page 11: Updating Firmware
ID TECH VP3300 OEM EXT Integration Manual 5. Updating Firmware ID TECH strongly recommends updating firmware via the Universal SDK. Consult the Universal SDK Guide for your desired platform (included in the ZIP file downloaded from the Kiosk V product page) for integration details. - Page 12 ID TECH VP3300 OEM EXT Integration Manual b. Connect your VP3300 OEM EXT reader to your computer. In the USDK Demo app, select Connection > Connect to Device > Serial Port > VP3300. c. In the Data window, choose COM port 3.
- Page 13 ID TECH VP3300 OEM EXT Integration Manual 5. Locate the directory where you saved the firmware update files and select the firmware update for your connection—either RS-232 or USB-HID. 6. The USDK Demo app will run the firmware update process, which typically takes two to three minutes.
-
Page 14: Troubleshooting
ID TECH VP3300 OEM EXT Integration Manual 6. Troubleshooting The section below provides troubleshooting instructions. Set Configuration Defaults (04-09) Reset the group configurations to factory defaults. Contact (ICC L2) CAPKs are erased. • Do not modify Transaction Category code (tag 9F 53), Terminal IFD Serial Number (tag FF F2), •... -
Page 15: Vp3300 Oem Ext Mounting Guidelines And Emv Contactless Logo Requirements
7. VP3300 OEM EXT Mounting Guidelines and EMV Contactless Logo Requirements Note that if the VP3300 OEM EXT is mounted behind any kind of casing or cover, that assembly MUST follow EMV requirements regarding contactless logo size and position. See... -
Page 16: Mounting Diagrams
ID TECH VP3300 OEM EXT Integration Manual 7.2. Mounting Diagrams The section below provides mounting diagrams for VP3300 OEM EXT readers. Unit: mm Page | 16... -
Page 17: Vp3300 Oem Ext Icc Module Mounting Guidelines
7.3. VP3300 OEM EXT ICC module mounting guidelines When installing an ICC module of VP3300 OEM EXT reader, make sure to have a minimum 0.5mm compression of ICC adhesive in front of the reader’s ICC opening to get good sealing between ICC connector and the mounting surface. -
Page 18: For More Information
ID TECH VP3300 OEM EXT Integration Manual 8. For More Information To learn more about the VP3300 OEM EXT and other ID TECH products, visit the ID TECH • Knowledge Base. Visit us online at http:/ /idtechproducts.com. • Find more Tech Support resources at the...
