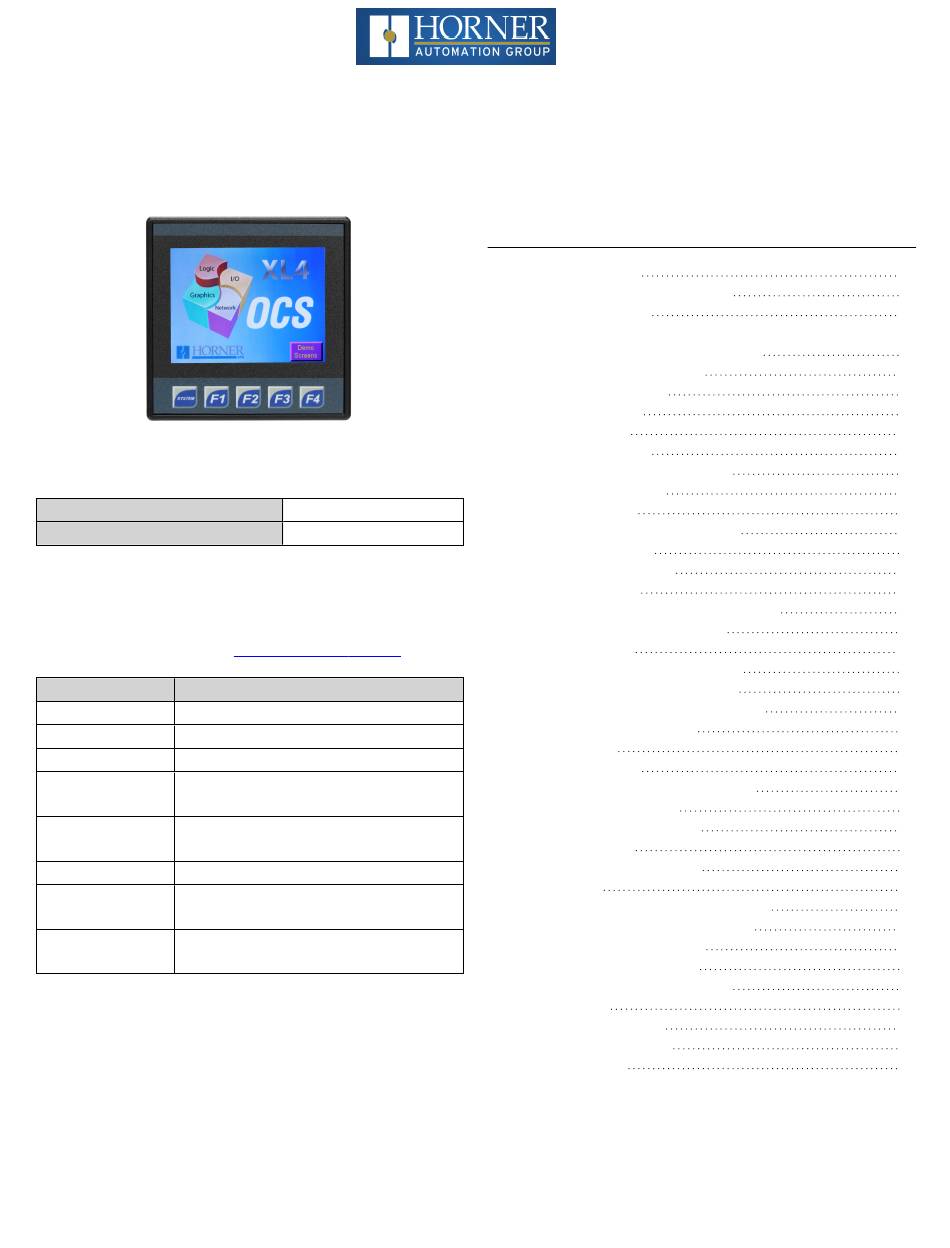

HORNER HE-XPC1E3 User Manual
Hide thumbs Also See for HE-XPC1E3:

Advertisement

Quick Links


Part Numbers
Global Part Number
European Part Number


User Manual and Add-Ons
Find the documents via the Documentation Search.

Part #
MAN0964
XL4 & XL4 Prime User Manual
HE-BAT013
CR2032 Lithium Battery
HE-XCK
Programming Cables
2 channel Analog Output I/O option kit,
HE-XDAC
selectable 0-10V, +/-10V, 4-20mA.
4 channel Analog Output I/O option kit,
HE-XDAC107
selectable 0-10V, +/-10V, 4-20mA.
HE-XKIT
Blank I/O Board
Adapter, RJ45 (8P8C) male to 8-pos-
HE200MJ2TRM
ition terminal strip.
Ferrite core for filtering out electrical
HE-FBD001
noise.


Backup Battery
The XL4 Prime uses a Renata CR2032 lithium battery to
run the Real Time Clock. The battery life is 7-10 years.

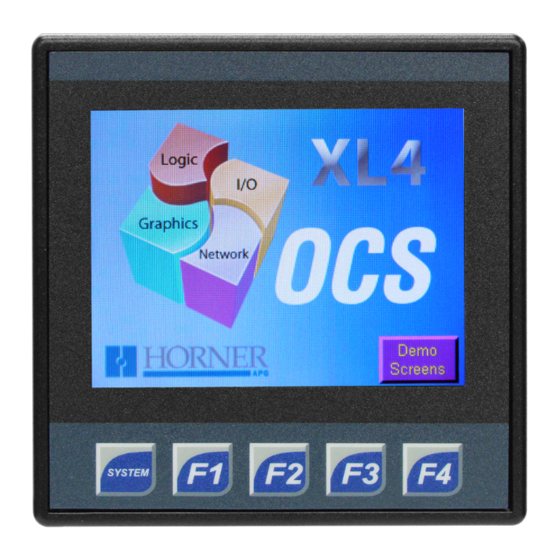

XL4 Prime - Model 3
12 DC In, 12 DC Out, 2 - 12-bit Analog In
MAN1321-21-EN_XL4P_Mod3
HE-XPC1E3
HEXP251C113
Description

Table of Contents



Page 1
1
1
1
2
2
2
2
2
2
3
3
3
4
4
4
4
5
5
5
5
5
6
6
6
6
6
7
7
7
7
7
8
8
8
8
9
9
9
9
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE-XPC1E3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HORNER HE-XPC1E3

  • Page 1: Table Of Contents

    User Manual and Add-Ons Backup Battery TECHNICAL SPECIFICATIONS General Specifications Control and Logic User Interface Connectivity   USB Webcams Part Numbers CONTROLLER OVERVIEW Overview of OCS Power Wiring Global Part Number HE-XPC1E3 MODEL 3 SPECIFICATIONS European Part Number HEXP251C113 Digital DC Input   Digital DC Outputs   Analog Inputs WIRING: INPUTS AND OUTPUTS User Manual and Add-Ons Analog Inputs Information Find the documents via the Documentation Search.  Digital Inputs  ...
  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS General Specifications User Interface Typical   P ower   B ack- Display   T ype 3.5”   T FT Color 407mA @ 10V (4.07W) 192mA @ 24V (4.61W) light 100% Screen   B rightness 640cd/m2   ( nits) Power   B acklight   @   Resolution QVGA   ( 320   x    2 40) 167mA @ 24V (4.01W) Color 16-bit  ...
  • Page 3: Controller Overview

    CONTROLLER OVERVIEW Overview of OCS Power Wiring NOTE: The Primary Power Range is 10VDC to 30VDC.     Primary Power Port Pins Signal Description Ground Frame Ground Input Power Supply Ground Input Power Supply Voltage     DC Input / Frame   Solid/Stranded Wire: 12-24 awg (2.5-0.2mm)   Strip length: 0.28” (7mm)   Torque, Terminal Hold-Down Screws: 4.5 – 7 in-lbs  (0.50 – 0.78 N-m)   DC- is internally connected to I/O V-, but is isolated  from CAN V-. A Class 2 power supply must be used.         Power Up  1. ...
  • Page 4: Model 3 Specifications

    Wiring: Model 3   MODEL 3 SPECIFICATIONS   Digital DC Input Analog Inputs 12   I ncluding   4    C onfigurable HSC  Number   o f   Inputs   p er   M odule Inputs Channels Commons   p er   M odule 0   –    1 0VDC Input   V oltage   R ange 12VDC  ...
  • Page 5: Wiring: Inputs And Outputs

    Wiring: Model 3   WIRING: INPUTS AND OUTPUTS Jumper Settings for Model 3 Analog Inputs Information Raw input values for channels 1-4 are found in the registers  as Integer- type data with a range from 0 – 32000.   Analog inputs may be filtered digitally with the Filter Con- stant found in the Cscape Hardware Configuration for Ana- log Inputs. Valid filter values are 0-7 and act according to  the following chart:  Location of I/O jumpers (JP1 & JP3) and wiring connectors (J1, J2, J3 & J4) with back cover removed.      JP1 Digital DC Inputs   Data Values Input Mode: Data Format,   1 2-bit   I NT: 0-20mA,   4 -20mA 0-32000 0-10V 0-32000...
  • Page 6: J1 Wiring - Digital In / Analog In

    Wiring: Model 3 J1 Wiring - Digital In / Analog In Built-In I/O The I/O is mapped into OCS Register space, in three sep- arate areas: Digital/Analog I/O, High-Speed Counter I/O,  and High-speed Output I/O. Digital/Analog I/O location is  fixed starting at 1, but the high-speed counter and high- speed output references may be mapped to any open  register location.    Digital and Analog I/O Function Registers Digital Inputs %I1-12 Reserved %I13-31 ESCP Alarm %I32 Digital Outputs %Q1-12 Reserved %Q13-24 Analog Inputs %AI1-2 Reserved %AI3-12...
  • Page 7: Communications

    COMMUNICATIONS Serial Communication CAN Communications MJ1/2 Serial Ports 2 Serial Ports on 1 Module Jack (8posn)    MJ1: RS-232 w/Full Handshaking    MJ2:   R S-485 Half-Duplex CAN Pin Assignments   SIGNAL DESCRIPTION MJ1 PINS MJ2 PINS CAN Ground – Black SIGNAL DIRECTION SIGNAL DIRECTION CN_L CAN Data Low – Blue SHLD Shield Ground – None CN_H CAN Data High – White GROUND GROUND +5V   @    +5V  ...
  • Page 8: Dimensions & Installation

    DIMENSIONS & INSTALLATION XL4 & XL4 Prime Dimensions Installation Information     The XL4/XL4 Prime utilizes a clip installation method  to ensure a robust and watertight seal to the enclos- ure. Please follow the steps below for the proper  installation and operation of the unit.   This equipment is suitable for Class I, Division 2,  Groups A, B, C and D or non-hazardous locations  only.   Digital outputs shall be supplied from the same  source as the operator control station.   Jumpers on connector JP1 shall not be removed or  replaced while the circuit is live unless the area is  known to be free of ignitable concentrations of flam- mable gases or vapors.   WARNING- The USB ports are for operational main- tenance only.   D o not leave permanently connected  unless area is known to be non-hazardous.       Installation Procedure  1.  Carefully locate an appropriate place to mount the  OCS Be sure to leave enough room at the top of the ...
  • Page 9: Safety & Maintenance

    This device complies with Part 15 of the FCC Rules. Operation is  aging voltage potential between the laptop and controller.   subject to the following Ensure the controller       a nd laptop are grounded for max- two conditions: imum protection. Consider using a USB isolator due to        1.  This device may not cause harmful interference. voltage potential differences as a preventative measure.  2.  This device must accept any interference received, includ-   ing interference that may cause undesired operation.        Technical Support North America 1 (317) 916-4274 (877) 665-5666 www.hornerautomation.com techsppt@heapg.com   Europe +353 (21) 4321-266 www.hornerautomation.eu technical.support@horner-apg.com       Page 9...

This manual is also suitable for:

Xl4 prime 3Hexp251c113
