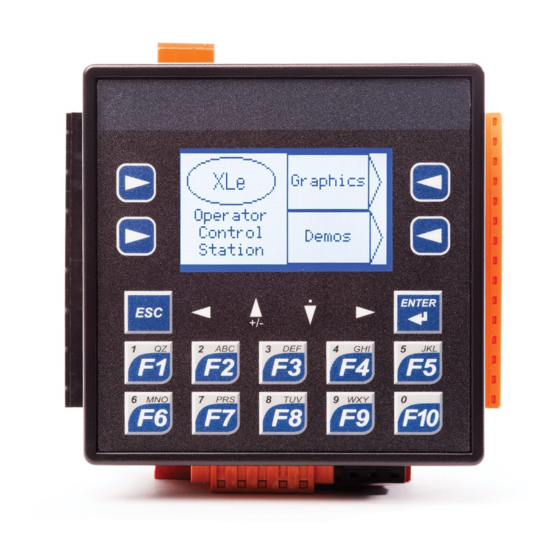

XLE/XLEe (Legacy and Gen. 2) Firmware Update Manual
Introduction
This guide details how to update or change firmware on the Horner OCS Controllers. Updating firmware to the newest
version adds new benefits to the controller. Also, changing firmware is necessary when changing communications
between CsCAN and CANopen.
WARNING: Firmware updates should only be performed when the equipment being controlled by the
OCS is in a safe, non-operational state. Communication or hardware failures during the firmware
update process can cause the controller to behave erratically resulting in injury or equipment
damage. Make sure the functions of the equipment work properly after a firmware update before
returning the device to an operational mode.

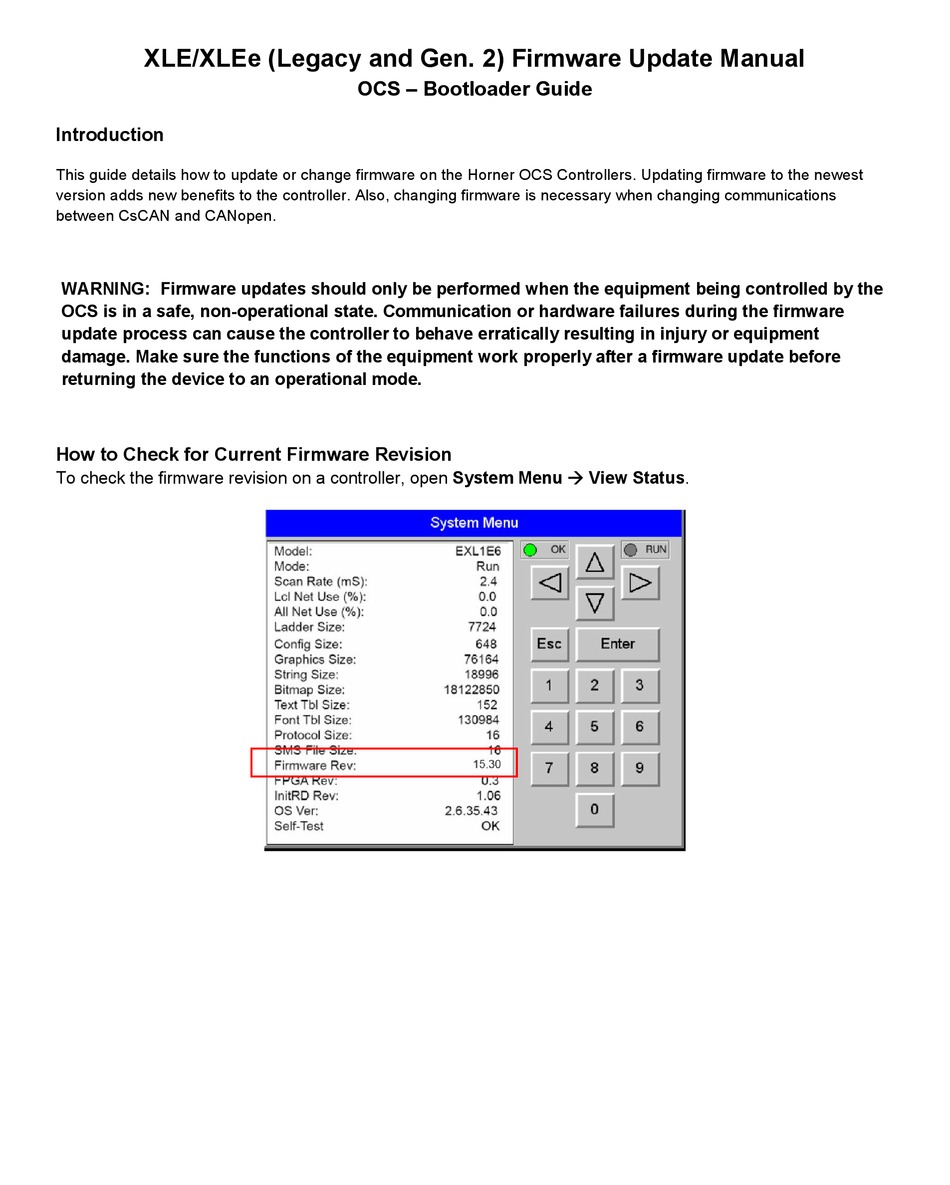

How to Check for Current Firmware Revision
To check the firmware revision on a controller, open System Menu View Status.
OCS – Bootloader Guide
Advertisement
Table of Contents
Related Manuals for HORNER XLE
Summary of Contents for HORNER XLE
- Page 1 OCS – Bootloader Guide Introduction This guide details how to update or change firmware on the Horner OCS Controllers. Updating firmware to the newest version adds new benefits to the controller. Also, changing firmware is necessary when changing communications between CsCAN and CANopen.
- Page 2 2) Save Firmware files to microSD card or USB, these are the removable media devices. 3) Update the firmware through the controller’s Firmware Update function NOTE: Files from the Horner website come as a .ZIP file which need to be unzipped and placed in the root of the drive for them to function properly.
- Page 3 Update firmware in an XLE (Legacy) by completing the following steps: a. Connect to the MJ1/Port 1 programming port with Cscape software. b. Run the executable file downloaded from the Horner website (Step One), which will place firmware files in default folder locations.
