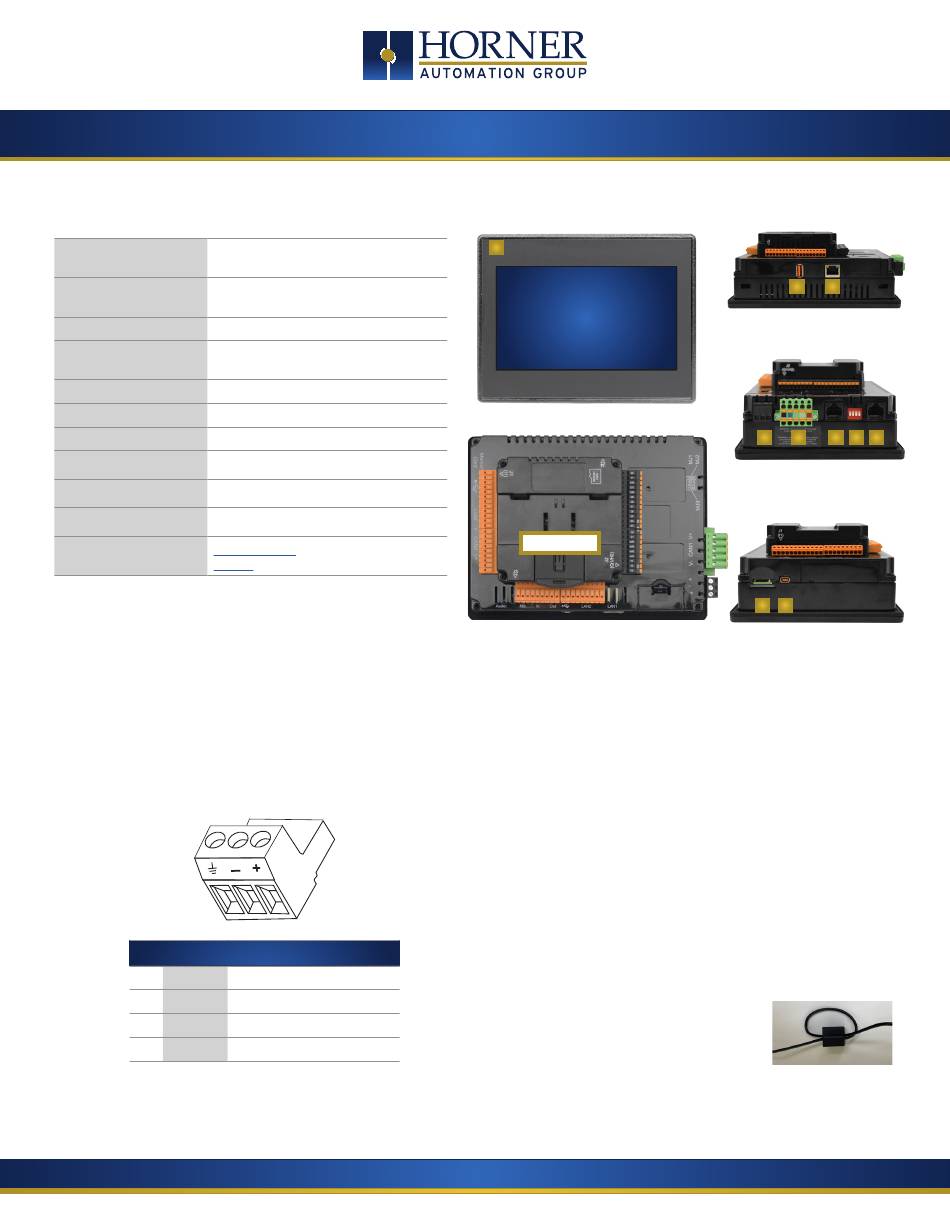

XLW PRIME QUICK REFERENCE GUIDE

General Specifications

Required Power
25A for < 1ms @ 24VDC, DC switched
(Inrush)
Primary Power Range
10 - 30VDC
Relative Humidity
5 to 95% non-condensing
+ / - 20 ppm maximum at 25°C
Clock Accuracy
(+/- 1 min/month)
Real Time Clock
Battery Backed, Lithium Coin
Operating Air Temp
-10°C to +60°C
Storage Temp
-20°C to +60°C
Weight
3.9375 lbs (1786g)
Altitude
Up to 2000m
Rated Pollution Degree
Evaluated for Pollution Degree 2 Rating
Certifications
North America
(UL/CE)
Europe

Power Wiring

Primary Power Port Pins

PIN
SIGNAL
1
Ground
2
DC-
3
DC+
Indianapolis, USA | Cork, Ireland | Calgary, Canada | Bangalore, India | Oakleigh, Australia | Tianjin, China | Esteio, Brazil
Please visit our website for a complete listing and to learn more about certified Horner Automation products.
This document is the property of Horner Automation Group, and is subject to change.
DESCRIPTION
Frame Ground
Input Power Supply Ground
Input Power Supply Voltage

XLW Prime Overview

1
XLW
Prime
Built-in I/O
1. Touchscreen
2. USB 2.0 "A": Flash Drive
3. LAN Port
4. PWR: 10-30VDC In
5. CAN Port
NOTE: See Precaution #12 on page 4 about USB and grounding.
DC Input / Frame
Solid/Stranded Wire: 12-24 awg (2.5-0.2mm).
Strip length: 0.28" (7mm).
Torque, Terminal Hold-Down Screws: 4.5 – 7 in-lbs (0.50 – 0.78 N-m).
DC- is internally connected to I/O V-, but is isolated from CAN V-.
A Class 2 power supply must be used.
POWER UP
1. OPTION: Attach ferrite core with a minimum of
two turns of the DC+ and DC- signals from the DC
supply that is powering the controllers.
2. Connect to earth ground.
3. Apply recommended power.
page 1 of 4
2
3
4
5
6
7
9
10
6. MJ3: RS-232/485
7. Dip Switches
8. MJ1/MJ2: RJ45 Serial Port
9. microSD: Data Storage
10. USB mini "B": Programming
4/27/2022 | MAN1339-01-EN
8
