HORNER XLE Series Datasheet

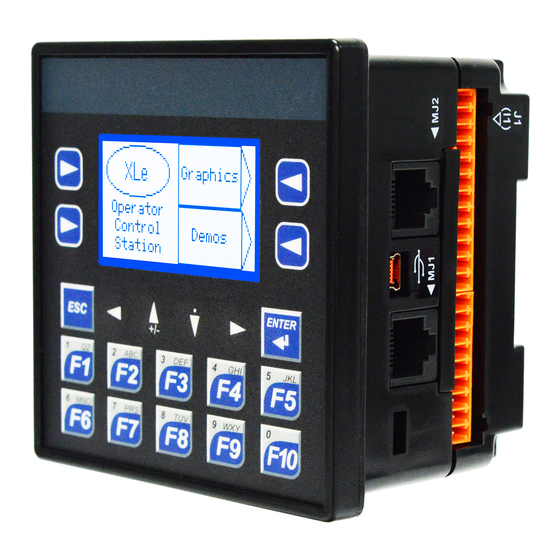

XLE MODEL
12 DC In, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out
1 TECHNICAL SPECIFICATIONS
1.1 General
Primary Pwr. Range 10–30VDC
Required Power
130mA @ 24VDC
(Steady State)
250mA @ 24VDC
with Heater Operating
-22 Heater Option
*Heater Option - Model#
plus "-22
Typical power-back- 339mA @ 10V (3.39W)
light 100% 182mA @ 24V (4.36W)
Power Backlight Off 15mA @ 24V (0.36W)
Power Ethernet 35mA @ 10V (0.35W)
Models 20mA @ 24V (0.48W)
30A for < 1ms
Inrush Current
Battery backed;
Real Time Clock
lithium coin cell CR2450
+/- 90 Secs/Month at
Clock Accuracy
25°C
5 to 95%
Relative Humidity
Non-condensing
Operating Temp. -10°C to +60°C
-22 Heater Option -40°C to +50°C
Storage Temp. -20°C to +60°C
0.75 lbs / 340 g
Weight
(without I/O)
Altitude Up to 2000m
Rated Pollution Evaluated for Pollution
Degree Degree 2 rating
Certifications North America
(UL/CE) Europe
XLE/XLT User Manual
[MAN0878]
The User Manual includes extensive information
on:
• Built-in I/O
• Common %S & %SR Registers
• HSC/PWM/Totalizer/Quadrature &
Accumulator Registers
• Resource Limits
Indianapolis, USA | Cork, Ireland | Calgary, Canada | Bangalore, India | Oakleigh, Australia | Tianjin, China | Esteio, Brazil
Please visit our website for a complete listing and to learn more about certified Horner Automation products.
This document is the property of Horner Automation Group, and is subject to change.
XLE & XLT OCS DATASHEET
Rev T or Later [Europe: XLE - Rev R or later, XLT - Rev K or Later]
1.2 User Interface
Display Type
Resolution
Color
Built-In Storage
User-Program.
Screens
Backlight
Backlight Lifetime
Brightness Control
Number of Keys
Touchscreen (XLTe)
1.3 Connectivity
Serial Ports
USB Micro-B
CAN
CAN Protocols
Ethernet
Ethernet Protocols
Remote I/O
Removable Memory
Audio (XLTe only)
MODEL 5
XLEe and XLTe = Ethernet Versions
Transflective LCD
Sunlight Readable
128 x 64 pixels (XLE)
160 x 128 pixels (XLT)
Monochrome
16MB
1023 max pages;
50 objects per page
LED
30,000+ hrs
0-100% (XLT)
On/Off (XLE)
via %SR57
20 (XLE)
5 (XLTe
Resistive 1,000,000+
touch life
RS-232 full handshaking or
RS-485 half duplex on first
Modular Jack (MJ1)
RS-232 or RS-485 on
second Modular Jack (MJ2)
Programming only
1 x CAN Port, Isolated 1 kV
CsCAN, CANopen,
DeviceNet, J1939
Ethernet versions only
TCP/IP, Modbus TCP,
FTP, SRTP, EGD, ICMP,
ASCII
SmartRail, SmartStix,
SmartBlock, SmartMod
microSD, SDHC, SDXC
IN FAT32 format,
support for 32GB max.
Application Updates,
Datalogging, and more
Beeper, System or
Software Controlled
page 1 of 7
XLT MODEL
1.4 Control & Logic
Advanced Ladder
Control Lang.
Logic Full IEC 61131-3
Support
Languages
Logic Program Size 256kB
0.7ms/kB (XLE)
Logic Scan Rate
0.8ms/kB (XLT)
Digital Inputs 2048
Digital Outputs 2048
Analog Inputs 512
Analog Outputs 512
9,999 (words) Retentive
Gen. Purpose
2,048 (bits) Retentive
Registers
2,048 (bits) Non-retentive
1.5 High-Speed Inputs
Number of Counters 4
Maximum Frequency 500kHz each
Accumulator Size 32-bits each
Totalizer, quadrature, pulse
measurement, frequency
Modes Supported
measurement, set-point
controlled outputs
1.6 High-Speed Outputs
Modes Supported Stepper, PWM
10kHz or 65kHz with
Output Frequency
HE-XHSQ
Wiring Details:
Solid/Stranded Wire: 12-24 awg (2.5-0.2mm
Strip Length: 0.28" (7mm).
Torque Rating: 4.5 – 7 in-lbs (0.50 – 0.78 N-m).
technical specifications continued on next page...
