Wyrestorm EX-70-G2 Series Quick Start Manual page 2

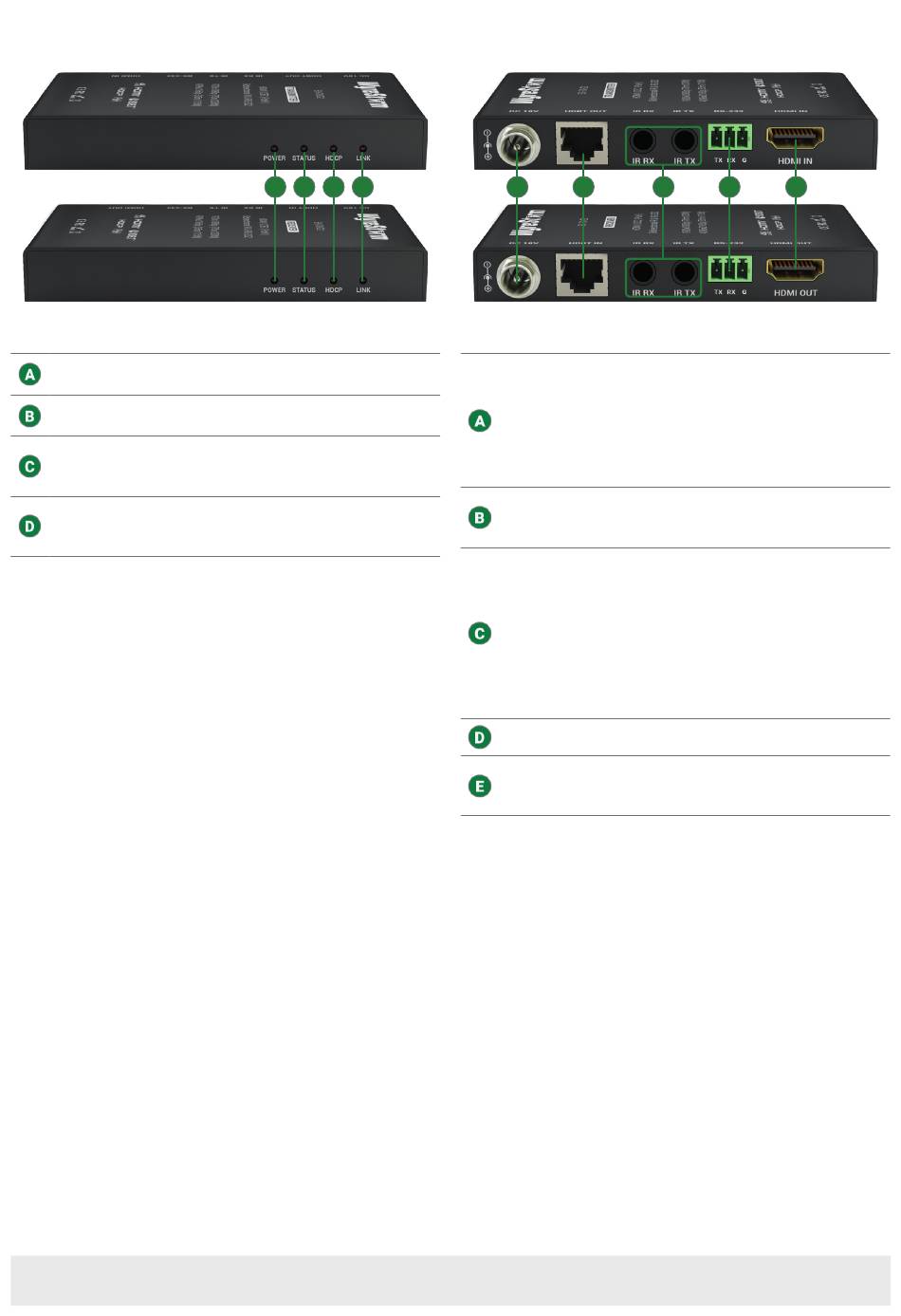

Front Panel (TX/RX)
EX-70-G2 Transmitter
EX-70-G2 Receiver
Solid: The receiver is powered On
Power LED
Off: The receiver is powered Off
Flashing: The receiver is operating normally.
Status LED
Off: The receiver is Not operating normally.
Solid: HDCP content is present.
HDCP LED Flashing: HDCP content is not present.
Off: No signal.
Solid: Link to receiver has been established.
LINK LED Flashing: Link to receiver has not been
established.
Copyright © 2018 WyreStorm Technologies |
EX-70-G2 Quickstart Guide | 180919
A B C D
wyrestorm.com
Rear Panel (TX/RX)
EX-70-G2 Transmitter
A B
EX-70-G2 Receiver
Power Input
HDBT In
HDBT Out
IR TX/RX
RS-232
HDMI In (TX)
HDMI Out (RX)
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
2 of 4
C D E
5.5mm Screw Down Barrel Jack
Connect to the included 18V DC 1A power
supply to the transmitter or receiver. A power
supply is not required on the other end as it
will be powered using PoH.
See Power Supply Wiring for important
information.
8-pin RJ-45 female
Connect the transmitters HDBT Out to
receivers HDBT In.
IR TX - 3.5mm (1/8in) Mono Jack: Connect
to the supplied IR emitter to control a local
device from the remote display location via
HDBaseT.
IR RX - 3.5mm (1/8in) Stereo Jack: Connect
to the supplied IR receiver to send IR to the
remote display location via HDBaseT.
See IR TX/RX Guidelines for more
information.
1x RS-232: 3-pin Phoenix (v2 chassis only)
19-pin type A HDMI female
Supports HDMI and DVI/D (requires adapter -
not included).
