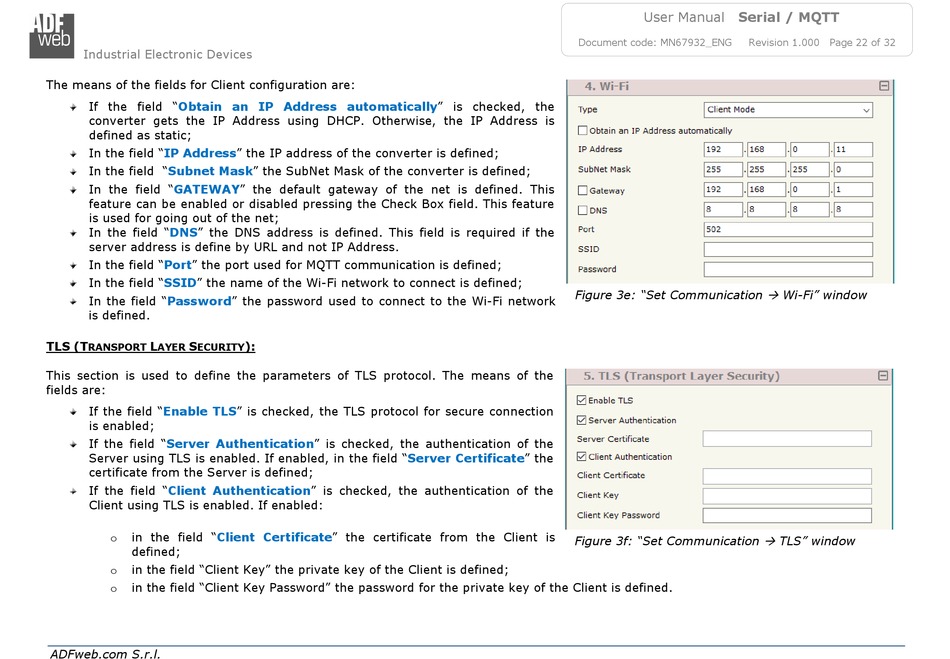

ADF Web HD67932-B2 Series User Manual page 22

Industrial Electronic Devices
The means of the fields for Client configuration are:
If the field "Obtain an IP Address
converter gets the IP Address using DHCP. Otherwise, the IP Address is
defined as static;
In the field "IP Address" the IP address of the converter is defined;
In the field "Subnet Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "DNS" the DNS address is defined. This field is required if the
server address is define by URL and not IP Address.
In the field "Port" the port used for MQTT communication is defined;
In the field "SSID" the name of the Wi-Fi network to connect is defined;
In the field "Password" the password used to connect to the Wi-Fi network
is defined.
TLS (T L S
RANSPORT AYER ECURITY
This section is used to define the parameters of TLS protocol. The means of the
fields are:
If the field "Enable TLS" is checked, the TLS protocol for secure connection
is enabled;
If the field "Server Authentication" is checked, the authentication of the
Server using TLS is enabled. If enabled, in the field
certificate from the Server is defined;
If the field "Client Authentication" is checked, the authentication of the
Client using TLS is enabled. If enabled:
in the field "Client
o
defined;
in the field "Client Key" the private key of the Client is defined;
o
in the field "Client Key Password" the password for the private key of the Client is defined.
o
ADFweb.com S.r.l.
automatically" is checked, the
):
"Server
Certificate" the certificate from the Client is
Document code: MN67932_ENG
Figure 3e: "Set Communication
Certificate" the
Figure 3f: "Set Communication
User Manual Serial / MQTT
Revision 1.000
 Wi-Fi" window
 TLS" window
