FUNCTION MODES:

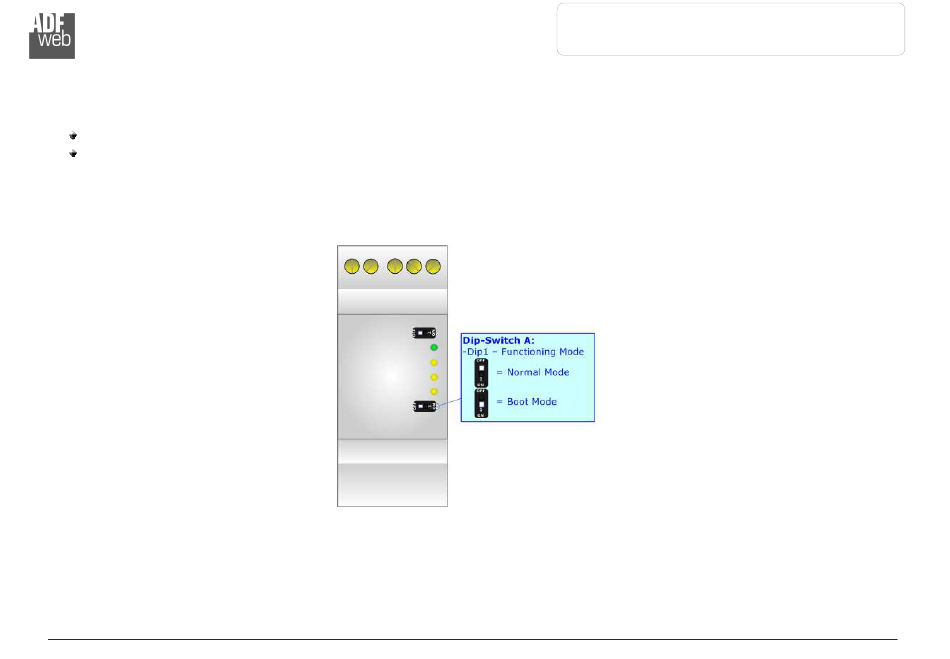

The device has got two functions mode depending of the position of the 'Dip1 of Dip-Switch A':
The first, with 'Dip1 of Dip-Switch A' at "OFF" position, is used for the normal working of the device.
The second, with 'Dip1 of Dip-Switch A' at "ON" position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see 'UPDATE DEVICE' section.
According to the functioning mode, the LEDs will have specifics functions, see 'LEDS' section.
ADFweb.com S.r.l.
User Manual Modbus Slave / MQTT
Document code: MN67934_ENG
Revision 1.001
Page 8 of 33
