VQZ200

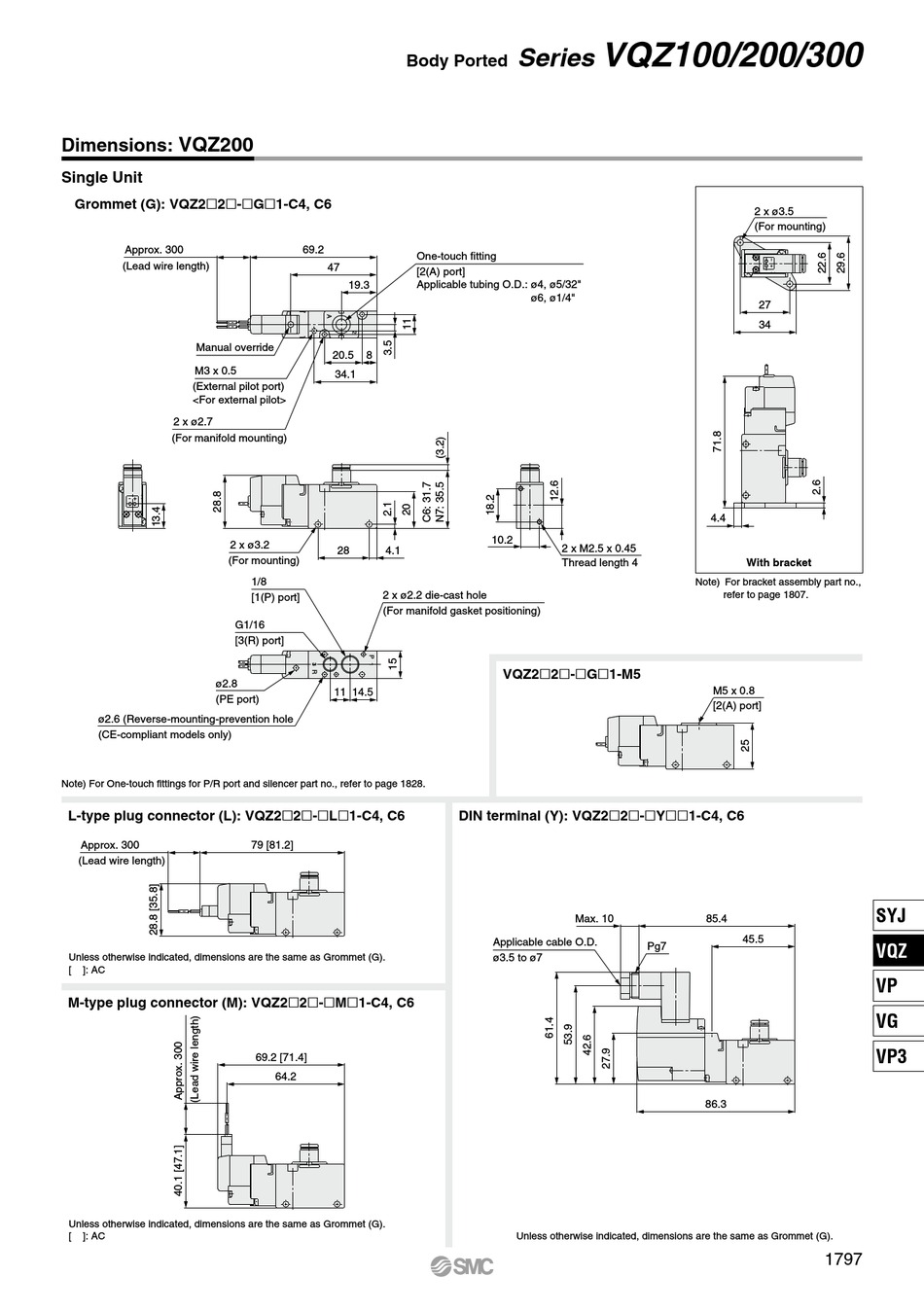

Dimensions:
Single Unit
Grommet (G): VQZ22-G1-C4, C6
Approx. 300
(Lead wire length)
Manual override
M3 x 0.5
(External pilot port)
<For external pilot>
2 x ø2.7
(For manifold mounting)
- +
2 x ø3.2
(For mounting)
G1/16
[3(R) port]
ø2.8
(PE port)
ø2.6 (Reverse-mounting-prevention hole
(CE-compliant models only)
Note) For One-touch fittings for P/R port and silencer part no., refer to page 1828.
L-type plug connector (L): VQZ22-L1-C4, C6
Approx. 300
(Lead wire length)
Unless otherwise indicated, dimensions are the same as Grommet (G).
[ ]: AC
M-type plug connector (M): VQZ22-M1-C4, C6
Unless otherwise indicated, dimensions are the same as Grommet (G).
[ ]: AC
Body Ported
69.2
One-touch fitting
47
[2(A) port]
19.3 Applicable tubing O.D.: ø4, ø5/32"
20.5 8
34.1
28 4.1
1/8
2 x ø2.2 die-cast hole
[1(P) port]
(For manifold gasket positioning)
11 14.5
79 [81.2]
69.2 [71.4]
64.2
VQZ100/200/300
Series
ø6, ø1/4"
10.2
2 x M2.5 x 0.45
Thread length 4
VQZ22-G1-M5
DIN terminal (Y): VQZ22-Y1-C4, C6
Max. 10
Applicable cable O.D.
ø3.5 to ø7
Unless otherwise indicated, dimensions are the same as Grommet (G).
2 x ø3.5
(For mounting)
27
34
4.4
With bracket
Note) For bracket assembly part no.,
refer to page 1807.
M5 x 0.8
[2(A) port]
85.4
45.5
Pg7
86.3
SYJ
VQZ VQZ
VP
VG
VP3
1797
