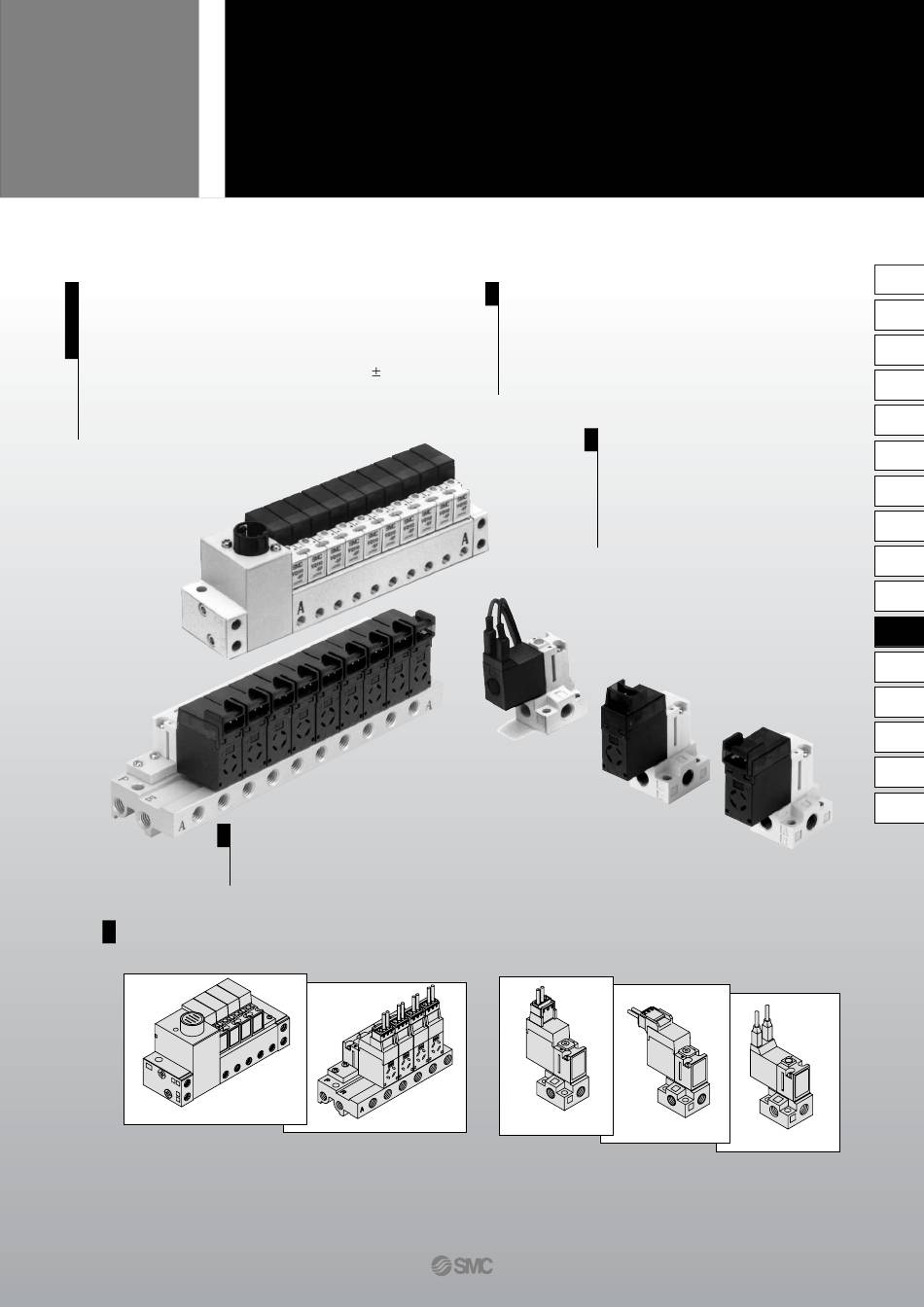

3 Port Solenoid Valve
Series
Outstandingly high speed,
stable response, and long
service life.
ON: 3.5 ms, OFF: 2 ms, Dispension accuracy
(With light/surge voltage suppressor; supply
pressure 0.5 MPa)
200 million cycles or more (Factors determined in a
life test by SMC)
Copper-free
The fluid contacting section is copper-free and the
standard style can be used as it is.
Wide variations of wiring
Manifold

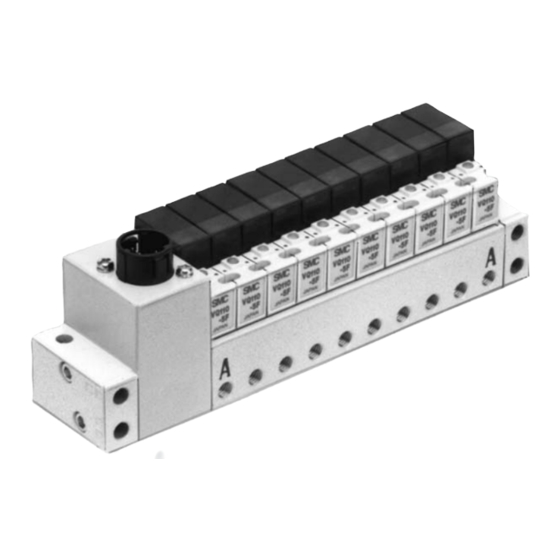

Plug-in unit manifold
VQ100
1 ms
Plug lead unit manifold
Compact yet provides a
large flow capacity
Body width: 9.8 mm
C: 0.055 dm
/(s·bar)(Standard, high pressure type)
3
C: 0.14 dm
/(s·bar) (Large flow type)
3
: Option
Option
External non-leak
Latching
Negative COM
AC
Normally open
Vacuum
Single Valve Unit
L plug connector
M plug connector
V100
SY
SYJ
VK
VZ
VT
VP
VG
VP
S070
VQ
VKF
VQZ
VZ
VS
VFN
Grommet
4-12-1
Advertisement
Related Manuals for SMC Networks VQ100 Series
Summary of Contents for SMC Networks VQ100 Series
- Page 1 3 Port Solenoid Valve VQ100 Series V100 Outstandingly high speed, Compact yet provides a large flow capacity stable response, and long service life. Body width: 9.8 mm C: 0.055 dm /(s·bar)(Standard, high pressure type) ON: 3.5 ms, OFF: 2 ms, Dispension accuracy 1 ms C: 0.14 dm /(s·bar) (Large flow type)
-
Page 2: Manual Override Operation
VQ100 Series Precautions Be sure to read before handling. For Safety Instructions and Solenoid Valve Precautions, refer to page 4-18-2. Manual Override Operation How to Use Plug Connector Warning Caution If the manual override is manipulated, since any connected Attaching and detaching connectors equipment will be activated, make sure to be done only after no To attach a connector, hold the lever and connector unit danger is confirmed. - Page 3 VQ100 Series Precautions Be sure to read before handling. For Safety Instructions and Solenoid Valve Precautions, refer to page 4-18-2. How to Use Plug Connector Light/Surge Voltage Suppressor Caution Caution Wiring specifications For latching type, set energizing side and reset the energizing side are indicated with orange and green respectively.
- Page 4 VQ100 Series Precautions Be sure to read before handling. For Safety Instructions and Solenoid Valve Precautions, refer to page 4-18-2. How to Use Circular Connector How to Connect/Disconnect DIN Rail (For plug-in manifold: For VV3Q11) Caution Caution Removal 1. Attaching and detaching connectors 1.
- Page 5 For details about the applicable products conforming to international standards, visit us at www.smcworld.com. 3 Port Solenoid Valve VQ100 Series How to Order Valves VQ1 1 0 Series VQ Compact 3 port valve Port size Without sub-plate Type of actuation With sub-plate N.C.
-
Page 6: Standard Specifications
VQ100 Series 3 Port Solenoid Valve Standard Specifications Standard type High pressure type Low wattage type Type Item (1 W) (1.5W) (0.5 W) 3 port direct operated poppet (NC) Valve construction Fluid Air/Inert gas Maximum operating pressure 0.7 MPa 0.8 MPa 0.7 MPa 0 MPa (–0.1 MPa ) Minimum operating pressure... - Page 7 VQ100 Series Option Normally open Type Latching type AC type Large flow type Item type VQ110- „ VQ110L-„ VQ110U-„ VQ120-„ Model 0.7 MPa 0.6 MPa 0.5 MPa Maximum operating pressure (4 )(5 ) Ambient and fluid temperature 0 MPa(—100 MPa C[dm /(s·bar)] 0.042...
-
Page 8: Component Parts
VQ100 Series 3 Port Solenoid Valve Construction V100 R A P S070 (For N.C. valve) Component Parts Description Material Solenoid coil — Resin Body Fixed iron core Stainless steel Movable iron core assembly Stainless steel, Resin Return spring Stainless steel Poppet Round head combination screw Carbon steel... - Page 9 VQ100 Series How to Order Valves VQ1 1 0 Series VQ Compact 3 port valve Port size Type of actuation Without sub-plate With sub-plate N.C. (Normally closed) Note) With sub-plate N.O. (Normally open) Note) Normally open type is available only with Manual override standard type.
- Page 10 VQ100 Series 3 Port Solenoid Valve Dimensions L plug connector 35.1 VQ1„0„-„L„-M5 (M3) Manual override Lead wire color: Black V100 Lead wire color: Red ø Mounting hole 18.1 Latching, AC, Large flow type Locking type manual override 3-M5,(M3) S070 (30) •...
- Page 11 VQ100 Series How to Order Manifold How to Order Manifold Assembly Specify the part numbers for valves and options Plug-in unit together beneath the manifold base part number. VV3Q 1 1 08 C U 1 manifold <Example> Plug-in unit manifold with cable (3 m) Applicable solenoid valve VV3Q11-05CU2···1 set Manifold base part no.
- Page 12 VQ100 Series 3 Port Solenoid Valve Plug-in Unit (VV3Q11) Manifold with Multi-connector The broken line indicates DIN rail mounting style (-D) and side entry connection (S). V100 (L5) Plug assembly ø (L4) 4.5 mounting hole VVQ100-12A- (L3) (8.5) 48.7 R11 (Min. bending inner radius) 21.5 Manual override (29.3)
- Page 13 VQ100 Series How to Order Manifold How to Order Manifold Assembly Specify the part numbers for valves and options together beneath the Plug lead unit manifold base part number. VV3Q1 08 01N manifold <Example> Applicable solenoid valve Plug-in unit manifold (Plug lead type) VV3Q12-05························1 set Manifold base part no.
- Page 14 VQ100 Series 3 Port Solenoid Valve Plug Lead Unit Manifold (VV3Q12) Manual 4-M5 override P, E port Round head combination screw M1.7 x 14 ø Mounting hole V100 P = 10 11.5 ≅300 43.3 U side D side (Lead wire length) For latching and AC Type L Type M...
- Page 15 VQ100 Series Manifold Option Plug Assembly VV3Q11 for Manifold with Multi-connector <D side end plate assembly> VVQ100-12A- D side end plate assembly part no. VVQ100-3A- „ — Option Cover color: Ivory Standard type DIN rail mounting <U side end plate assembly> U side end plate assembly part no.
