Metal Seal / Rubber Seal
3 Port Solenoid Valve
VQZ100/200/300

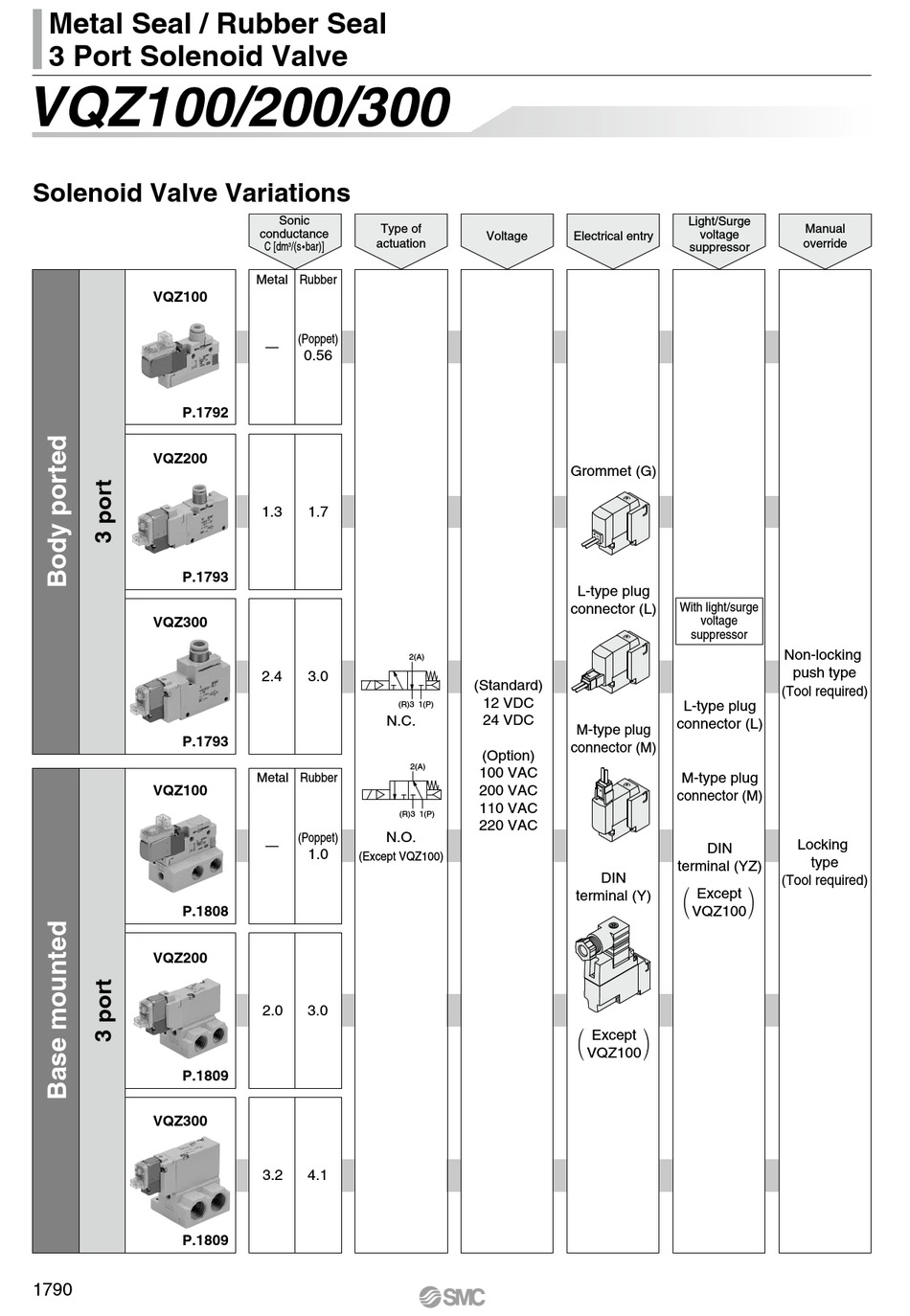

Solenoid Valve Variations
VQZ100
P.1792
VQZ200
P.1793
VQZ300
P.1793
VQZ100
P.1808
VQZ200
P.1809
VQZ300
P.1809
1790
Sonic
Type of
conductance
actuation
C [dm /(sbar)]
3
Metal Rubber
(Poppet)
—
0.56
1.3 1.7
2(A)
2.4 3.0
(R)3 1(P)
N.C.
2(A)
Metal Rubber
(R)3 1(P)
N.O.
(Poppet)
—
1.0
(Except VQZ100)
2.0 3.0
3.2 4.1
Voltage Electrical entry
Grommet (G)
L-type plug
connector (L)
(Standard)
12 VDC
24 VDC
M-type plug
connector (M)
(Option)
100 VAC
200 VAC
110 VAC
220 VAC
DIN
terminal (Y)
Except
VQZ100
Light/Surge
Manual
voltage
override
suppressor
With light/surge
voltage
suppressor
Non-locking
push type
(Tool required)
L-type plug
connector (L)
M-type plug
connector (M)
Locking
DIN
type
terminal (YZ)
(Tool required)
Except
VQZ100
