VQZ100/200/300
Series
VQZ300

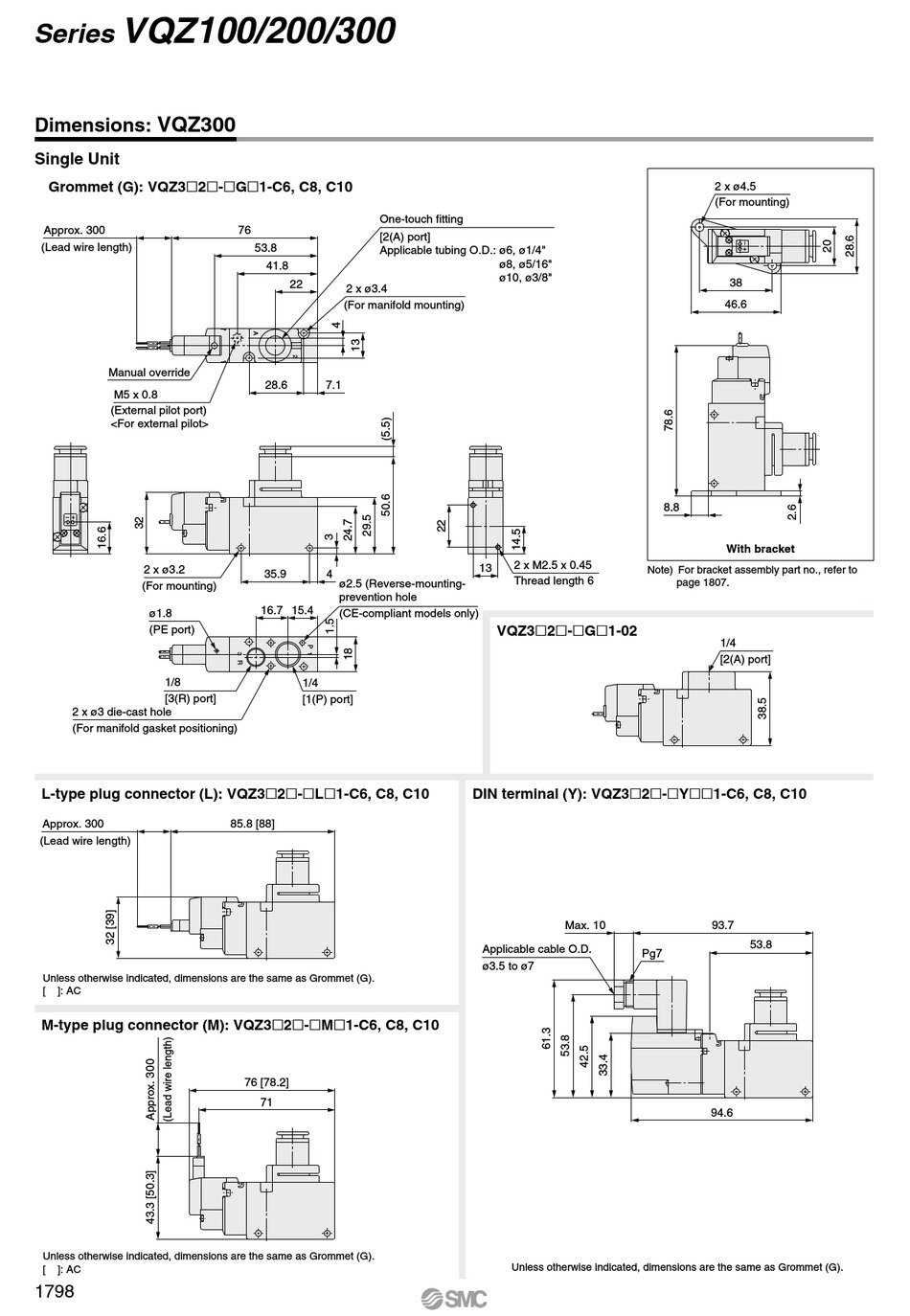

Dimensions:
Single Unit
Grommet (G): VQZ32-G1-C6, C8, C10
Approx. 300
(Lead wire length)
Manual override
M5 x 0.8
(External pilot port)
<For external pilot>
– +
2 x ø3.2
(For mounting)
ø1.8
(PE port)
1/8
[3(R) port]
2 x ø3 die-cast hole
(For manifold gasket positioning)
L-type plug connector (L): VQZ32-L1-C6, C8, C10
Approx. 300
(Lead wire length)
Unless otherwise indicated, dimensions are the same as Grommet (G).
[ ]: AC
M-type plug connector (M): VQZ32-M1-C6, C8, C10
Unless otherwise indicated, dimensions are the same as Grommet (G).
[ ]: AC
1798
One-touch fitting
76
[2(A) port]
53.8
Applicable tubing O.D.: ø6, ø1/4"
41.8
22
2 x ø3.4
(For manifold mounting)
28.6 7.1
35.9 4
ø2.5 (Reverse-mounting-
prevention hole
16.7 15.4
(CE-compliant models only)
1/4
[1(P) port]
85.8 [88]
76 [78.2]
71
ø8, ø5/16"
ø10, ø3/8"
2 x M2.5 x 0.45
13
Thread length 6
VQZ32-G1-02
DIN terminal (Y): VQZ32-Y1-C6, C8, C10
Max. 10
Applicable cable O.D.
Pg7
ø3.5 to ø7
Unless otherwise indicated, dimensions are the same as Grommet (G).
2 x ø4.5
(For mounting)
38
46.6
8.8
With bracket
Note) For bracket assembly part no., refer to
page 1807.
1/4
[2(A) port]
93.7
53.8
94.6
