SMC Networks VQZ100 Series Manual page 8

VQZ100/200/300
Series
VQZ100

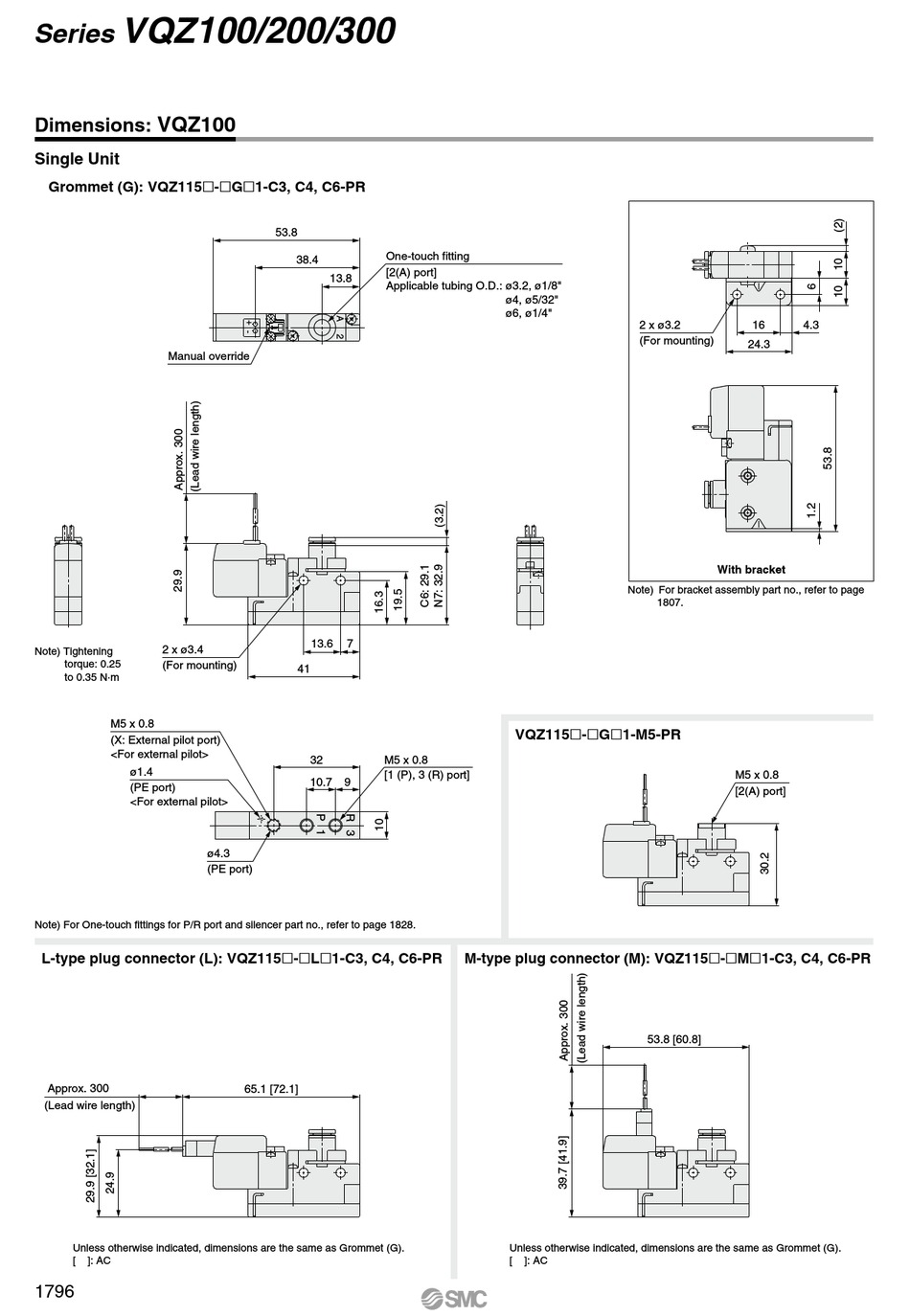

Dimensions:
Single Unit
Grommet (G): VQZ115-G1-C3, C4, C6-PR
Manual override
2 x ø3.4
Note) Tightening
torque: 0.25 (For mounting)
to 0.35 N·m
M5 x 0.8
(X: External pilot port)
<For external pilot>
ø1.4
(PE port)
<For external pilot>
Note) For One-touch fittings for P/R port and silencer part no., refer to page 1828.
L-type plug connector (L): VQZ115-L1-C3, C4, C6-PR
Approx. 300
(Lead wire length)
Unless otherwise indicated, dimensions are the same as Grommet (G).
[ ]: AC
1796
53.8
38.4
13.8
13.6 7
41
32
10.7 9
ø4.3
(PE port)
65.1 [72.1]
One-touch fitting
[2(A) port]
Applicable tubing O.D.: ø3.2, ø1/8"
ø4, ø5/32"
ø6, ø1/4"
VQZ115-G1-M5-PR
M5 x 0.8
[1 (P), 3 (R) port]
M-type plug connector (M): VQZ115-M1-C3, C4, C6-PR
Unless otherwise indicated, dimensions are the same as Grommet (G).
[ ]: AC
2 x ø3.2 16
(For mounting)
24.3
With bracket
Note) For bracket assembly part no., refer to page
1807.
M5 x 0.8
[2(A) port]
53.8 [60.8]
4.3
