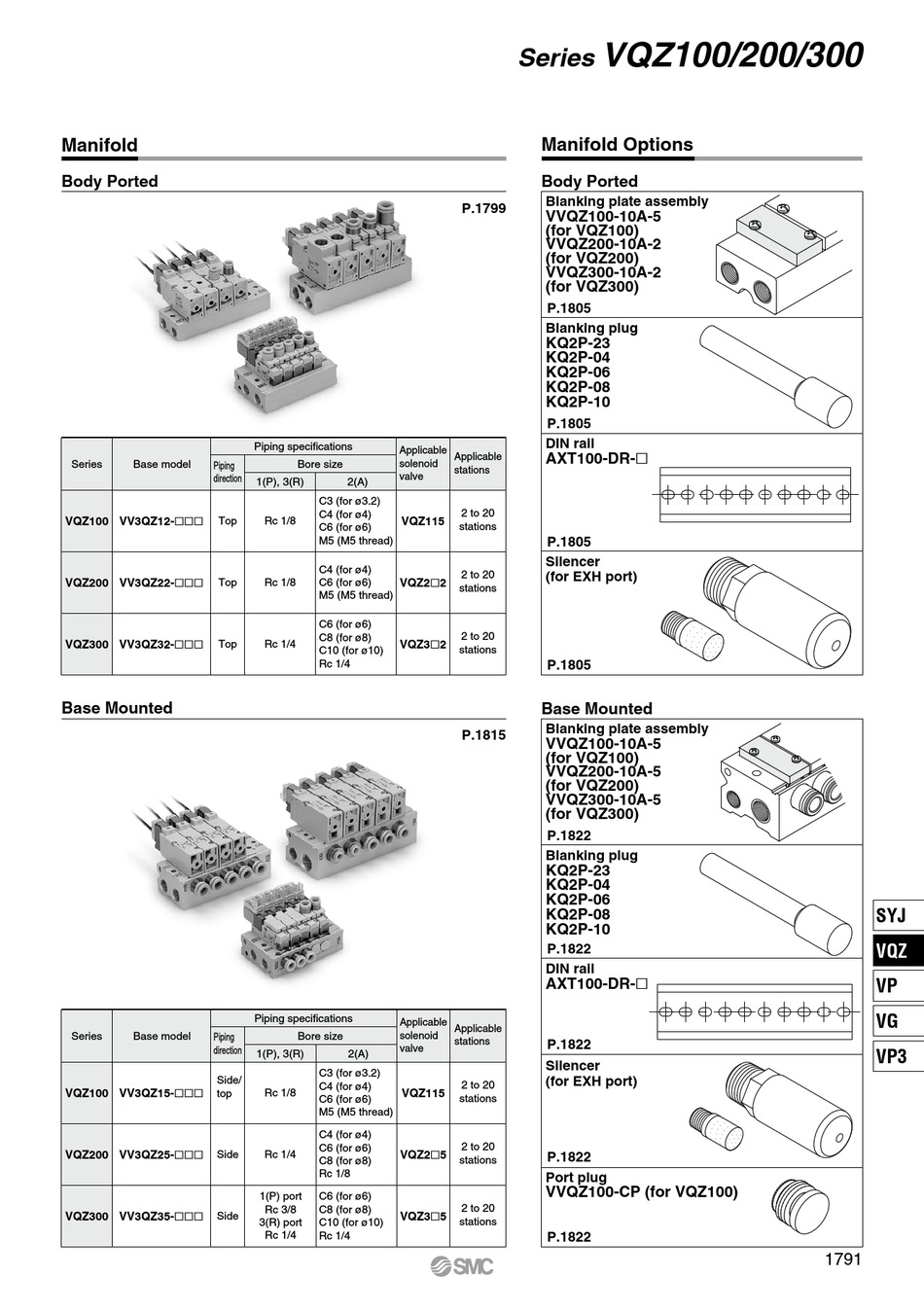

SMC Networks VQZ100 Series Manual page 3

Manifold
Body Ported
Series Base model
Piping
direction
VQZ100 VV3QZ12-
Top
VQZ200 VV3QZ22- Top
VQZ300 VV3QZ32-
Top
Base Mounted
Series Base model
Piping
direction
Side/
VQZ100 VV3QZ15-
top
VQZ200 VV3QZ25- Side
VQZ300 VV3QZ35-
Side
Piping specifications
Applicable
solenoid
Bore size
valve
1(P), 3(R) 2(A)
C3 (for ø3.2)
C4 (for ø4)
VQZ115
Rc 1/8
C6 (for ø6)
M5 (M5 thread)
C4 (for ø4)
Rc 1/8 C6 (for ø6) VQZ22
M5 (M5 thread)
C6 (for ø6)
C8 (for ø8)
VQZ32
Rc 1/4
C10 (for ø10)
Rc 1/4
Piping specifications
Applicable
solenoid
Bore size
valve
1(P), 3(R) 2(A)
C3 (for ø3.2)
C4 (for ø4)
VQZ115
Rc 1/8
C6 (for ø6)
M5 (M5 thread)
C4 (for ø4)
C6 (for ø6)
Rc 1/4 VQZ25
C8 (for ø8)
Rc 1/8
1(P) port C6 (for ø6)
Rc 3/8 C8 (for ø8)
VQZ35
3(R) port C10 (for ø10)
Rc 1/4
Rc 1/4
VQZ100/200/300
Series
Manifold Options
Body Ported
Blanking plate assembly
P.1799
VVQZ100-10A-5
(for VQZ100)
VVQZ200-10A-2
(for VQZ200)
VVQZ300-10A-2
(for VQZ300)
P.1805
Blanking plug
KQ2P-23
KQ2P-04
KQ2P-06
KQ2P-08
KQ2P-10
P.1805
DIN rail
AXT100-DR-
Applicable
stations
2 to 20
stations
P.1805
Silencer
2 to 20 (for EXH port)
stations
2 to 20
stations
P.1805
Base Mounted
Blanking plate assembly
P.1815
VVQZ100-10A-5
(for VQZ100)
VVQZ200-10A-5
(for VQZ200)
VVQZ300-10A-5
(for VQZ300)
P.1822
Blanking plug
KQ2P-23
KQ2P-04
KQ2P-06
KQ2P-08
KQ2P-10
P.1822
DIN rail
AXT100-DR-
Applicable
stations
P.1822
Silencer
(for EXH port)
2 to 20
stations
2 to 20
P.1822
stations
Port plug
VVQZ100-CP (for VQZ100)
2 to 20
stations
P.1822
SYJ
VQZ VQZ
VP
VG
VP3
1791
