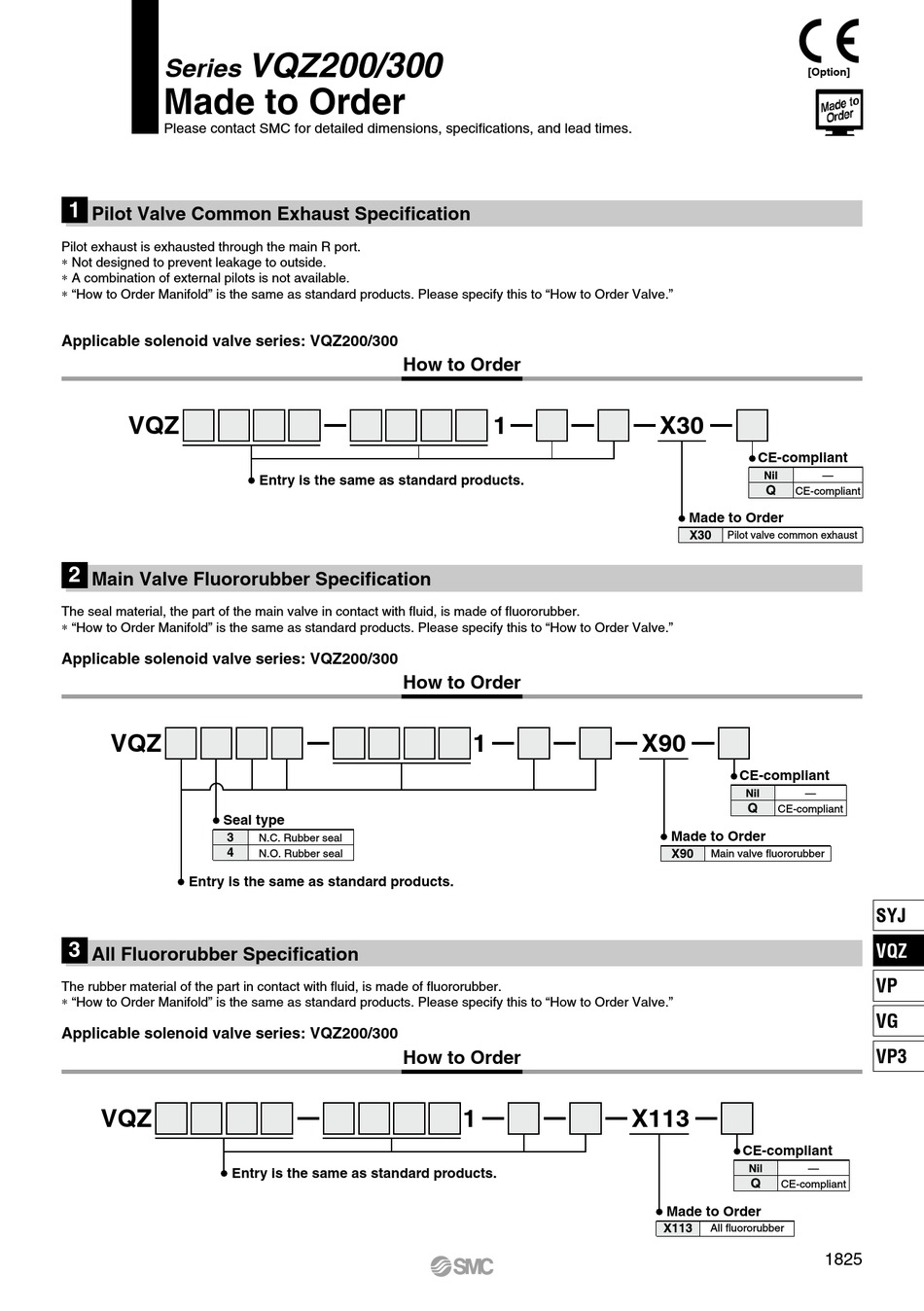

Series
Made to Order
Please contact SMC for detailed dimensions, specifications, and lead times.
1
Pilot Valve Common Exhaust Specification
Pilot exhaust is exhausted through the main R port.
∗ Not designed to prevent leakage to outside.
∗ A combination of external pilots is not available.
∗ "How to Order Manifold" is the same as standard products. Please specify this to "How to Order Valve."
Applicable solenoid valve series: VQZ200/300
VQZ
2
Main Valve Fluororubber Specification
The seal material, the part of the main valve in contact with fluid, is made of fluororubber.
∗ "How to Order Manifold" is the same as standard products. Please specify this to "How to Order Valve."
Applicable solenoid valve series: VQZ200/300
VQZ
Seal type
3
4
Entry is the same as standard products.
3
All Fluororubber Specification
The rubber material of the part in contact with fluid, is made of fluororubber.
∗ "How to Order Manifold" is the same as standard products. Please specify this to "How to Order Valve."
Applicable solenoid valve series: VQZ200/300
VQZ
Entry is the same as standard products.
VQZ200/300
How to Order
Entry is the same as standard products.
How to Order
N.C. Rubber seal
N.O. Rubber seal
How to Order
1
1
1 X113
[Option]
X30
CE-compliant
Nil
Q
CE-compliant
Made to Order
X30
Pilot valve common exhaust
X90
CE-compliant
Nil —
Q
CE-compliant
Made to Order
X90
Main valve fluororubber
CE-compliant
Nil
—
Q
CE-compliant
Made to Order
X113
All fluororubber
—
SYJ
VQZ VQZ
VP
VG
VP3
1825
