Ultra96-PYNQ Documentation, Release v2.4

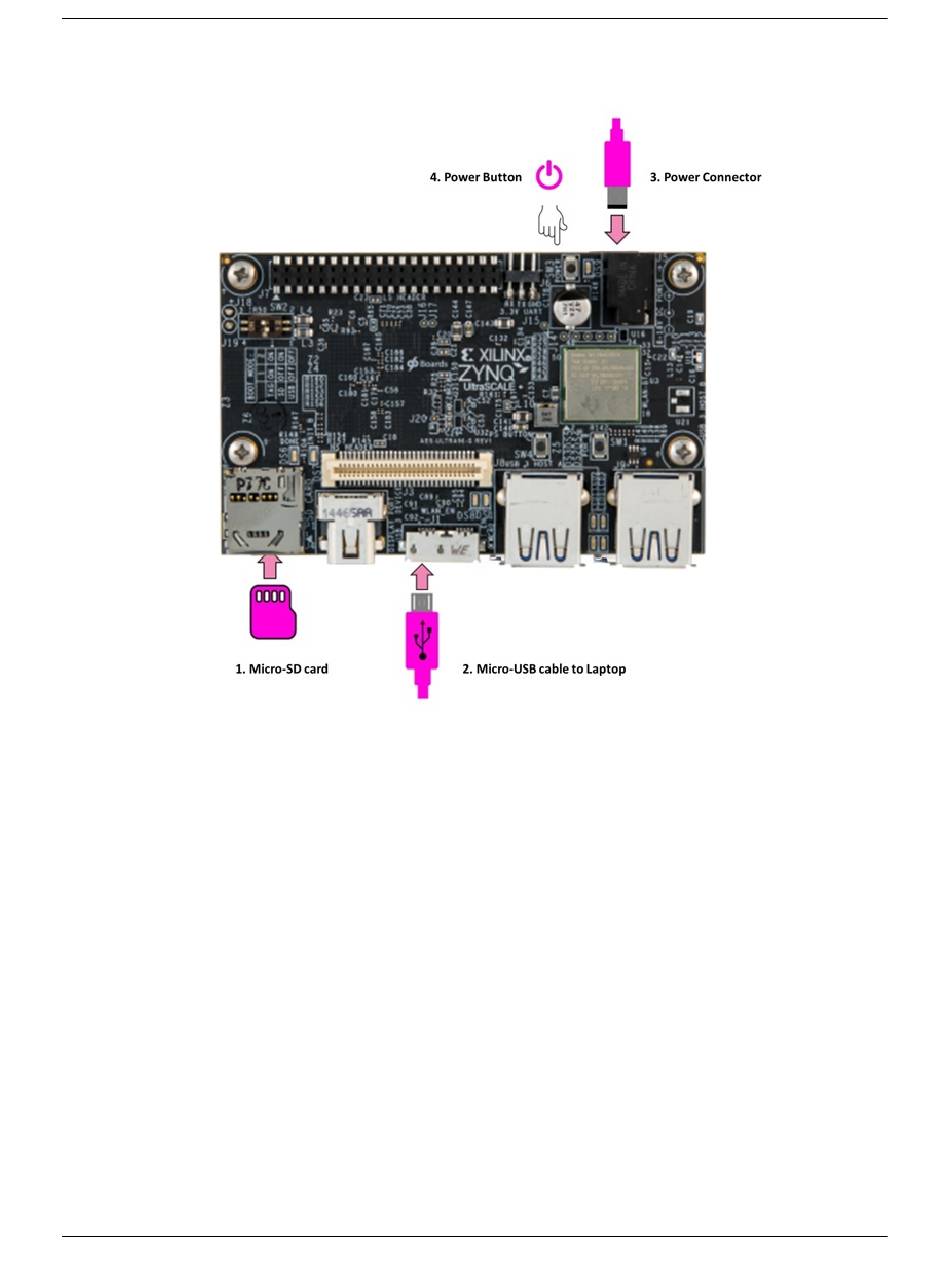

1.2.1 USB cable board setup
1. Insert the Micro-SD card
2. Connect the Mirco USB cable from your PC to the board
3. Connect the power supply to the board
4. Press the SW3 power button to power on the board
1.2.2 Turning on the Ultra96
The green power LED (beside the power switch), and the red Init LED (near the SD Card socket) will turn on when
the power button is pressed. After a few seconds, the red LED will switch off, and the green Done LED will switch
on. The board will be ready after the blue and orange LEDs switch on.
1.2.3 Connecting to the Ultra96
USB cable
When connected to a computer using the USB cable, the board can act as an Ethernet device ("Ethernet Gadget").
This is the recommended way to connect to the board from your computer, and allows you use a browser on your host
computer.
4 Chapter 1. Getting Started
