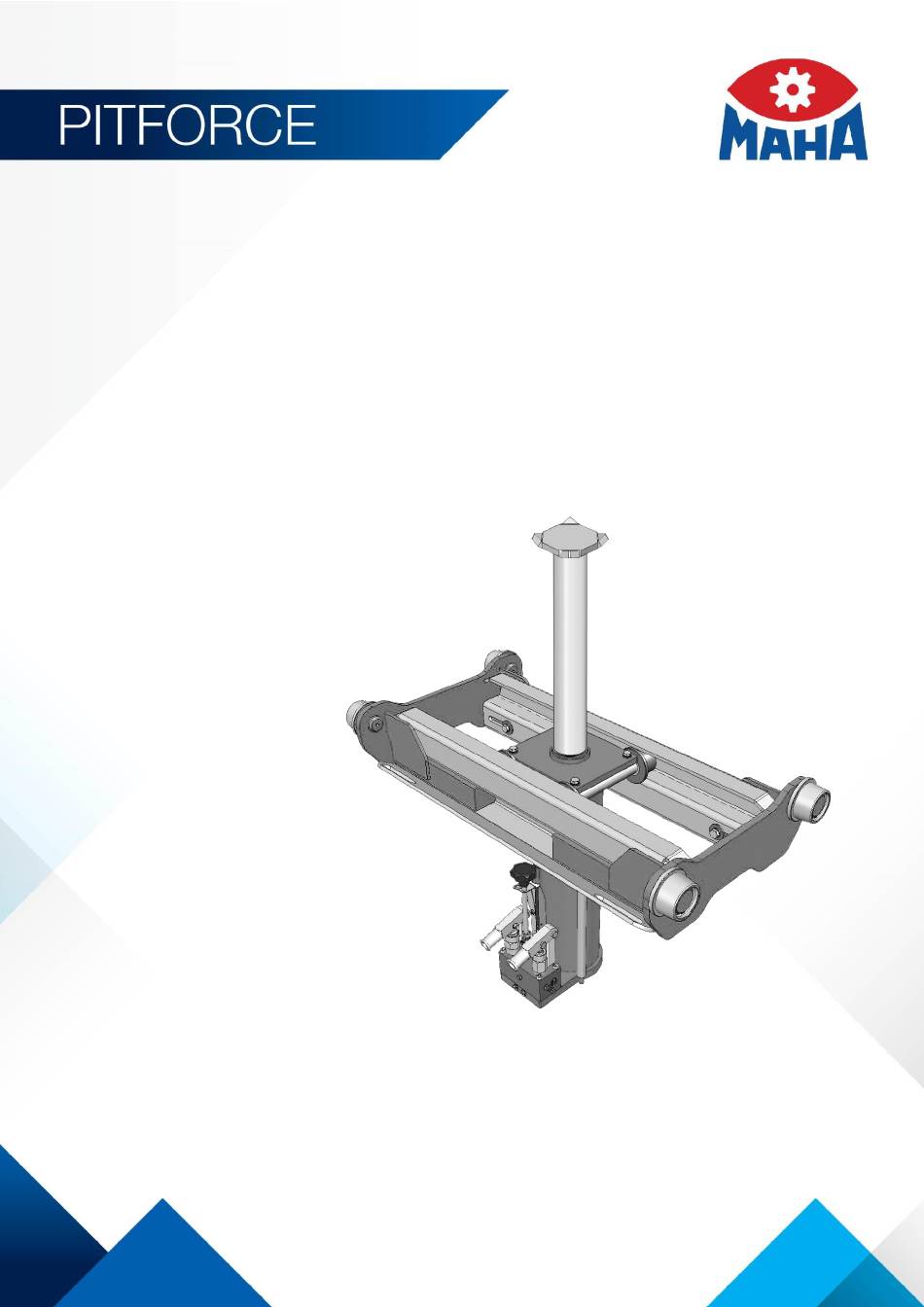

MGH
Pit Jack
Original Operating Instructions
BA550401-en
MGH 5.5/75
MGH 5.5/45
MGH 11.0/75
MGH 11.0/45
MGH 14.5/75
MGH 14.5/45
MGH 16.5/75
MGH 20.0/75
MGH 30.0/75
MGH 5.5 PD
MGH 14.5 PD
Fehler! Verwenden Sie die Registerkarte 'Start', um Name dem Text zuzuweisen, der hier angezeigt werden soll.Fehler! Verwenden Sie die
Registerkarte 'Start', um Name dem Text zuzuweisen, der hier angezeigt werden soll.Fehler! Verwenden Sie die Registerkarte 'Start', um
Name dem Text zuzuweisen, der hier angezeigt werden soll.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGH Series and is the answer not in the manual?

Questions and answers

Related Manuals for MAHA MGH Series

Summary of Contents for MAHA MGH Series

  • Page 1 Pit Jack Original Operating Instructions BA550401-en MGH 5.5/75 MGH 5.5/45 MGH 11.0/75 MGH 11.0/45 MGH 14.5/75 MGH 14.5/45 MGH 16.5/75 MGH 20.0/75 MGH 30.0/75 MGH 5.5 PD MGH 14.5 PD Fehler! Verwenden Sie die Registerkarte 'Start', um Name dem Text zuzuweisen, der hier angezeigt werden soll.Fehler! Verwenden Sie die Registerkarte 'Start', um Name dem Text zuzuweisen, der hier angezeigt werden soll.Fehler! Verwenden Sie die Registerkarte 'Start', um Name dem Text zuzuweisen, der hier angezeigt werden soll.
  • Page 2 BA550401-en 2020-02-04 © MAHA Maschinenbau Haldenwang GmbH & Co. KG The reproduction, distribution and utilization of this document as well as the communication of its con- tents to others without explicit authorization is prohibited. Offenders will be held liable for the payment of damages.

  • Page 3: Table Of Contents

    Contents Safety ..........................5 Symbols and Signal Words ..................... 5 1.1.1 Personal Injury ........................5 1.1.2 Property Damage ........................5 1.1.3 Information ..........................5 Intended Use .......................... 6 Inappropriate Use ........................6 Requirements on Operating and Service Personnel .............. 6 Safety Instructions for Operation ..................
  • Page 4 Contents of the Declaration of Conformity ..............34 BA550401-en...

  • Page 5: Safety

    Safety Thoroughly read this manual before operating the equipment and comply with the instructions. Always display the manual in a conspicuous location. Personal injury and property damage incurred due to non-compliance with these safety instructions are not covered by the product liability regulations. Symbols and Signal Words 1.1.1 Personal Injury...

  • Page 6: Intended Use

    Intended Use  The lift is intended for use in automotive workshops with passenger cars, commer- cial vehicles, buses, trailers and agricultural vehicles.  Use in potentially explosive areas and outdoors is prohibited. Use in wet or flam- mable areas is only permitted with the express written permission of the manufac- turer.

  • Page 7: Safety Instructions For Operation

    Safety Instructions for Operation WARNING  All loose parts within the package must be safeguarded by trained personnel and work plans must be adhered to.  Observe transport guidelines. The lifting points are defined and indicated on the packaging.  Work plans for packaging, suitable transport equipment and lifting accessories must be available and used during final assembly.
  • Page 8 means (DIN EN 1494).  The pit jack must always be moved using both hands. If one person is unable to pro- vide the manual force required, another person should be called upon.  Operators must pay attention to all movements of the pit jack so that they neither endanger themselves or others.

  • Page 9: Safety Instructions For Handling Hydraulic Fluid

    Safety Instructions for Handling Hydraulic Fluid CAUTION  Neutralize hydraulic fluid spills with binder.  Remove contaminated clothing immediately.  Inhalation: If symptoms persist, seek medical treatment.  Skin contact: Wash skin immediately with soap and water. If skin irritation persists, seek immediate medical advice.

  • Page 10: Description

    Description Design and Operating Principle These manually operated hydraulic, combined hydraulic / pneumatic or pneumatic pit jack / axle and transmission jacks are lifting devices for lifting vehicles and power trains. The pit jacks can be moved in the longitudinal and transverse direction on a chassis, the axle and transmission jack using a chassis running on the ground using rollers.

  • Page 11: Sample Nameplate

    Sample Nameplate PIT JACK Ser. No. / Date of Production: Project: Type: Load Capacity: Max. Hoisting Height: Net Weight: Transport and Storage NOTICE Check package to ensure it is complete, in accordance with the order confirmation. Report any transport damage to the carrier immediately. During loading, unloading and transport always use suitable lifting equipment, material handling equipment (e.g.

  • Page 12: Assembly Of The Carriage Version Up To 16.5 T

    Assembly of the Carriage Version up to 16.5 t Required Aids and Tools  suitable hoist  1 ratchet with nut (indoor crane, forklift truck, etc.)  1 torque wrench  2 round slings  wooden board  2 lashing straps As-delivered condition BA550401-en...
  • Page 13 Attach the pit jack with a round sling to the front lift rollers. Lift the pit jack from the pallet with the hoist and place it on level ground. Then remove the round sling. Caution: Danger of tipping! BA550401-en...
  • Page 14 Remove the transport lock and install the compressed air line. BA550401-en...
  • Page 15 Remove and store all four M12 screws in the chassis. Then attach a side piece with a round sling, pull it out with a crane and place it next to the lift. Repeat process with second side panel. BA550401-en...
  • Page 16 Slide the chassis carriers sideways onto the lift rollers (Caution: Danger of tip- ping!) and secure with lashing straps. At least one second person must be called in to support the assembly work, and if necessary other persons must also be called in.
  • Page 17 Fasten one side part with round sling, lift it by crane and insert it laterally with the square spigots into the chassis carriers as far as it will go. At least one second per- son must be called in to support the assembly work, and if necessary other per- sons must also be called in.
  • Page 18 Align the chassis with the one already mounted side part load symmetrically on the lift, i.e. the centre-of-gravity (not the centre!) should be aligned centrally above the lift. Attention: Danger of tipping! At least one second person must be called in to support the assembly work, and if necessary other persons must also be called in.
  • Page 19 Repeat step 6 with second side panel. After inserting the second side panel, repo- sition the chassis centrally on the lift. At least one second person must be called in to support the assembly work, and if necessary other persons must also be called in.
  • Page 20 Now align the lift centrally in the chassis and secure it against slipping. Two lashing straps are recommended, which are guided through the handle openings in the carriers and enclose the lift in opposite directions. At least one second per- son must be called in to support the assembly work, and if necessary other per- sons must also be called in.
  • Page 21 Attach the hoist diagonally to two jack rollers with a round sling. Then lift the jack incl. chassis by crane and lower it centrally into the pit. The side panels must be pushed in as far as they will go as described in steps 6 and 8.
  • Page 22 Align the jack in the L-profile or in the U-profile depending on the installation situation. If necessary, the chassis can be tilted for this purpose if the securing described in step 9 has been carried out correctly using lashing straps. BA550401-en...
  • Page 23 Loosen the M12 screws on one side panel until the washer can be turned freely. Now pull out the side panel until the collars of the chassis rollers are in contact with the pit profile. Repeat the process with the second side panel. Make sure that both side pa- nels are extended to the same extent so that the carriers are positioned sym- metrically in the middle between the side panels.
  • Page 24 Tighten the M12 screws on both side panels to a tightening torque of 85 ±5 Nm. Check the central alignment of the chassis. Remove the round slings and push the jack through the entire working pit. At the widest point of the working pit, the clearance between the roller collar and the pit profile may be 5 mm on both sides.

  • Page 25: Assembly Of The Carriage Version Above 20 T

    Assembly of the Carriage Version above 20 t The carriages for loads above 20 t are welded to size, i.e. no side panels can be moved or carriers removed. Observe the assembly and disassembly procedure described in section “Assembly of the Carriage Version up to 16.5 t”.
  • Page 26 c. Use a suitable hoist to lift the carriage and lower it above the lift until the head plate is approx. 90 mm above the running surface of the carriage. Then mount the jack axles incl. rollers (see illustration). Set the tightening torque to 50 ±5 Nm. d.

  • Page 27: Operation

    Operation Controls Release spindle Rapid lift control (automatic via remote control) Rapid lift control (hand operated) Load lift control (automatic via remote control) Load lift control (hand operated) BA550401-en...

  • Page 28: Raising And Lowering

    Raising and Lowering Speed lift without load By activating the automatic or manual speed control (B or C) the ram moves up to engage the load (axle, gearbox). Depending on the air pressure and the lift achieved, the ram rises a little further after releasing the button. Lifting the load The load is lifted by activating the automatic or manual / foot operated lifting control (D or E).

  • Page 29: General Operating Instructions For Lifting Accessories

    General Operating Instructions for Lifting Accessories WARNING  Support tubes must not be extended. Risk of tilting!  Danger of crushing at the edge of the pit and support bridge!  The support system shall only be removed if the vehicle is in a secure stable posi- tion.

  • Page 30: Maintenance

    Maintenance Annual Inspection  The maintenance interval prescribed by the manufacturer is 12 (twelve) months. This maintenance interval refers to normal workshop usage. If the equipment is used more frequently or under severe operating conditions (e.g. outdoors), the in- terval must be reduced accordingly. ...

  • Page 31: Maintenance By The Operator

    Maintenance by the Operator  The pit jack must be extended to its full height at least 1 x per week and pumped through a few times with the release spindle closed. This automatically bleeds air from the system and any accumulated leaked oil is eliminated. ...

  • Page 32: Refilling With Hydraulic Fluid

    Refilling with Hydraulic Fluid Before checking and topping up the fluid level, make sure the piston rod is fully retracted and the jack is disconnected from the air and power supply. The fluid level must be between the two notches on the screwed-in dipstick. If the dipstick has only one notch, this indicates the maximum fluid level and the lower end of the dipstick the minimum fluid level.

  • Page 33: Service Lifetime

    Disposal If you want to dispose of the equipment, please contact your MAHA dealer or the following address, indicating equipment type, date of purchase and serial number: MAHA Maschinenbau Haldenwang GmbH & Co. KG...
  • Page 34 Contents of the Declaration of Conformity MAHA Maschinenbau Haldenwang GmbH & Co. KG herewith declares as a manufacturer its sole responsibility to ensure that the product named hereafter meets the safety and health regulations both in design and construction required by the EC directives stated below.
