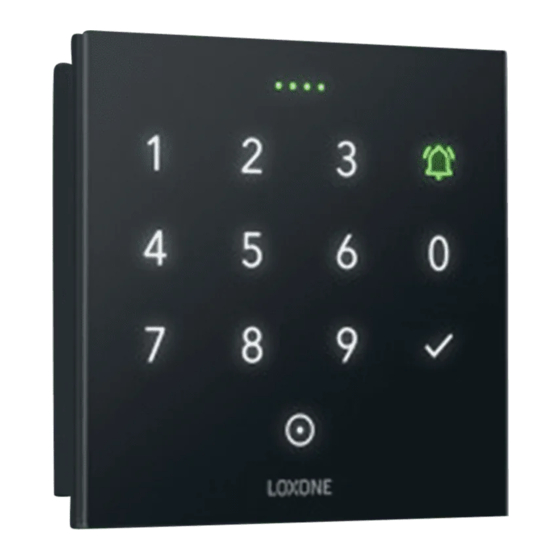

LOXONE NFC Code Touch Air Quick Manual

Technical Specifications
Power supply
9 ... 28VDC or CR2450 battery
Power consumption
typ. 0.08W, max. 0.8W (while
reading NFC)
Power loss
max. 0.8W
Battery lifetime up to 1 year
Interfaces
Loxone Air:
868MHz (SRD Band Europe),
4 channels available
915MHz (ISM Band Region 2),
10 channels available
max. Power 3.16mW
Ambient temperature
external power supply:
-20 ... 70°C / -4 ... 158°F
battery powered:
-20 ... 60°C / -4 ... 140°F
Humidity max. 95% r.H. (non condensing)
Touch points capacitive touch detection
Click feedback Yes
Access possibilities NFC, Key code
IP44
Safety rating
This device is free of main-
Maintenance & Cleaning
tenance and may only be
cleaned with a dry cloth.
Connection
Wire cross-section 0.25 ... 0.8mm² / AWG23 ... 18
5mm / 0.2"
Stipping length
-40 ... 105°C / -40 ... 221°F
Temperature resistance
Information
Contains FCC ID: COR-ZWIR4512AC1
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received,
including interference that may cause undesired operation
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com
NFC
Code
Touch
Air
Part No: 100299 (White)
Part No: 100305 (Anthracite)
