Technical Specifications
Power supply
110 ... 230VAC, 50/60Hz
Power consumption
typ. 250mW, max. 900mW
2 relays 5A each @cos φ
Outputs
= 1 (total load max. 5A)
Power loss at max load
1.2W
Min. load for end stop detection 90W
Interfaces
Loxone Air:
868MHz (SRD Band Europe),
4 channels available
915MHz (ISM Band Region 2),
10 channels available
max. Power 3.16mW
Ambient temperature
-30 ... 50°C / -22 ... 122°F
Humidity
max. 95% r.H. (non condensing)
Connections
Hirschmann STAK 3, STAS 3
IP54
Safety rating
This device is free of main-
Maintenance & Cleaning
tenance and may only be
cleaned with a dry cloth.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

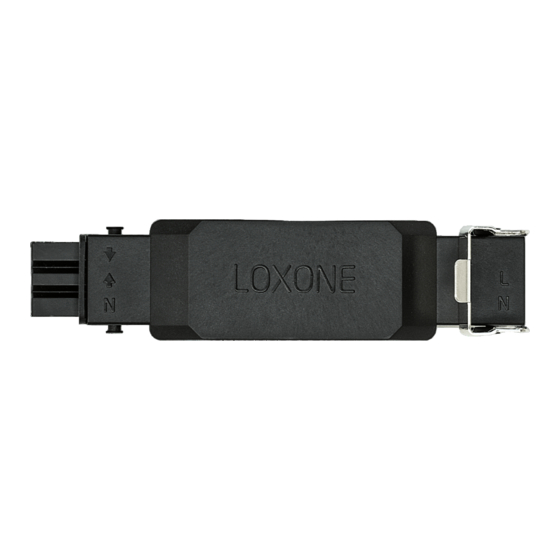

Shading
Actuator
Air
Part No: 100290
Advertisement
Related Manuals for LOXONE Shading Actuator Air
Summary of Contents for LOXONE Shading Actuator Air
- Page 1 Ambient temperature -30 ... 50°C / -22 ... 122°F Humidity max. 95% r.H. (non condensing) Connections Hirschmann STAK 3, STAS 3 Loxone Electronics GmbH IP54 Safety rating Smart Home 1 4154 Kollerschlag This device is free of main- Maintenance & Cleaning...
- Page 2 • 2 freely programmable digital relay outputs Installation Connect your drive and power to the Shading Actuator Air and secure it with the safety catch. Once powered, pair with the Miniserver in the usual way for Loxone Air Devices using Loxone Config.
