Technical Specifications
Power supply
9 ... 28VDC
Power consumption
typ. 115mW
Power loss
max. 115mW
Loxone Tree: connection with
Interfaces
Miniserver / Tree Extension
-20 ... 70°C / -4 ... 158°F
Ambient temperature
max. 95% r.H. (non condensing)
Humidity
5 touch points, capacitive
Touch points
touch detection
Yes
Click feedback
-40 ... 125°C / -40 ... 257°F
Temperature detection range
+/- 0.5°C / 0.9°F
0 ... 100% r.H. +/- 2%
Humidity detection range
(non condensing)
IP40
Safety rating
Dimensions
80x80x10mm /
3.15x3.15x0.4" (LxWxH)
This device is free of main-
Maintenance & Cleaning
tenance and may only be
cleaned with a dry cloth.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

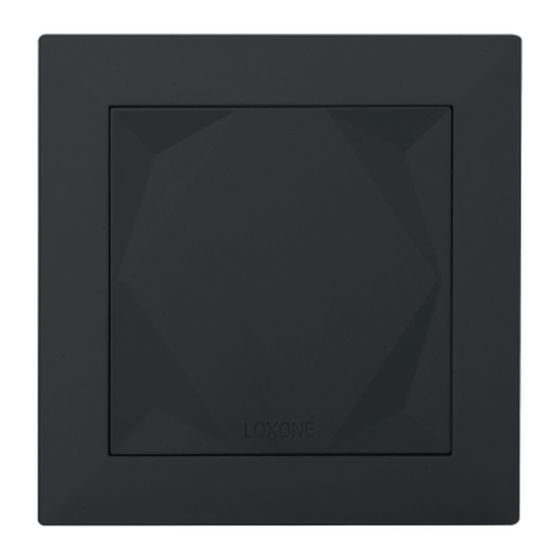

Touch
Tree
Part No: 100221 (White)
Part No: 100222 (Anthracite)
