Technical Specifications
Access Possibilities
NFC (Only when SELV/PELV
powered), Key Code
Power Supply
9...28VDC SELV/PELV or
CR2450 Lithium Battery
Power Consumption SELV/PELV
typ. 0.08W, max. 0.7W
Powered
(while reading NFC)
Power Consumption Battery
typ. 0.01W, max. 0.06W
Powered
Battery Lifetime
Approx. 1 year
Radio Frequency
868MHz (SRD Band Europe),
915MHz (ISM Band Region 2)
max. Power 3.16mW
Safety Rating
IP44
Ambient Temperature
-20...55°C / -4...131°F
Humidity
95% r.H. (non condensing)
Maintenance & Cleaning
This device is free of main-
tenance and may only be
cleaned with a dry cloth.
Connection
Wire Diameter
0.32...0.08mm² / AWG22...
AWG28
Exposed Wire Length
3.5mm / 0.14"
Push-In-Technology
To make connection, insert
wire; to remove the wire twist
and pull at the same time.
Information
Contains FCC ID: COR-ZWIR4512AC1
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received,
including interference that may cause undesired operation
No Gimmicks.
Real Smart Homes.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

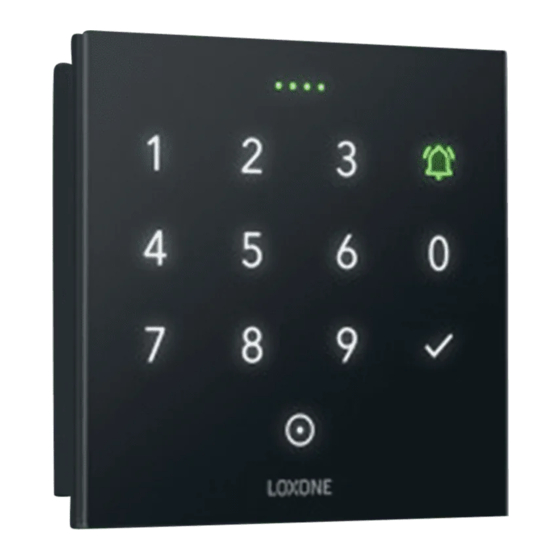

NFC Code
Touch Air
Part No.: 100299 (white)
Part No.: 100305 (anthracite)
Advertisement
Table of Contents
Related Manuals for LOXONE NFC Code Touch Air
Summary of Contents for LOXONE NFC Code Touch Air
- Page 1 Power 3.16mW Safety Rating IP44 Ambient Temperature -20...55°C / -4...131°F Humidity 95% r.H. (non condensing) Loxone Electronics GmbH Information Smart Home 1 Maintenance & Cleaning This device is free of main- 4154 Kollerschlag Contains FCC ID: COR-ZWIR4512AC1 tenance and may only be Austria This device complies with part 15 of the FCC Rules.
- Page 2 Install the mounting frame of the NFC Code Touch on the desired installation place. Power up the device and pair it with your Miniserver in Loxone Config. Alternatively you could power up the device with the provided battery, but note that due to higher need of power the authentication with NFC and the background light will not work.
