Technical Specifications
via Nano IO Air
Power supply
Power consumption
typ. 0.02W, max. 0.6W
(while reading NFC)
0.6W
Power loss
Ambient temperature
-20 ... 70°C / -4 ... 158°F
Humidity
max. 95% r.H. (non condensing)
capacitive touch detection
Touch points
Yes
Click feedback
NFC, Key code
Access possibilities
Safety Rating
IP20
Maintenance & Cleaning
This device is free of main-
tenance and may only be
cleaned with a dry cloth.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

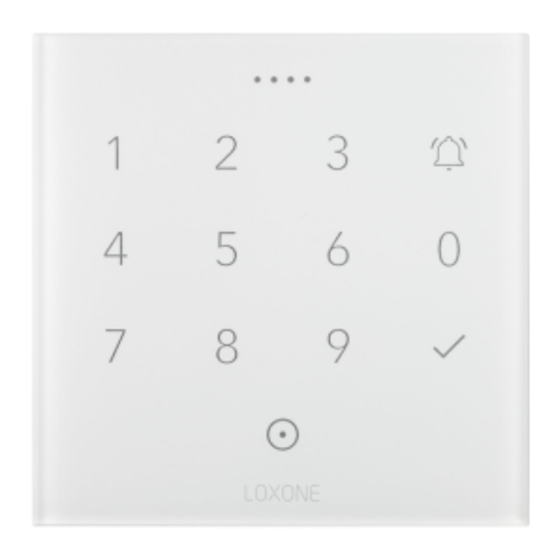

NFC
Code
Touch
for Nano
Part No: 100301 (White)
Part No: 100307 (Anthracite)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LOXONE NFC Code Touch for Nano
Summary of Contents for LOXONE NFC Code Touch for Nano
- Page 1 Maintenance & Cleaning This device is free of main- Touch tenance and may only be cleaned with a dry cloth. for Nano Loxone Electronics GmbH Smart Home 1 4154 Kollerschlag Part No: 100301 (White) Austria Part No: 100307 (Anthracite) loxone.com...
- Page 2 • Alarm-authentication Important Information For security reasons, we strongly suggest you only use encryp- ted NFC tags for access control from Loxone. Installation Attach the mounting frame of the NFC Code Touch to the Nano IO Air. Install the Nano IO Air in an appropriate installation box and fix the mounting frame to it.
