Technical Specifications
Power supply
9 ... 28VDC or 2xAAA batteries
Power consumption
typ. 0.05W, max. 0.8W (while
reading NFC)
Power loss
max. 0.8W
Battery lifetime
up to 2 years
Loxone Air:
Interfaces
868MHz (SRD Band Europe),
4 channels available,
max. Power 15.1mW e.r.p.
915MHz (ISM Band Region 2),
10 channels available, max.
Power 13.2mW internal
antenna
external power supply:
Ambient temperature
-20 ... 70°C / -4 ... 158°F
battery powered:
-20 ... 60°C / -4 ... 140°F
Humidity
max. 95% r.H. (non condensing)
Touch points
capacitive touch detection
Click feedback
Yes
Access possibilities
NFC, Key code
IP44
Safety rating
This device is free of main-
Maintenance & Cleaning
tenance and may only be
cleaned with a dry cloth.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

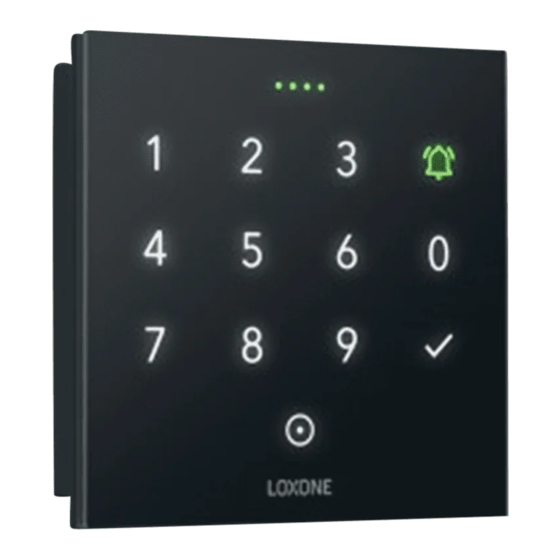

NFC
Code
Touch
Air
Part No: 100483 (White)
Part No: 100482 (Anthracite)
Advertisement
Related Manuals for LOXONE NFC Code Touch Air
Summary of Contents for LOXONE NFC Code Touch Air
- Page 1 -20 ... 60°C / -4 ... 140°F Touch Humidity max. 95% r.H. (non condensing) Touch points capacitive touch detection Click feedback Loxone Electronics GmbH Access possibilities NFC, Key code Part No: 100483 (White) Smart Home 1 Part No: 100482 (Anthracite) 4154 Kollerschlag...
- Page 2 Install the mounting frame of the NFC Code Touch on the desired installation place. Power up the device and pair it with your Miniserver in Loxone Config. Alternatively you could power up the device with the provided battery. To finish the installation attach the NFC Code Touch as shown on the mounting frame.
