Automatic Systems TL2 Quick Start Manual page 6

p. 6/11
• Lift and remove the 2 end boxes (4:3 and 4:2).
• Check the condition of the material - although it has been carefully packed, damage may have occurred during
transport.

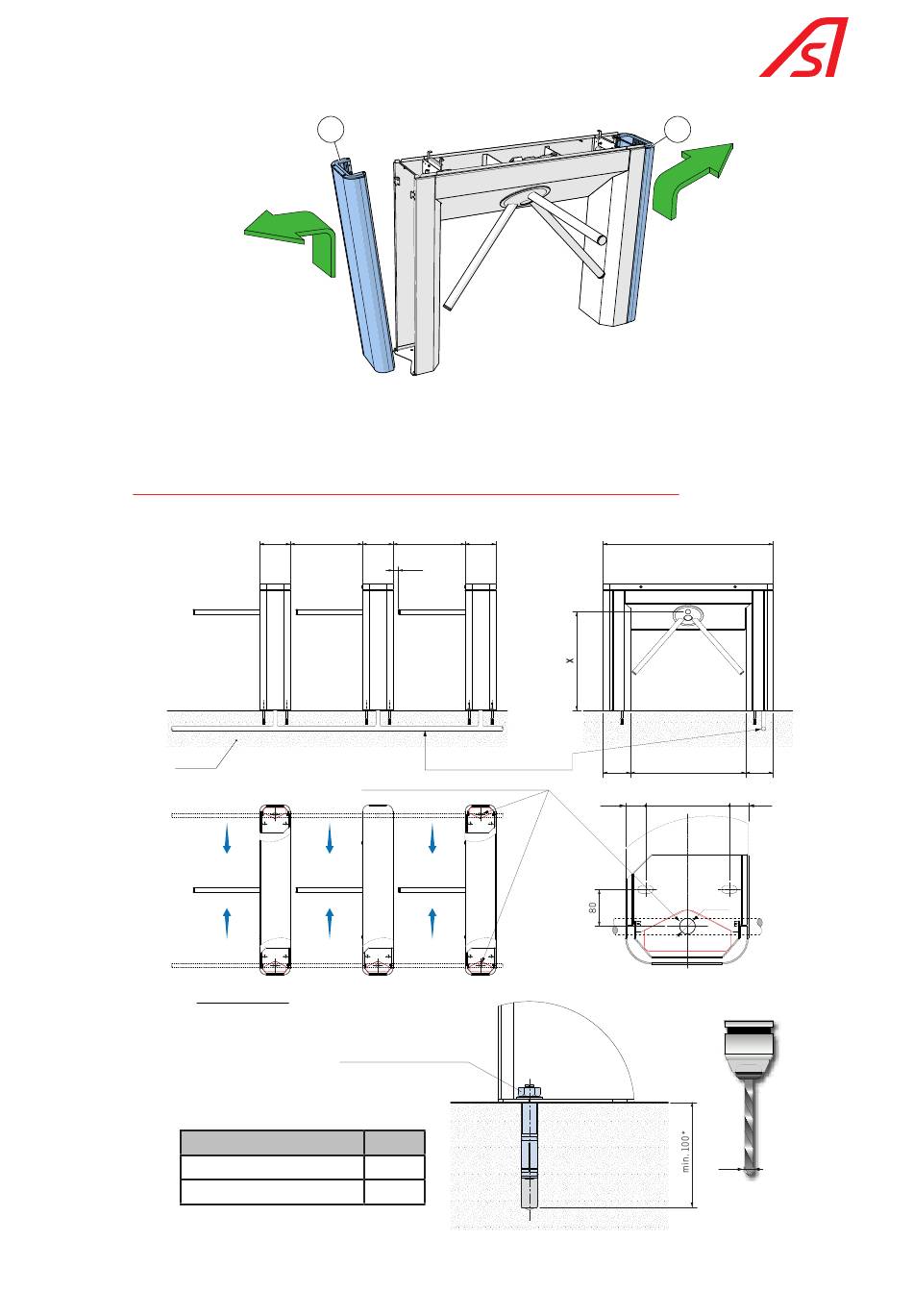

5.3. GENERAL DIMENSIONS AND INSTALLATION DRAWING
Concrete
Arm height
Dropping arm
Standard arm
* Dimensions according to standard Automatic Systems anchoring.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose
other than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic
Systems. The document is subject to change without notice.
4:3
Fig. 5 - Removing the front and rear end boxes
235 550
Power supply and connection wiring inlet, can be through right or left end box
B B
A A
Wiring to provide for:
230 V single phase power supply + ground, in 3G2.5 ²
IP CABLE (Ethernet) STP CAT.5
EXPANSIBLE ANCHOR B15/30
-/3413/000
(Suggested reference (M10))
235 550 235
40
Ø 60 mm PVC SHEATH.
B
A
X
750
755
TL2-QSG-EN-03
4:2
1300
210 880 210
37.5 160 37.5
Ø60
Ø15*
