Blue Clean AR 2N1-Q Assembly, Care And Use Instructions page 8

PREPARATION ASSEMBLY INSTRUCTIONS
6
M

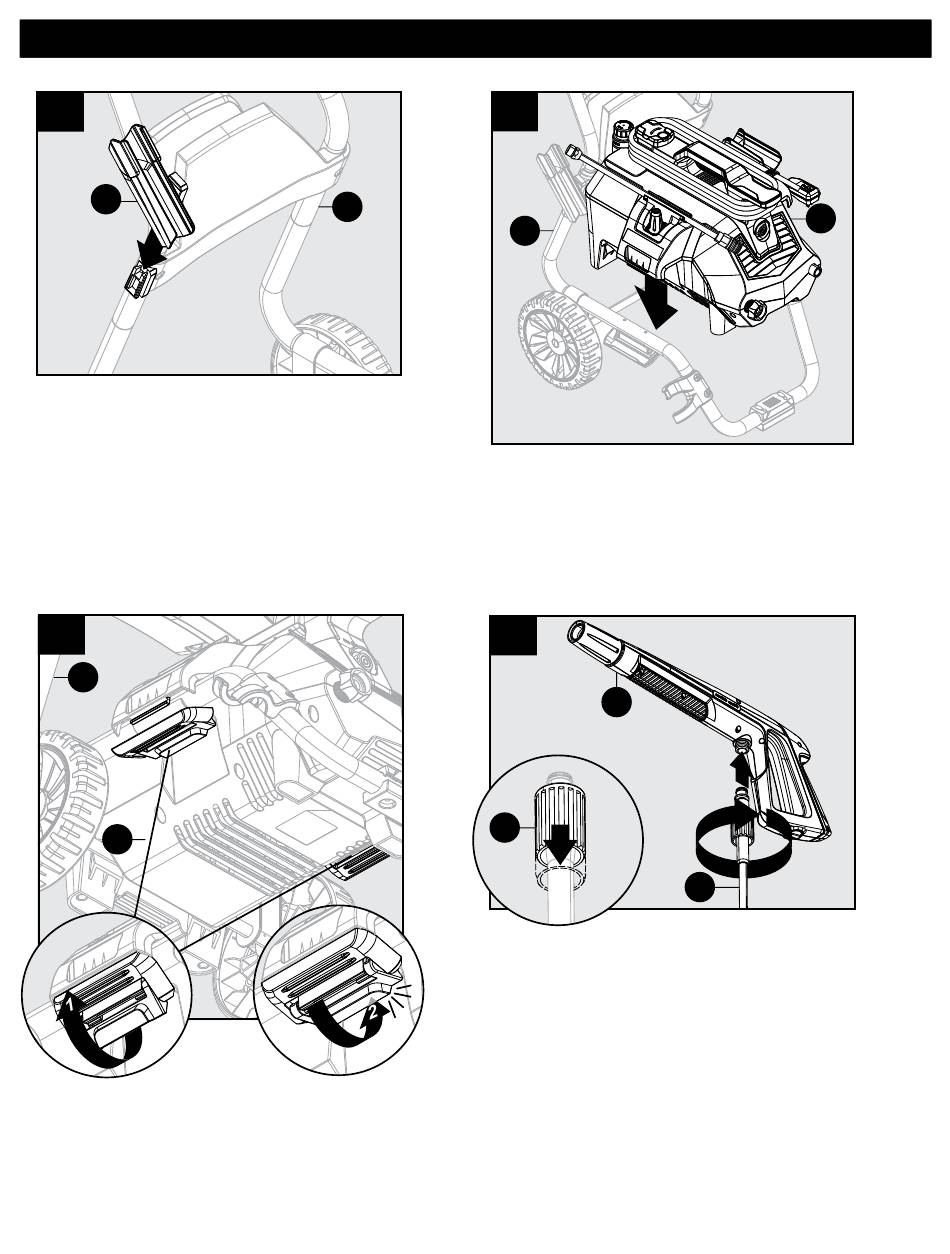

Slide spray gun holster (M) into place on the
upper handle (B).
8
G
F
Pull upward on latches that are located on
sides of lower frame (G). Once upper latch is flush with
the lower lip, push down until lower latch clicks into
place.
8
7
B
G
Place power washer unit (F) into position on the lower
frame (G).
9
N
Pull back on collar at one end of the high pressure hose
(N). Push the center post on hose firmly into the spray
gun (K), then twist the collar on to secure the connec-
tion. Confirm the hose is locked into spray gun by trying
to lightly pull it away from the gun.
