Assembly Instructions - Blue Clean AR 2N1-Q Assembly, Care And Use Instructions

PREPARATION PREPARATION
PREPARATION
Before beginning assembly of product, make sure all
parts are present. Compare parts with package contents
list and hardware contents list. If any part is missing or
damaged, DO NOT attempt to assemble the product.
Please call customer service at 1-866-235-5112.
Replacement parts will be sent no charge.
Estimated Assembly Time: 5 minutes.

ASSEMBLY INSTRUCTIONS

1
1

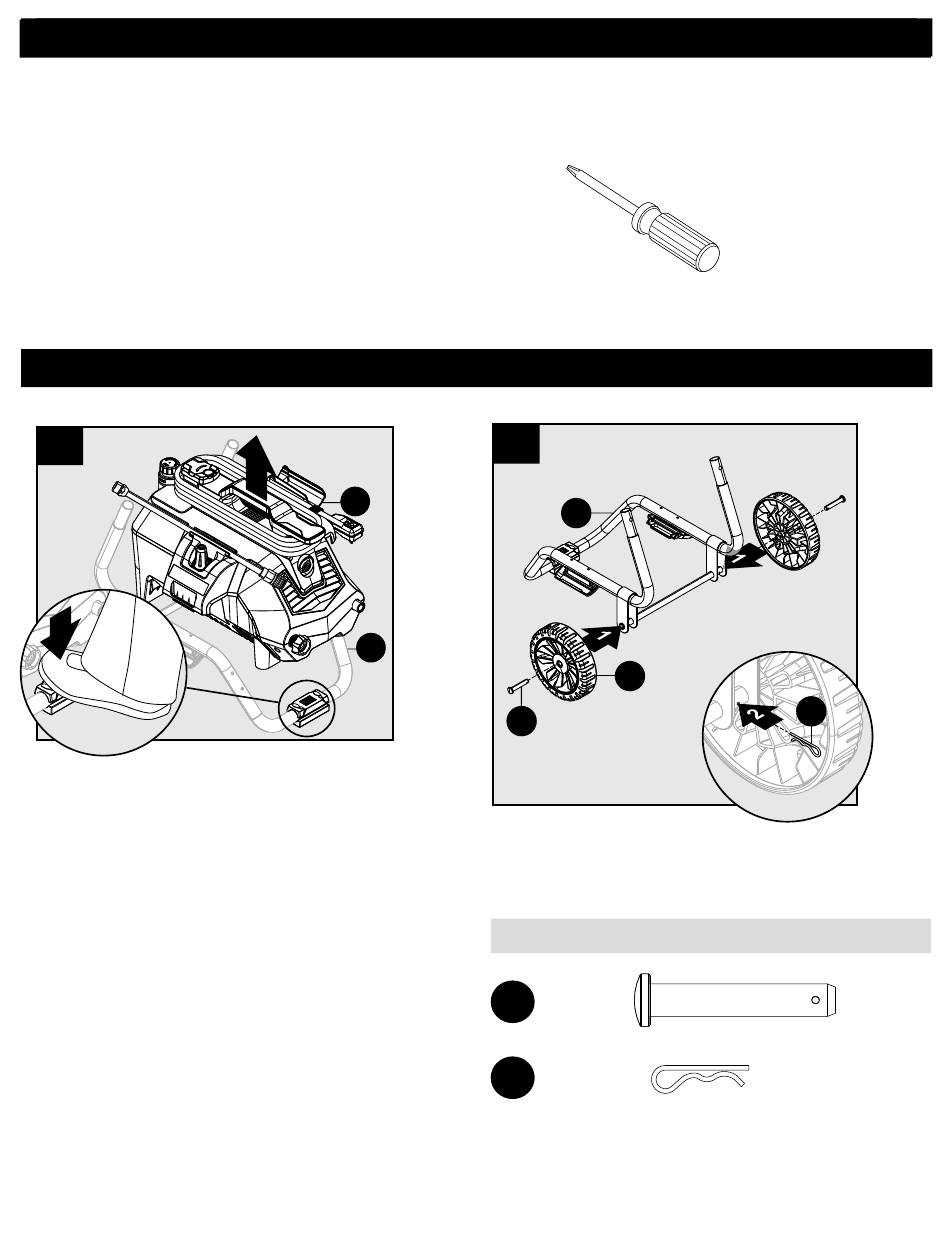

Place a foot on the pad at the front of the lower
frame (G) and then lift the power washer unit (F) off
the frame. Set pressure washer (F) to the side.
6
2
F
G
Axle Pins
AA
Qty. 2
Tools Required for Assembly (not included): Phillips
screwdriver.
2
G
AA
Frame Assembly
Install axel pins (AA) and wheels (J) to lower frame (G).
Secure with cotter pins (DD).
Hardware Used:
Axle Pins
AA
DD Cotter Pins
Screws
BB CC
Qty. 2
J
DD
Axle Pins
AA
Qty. 2
Cotter Pins
DD
Qty. 2
x 2
Screws
BB CC
Qty. 2
x 2
