  • Page 1: Instruction Manual

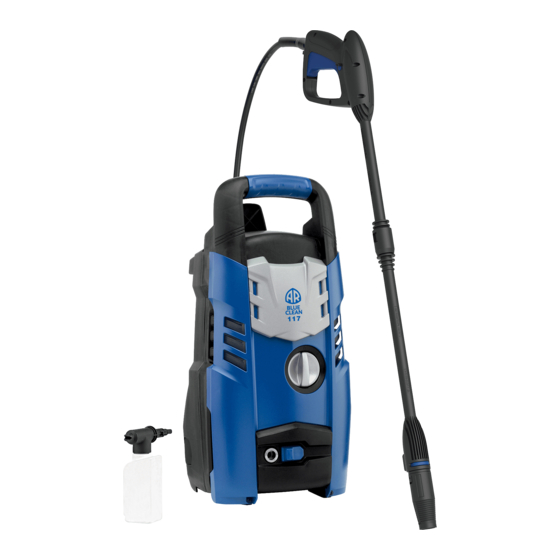

    Instruction Manual Model AR 117 Customer Help Line 1-866-235-5112 WARNING: To reduce the risk of injury, the user must read and understand the instructions before using this product. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE www.arblueclean.com AR 117 - 93364 - MQ...
  • Page 2 uick tart uide ackage ontent 1. Power washer unit 2. Manual 3. Nozzle cleaning wire (may be taped to the manual) 4. Handle 5. Hose Hook 6. Screws 7. Extension Lance 8. 15” Extention Lance 9. Detergent Bottle 10. Quick Connect (Hose Side) 11.
  • Page 3 Turn for 0° Nozzle Turn for Fan Spray 8. The adjustable spray nozzle spray pattern shape and intensity can be changed by twisting the spray adjuster at the end of the lance. Keep hands clear of the front of the lance to prevent injury.

  • Page 4: Table Of Contents

    Volts Amps Weight (lbs) Model (lbs/sq/in) (gal/per/min) AR 117 1,400 122° F imited arranty This product is under warranty to the original retail consumer against defects in material and workmanship for a period of 1 (one) year and is a complete “bumper to bumper” warranty including the spray gun, the high pressure hose and all accessories from the date of purchase.

  • Page 5: Introduction

    Congratulations on the purchase of your BLUE CLEAN POWER WASHER! Your BLUE CLEAN POWER WASHER is a power tool in every sense of the word that may be used outside your house and in. It is one of the finest most powerful home-use power washers in the marketplace today.
  • Page 6 an adult to avoid injury. Never let a Avoid contact of the pressure hose with child use the power washer. sharp objects and examine the hose Keep fingers, hands, feet and regularly. Replace if damaged. Due any part of your body clear of the to the high pressure involved, it cannot stream of high pressure water.
  • Page 7 Servicing of a mechanisms on the spray gun. Double-Insulated Appliance Never operate the power washer un less all components are properly and GROUND FAULT CIRCUIT securely connected. INTERRUPTER PROTECTION Never allow the power washer pump to run for more than one minute, after you This pressure washer is provided with a have turned off the water supply.

  • Page 8: Package Content

    ackage ontent 1. Power washer unit 2. Manual 3. Nozzle cleaning wire (may be taped to the manual) 4. Handle 5. Hose Hook 6. Screws 7. Extension Lance 8. 15” Extention Lance 9. Detergent Bottle 10. Quick Connect (Hose Side) 11.

  • Page 9: Unpacking & Assembly

    & a nPacking SSembLy • After unpacking the BLUE CLEAN POWER WASHER, lay out parts and accessories. Familiarize yourself with the parts in the package by comparing them to those listed on the “PACKAGE CONTENTS” page. • The BLUE CLEAN POWER WASHER requires some minor assembly. You’ll need a Phillips screwdriver to install the high pressure hose hook and the handle.
  • Page 10 Fig.6 Attach 20’ High pressure hose to Spray gun by pulling back on lock, and inserting hose (Fig. 6). • • To release the hose from the spray gun, press the button on the underside of the gun toward the trigger guard.
  • Page 11 Fig. 8 Fig. 9 • The adjustable spray nozzle can vary between a high pressure, 0° concentrated beam (Fig. 10) and a large fan spray with lower pressure (Fig. 11). You can also vary between the two for a desired pressure and coverage. •...
  • Page 12 Fig. 12 Garden Hose Adapter • Install the garden hose adapter (GHA) and quick connect filter. It is made up of two separate pieces. (1) A clear plastic adapter with a screen filter (about 3 inches long) and (2) a blue/black collar attachment (Fig.

  • Page 13: Operating Instructions

    Water will only flow from the garden hose when it is connected to the clear adapter. • You have now completed the assembly of your BLUE CLEAN POWER WASHER and are now ready to begin using your electric power washer. Read and observe all safety instructions. Perating nStrUctionS *!Turn on the water supply at the faucet.!* (Fig.

  • Page 14: How To Clean

    Trigger Inactive Trigger Active Fig.19 Fig.19 Fig.19 • Release the safety lock button on the spray gun by pressing the safety lock button from right to left (Fig. 19). While pointing the spray gun in a safe direction, squeeze the trigger on the spray \ gun until there is a steady stream of water, letting the water and air out of the hose.

  • Page 15: Operating Tips And Maintenance

    Perating iPS and aintenance • If you hear the motor run intermittently when the trigger is not being squeezed, that is normal. The pump is priming itself so it is ready to operate when the trigger is squeezed. Turn off the power washer if not being used after five minutes.

  • Page 16: Pump Saver

    Pump Saver is a product that protects and prolongs the life of the pump. This will keep the internal parts of the pump lubricated and protected from freezing while being stored in ALL climates. It also assists with protection from internal corrosion. The Blue Clean part # is: PW64511 (16oz. bottle). Order online at www.arblueclean.com Pump Saver Instructions Follow the previous storage instructions for your power washer.

  • Page 17: Replacement Parts

    ePLacement artS Pos. Description Part Number Qty. Spray Gun PW3082283 Detergent Bottle PW50954 Adjustable Nozzle PW4100790 Turbo Nozzle PW4100800 Extension Lance PW4100771 20’ High Pressure Hose PW3083450 Garden Hose Adapter (blue/black) PW3082731 Clear Plastic Filter PW3082130 GFCI PW4221160 Hose Hook PW3980030 Handle PW4100160...

  • Page 18: Troubleshooting And Faq

    roUbLeSHooting and Unit will not turn on. Make sure the power washer is in the “OFF” position. Plug in the electrical cord to a grounded 120 volt outlet (no electrical extension cord should be used). If the electrical cord will not plug into your outlet, your electrical outlet is not properly grounded and should not be used.
  • Page 19 oteS...
  • Page 20 Model AR 117 Cleaning and troubleshooting tips, manuals and other helpful information are available on our website. For parts and accessories for your Blue Clean Washer, visit www.arblueclean.com. Ordering is easy and all major credit cards are accepted. A.R. NORTH AMERICA, INC.
