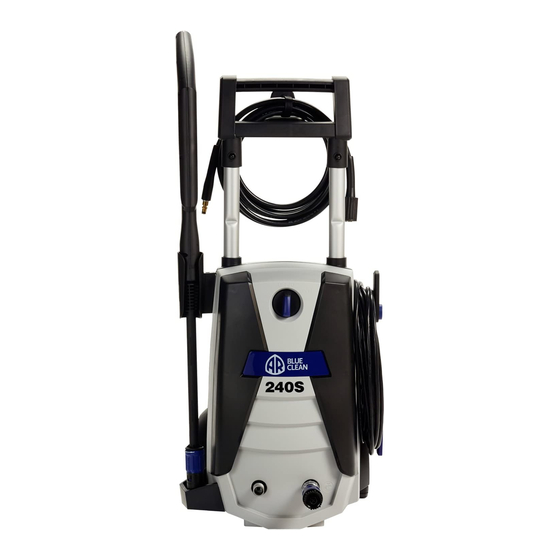

Blue Clean AR240S Instruction Manual
  1. Manuals
  2. Brands
  3. Blue Clean Manuals
  4. Pressure Washer
  5. AR240S
  6. Instruction manual

Blue Clean AR240S Instruction Manual

Hide thumbs Also See for AR240S:
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
Model AR240S
Customer Help Line
1-866-235-5112
WARNING:
To reduce the risk of injury, the user must read and understand the instructions
before using this product.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
www.arblueclean.com
AR240S-92727-DR
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR240S and is the answer not in the manual?

Questions and answers

Related Manuals for Blue Clean AR240S

Summary of Contents for Blue Clean AR240S

  • Page 1 Instruction Manual Model AR240S Customer Help Line 1-866-235-5112 WARNING: To reduce the risk of injury, the user must read and understand the instructions before using this product. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE www.arblueclean.com AR240S-92727-DR...

  • Page 2: Quick Start

    uick tart uide ackage ontent 1. Power washer unit 2. Manual 3. Nozzle cleaning wire (may be taped to the manual) 4. High pressure hose hook 5. Nozzle tray 6. Spray gun holder 7. Screws (1 for nozzle tray / 3 for HP hose hook) 8.
  • Page 3 Press to Press to Lock Unlock Trigger Trigger 7. Attach high pressure 8. Push on right side of spray gun to lock 9. Connect lances to spray gun, insert lance into spray gun, push together and hose to spray gun. trigger.

  • Page 4: Table Of Contents

    Volts Amps Weight (lbs) Model (lbs/sq/in) (gal/per/min) AR240S 1,700 122° F imited arranty This product is under warranty to the original retail consumer against defects in material and workmanship for a period of 1 (one) year and is a complete “bumper to bumper” warranty including the spray gun, the high pressure hose and all accessories from the date of purchase.

  • Page 5: Introduction

    Congratulations on the purchase of your BLUE CLEAN POWER WASHER! Your BLUE CLEAN POWER WASHER is a power tool in every sense of the word that may be used outside your house and in. It is one of the finest most powerful home-use power washers in the marketplace today.
  • Page 6 • When you press the power switch to turn off • Never disconnect the high pressure hose the power washer, water pressure may remain from the power washer while the system is in the system. To discharge the pressure, pressurized. point the spray gun in a safe direction and •...

  • Page 7: Package Content

    ackage ontent 1. Power washer unit 2. Manual 3. Nozzle cleaning wire (may be taped to the manual) 4. High pressure hose hook 5. Nozzle tray 6. Spray gun holder 7. Screws (1 for nozzle tray / 3 for HP hose hook) 8.

  • Page 8: Unpacking & Assembly

    NOTE: Some parts may or may not be already assembled. • Install the hose hook on the back of your BLUE CLEAN POWER WASHER (Fig. 1) handle. You’ll notice where the hose hook meets the back of the unit. Place the screws in the holes provided on the high pressure hose hook and screw them in.
  • Page 9 • Extending and lowering the handle (Fig. 4): Extend the handle up by pressing the center of the upper cord hook and pull handle up until it locks in place. Fig. 4 NOTE: If handle does not easily slide up, add some lubricant to help make it glide easier. Lowering the handle by pressing the center of the upper cord hook and push down on the handle until all the way down.
  • Page 10 High Pressure Hose Screw the high pressure hose (clockwise) on the left of the unit at the bottom (Fig. 5). Pull back • the collar and insert o-ring post into the water outlet far enough so the collar can thread onto the outlet threads until hand tight.
  • Page 11 Lance • While the spray gun is in the locked position, insert the high/low nozzle lance or turbo nozzle into the end of the spray gun by inserting and pushing together turning clockwise simultaneously. To remove push together and turn counter clockwise (Fig. 9). Fig.
  • Page 12 • When using the Low Pressure setting twist the nozzle head clockwise to open the fan blades all the way. IMPORTANT NOTE: When applying detergent using low pressure spray, the variable spray head must be set for the “Pencil Stream”. This is when the metal blades in front of the nozzle is wide open so the detergent spray is not constricted.

  • Page 13: Operating Instructions

    Water will only flow from the garden hose when it is connected to the clear adapter. • You have now completed the assembly of your BLUE CLEAN POWER WASHER and are now ready to begin using your electric power washer. Read and observe all safety instructions. Perating nStrUctionS *!Turn on the water supply at the faucet.!* (Fig.

  • Page 14: How To Clean

    • Unwind the power cord completely and plug the GFCI into a grounded 120 volt outlet. Press the ‘reset’ button on the GFCI box (Fig. 21). The indicator window should show a red color. This must be done each time the unit is plugged in. •...

  • Page 15: Operating Tips And Maintenance

    • The screen inside the clear adapter should be cleaned periodically. Insert a pen or pencil in small hole at the end of the adapter. The screen filter will slide out (Fig. 23). Rinse it with clean water, and then place it back in the adapter.. Fig.

  • Page 16: Storage

    • Use the high/low nozzle lance when cleaning windows. Be sure to adjust the nozzle to low spray and place the nozzle approximately four to five feet away from the window with the nozzle at forty five degree angle. Squeeze the trigger and vary the spray pattern and angle until optimum cleaning efficiency is achieved (Fig.

  • Page 17: Pump Saver

    Pump Saver is a product that protects and prolongs the life of the pump. This will keep the internal parts of the pump lubricated and protected from freezing while being stored in ALL climates. It also assists with protection from internal corrosion. The Blue Clean part # is: PW64511 (16oz. bottle). Order online at www.arblueclean.com Pump Saver Instructions Follow the previous storage instructions for your power washer.

  • Page 18: Replacement Parts

    ePLacement artS Pos. Description Part Number Qty. Detergent Tank PW4220020 Hose (QC) PW50969 Spray Gun PW50968 High/low Lance/Nozzle PW4220010 Turbo Lance/Nozzle PW50976 Garden Hose Adapter (clear plastic) PW3082130 Garden Hose Adapter (blue/black) PW3082301 GFCI Assembly PW2761401110-1 Pump Spare Part Kits Water Seals &...

  • Page 19: Troubleshooting And Faq

    roUbLeSHooting and Unit will not turn on. Make sure the power washer is in the “OFF” position. Plug in the electrical cord to a grounded 120 volt outlet (no electrical extension cord should be used). If the electrical cord will not plug into your outlet, your electrical outlet is not properly grounded and should not be used.
  • Page 20 Model AR240S Cleaning and troubleshooting tips, manuals and other helpful information are available on our website. For parts and accessories for your Blue Clean Washer, visit www.arblueclean.com. Ordering is easy and all major credit cards are accepted. A.R. NORTH AMERICA, INC.
